Extremis AMAi Manual

Powder coated version
Hide thumbs Also See for AMAi:

Advertisement

Quick Links

Download this manual
AMAi
Powder coated version

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMAi and is the answer not in the manual?

Questions and answers

Related Manuals for Extremis AMAi

Summary of Contents for Extremis AMAi

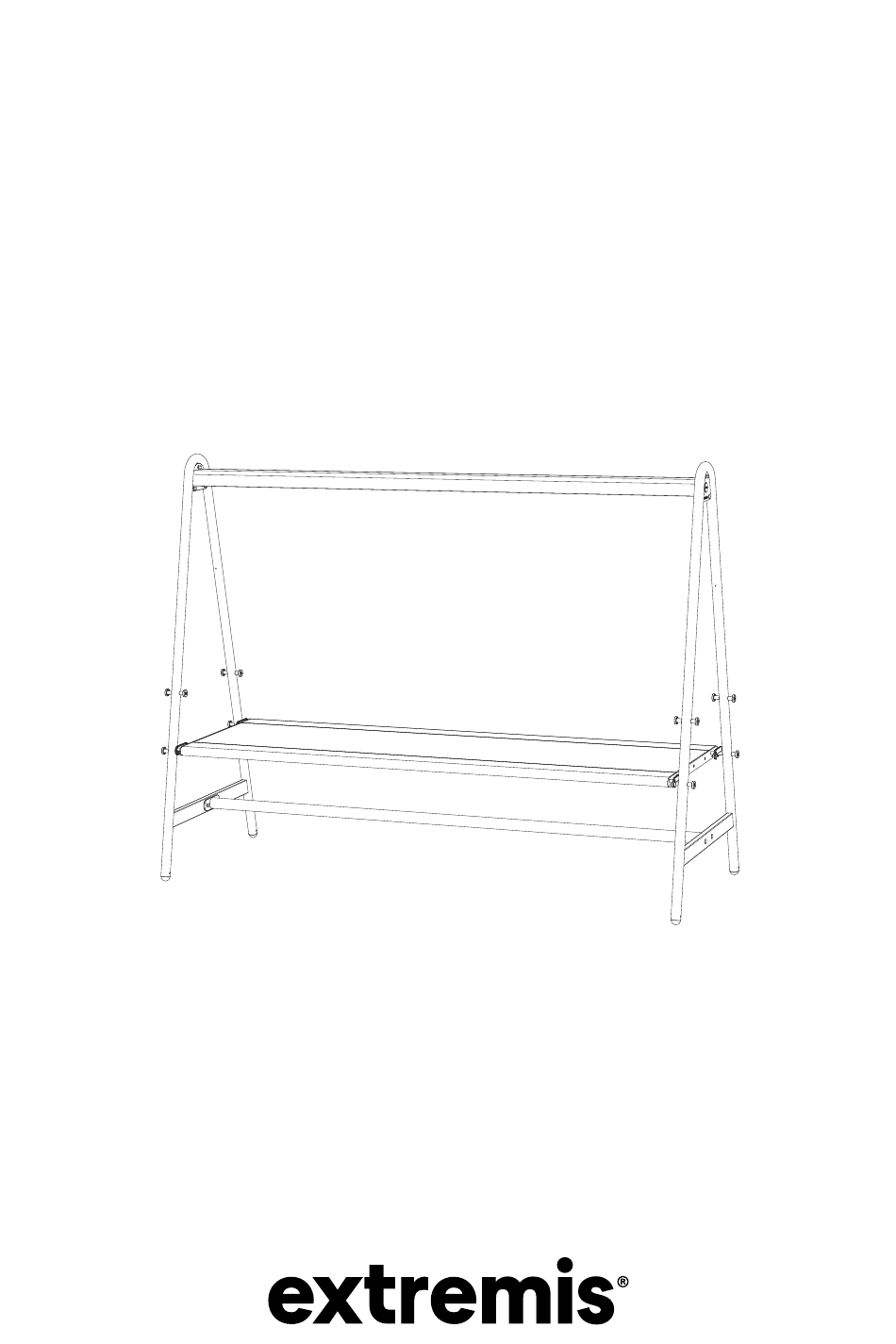

  • Page 1 AMAi Powder coated version...
  • Page 2 IMPORTANT! RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
  • Page 4 Table of contents Mounting kit  Exploded view  Assembly standard module  Assembly extension module  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
  • Page 5 Table of contents Add-on table  Assembly screenholder  Assembly tabletop fixation  Assembly leveling feet  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
  • Page 6 Table of contents Assembly floor fastening  Assembly hanging hook  Assembly LED module  Assembly multiple LED modules  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
  • Page 7 Table of contents Assembly shade & market shade  Warnings - Text instructions - Maintenance  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.

  • Page 8: Mounting Kit

    Mounting kit 2 x M10x35 4 x M10x25 2 x dop 12 x M10 12 x washer M10 4 x M10x45 AMA284 Mounting kit to fix A-frames...
  • Page 9 8 x M8x20 8 x Plastic cap 4 x Connector axis AMA201-1 Mounting kit to fix the black dots to the A-frame 8 x M10 8 x M10 3 x M10x40 2 x M10x50 AMA239-1 Mounting kit to fix the extension module...
  • Page 10 4 x spacer 4 x M6x16 4 x M6x20 AMA440 Mounting kit to fix the tabletop fixation 2 x M8x20 2 x connection plate AMA442 Mounting kit to fix the floor fastening feet 4 x Spacer 4 x M4x20 4 x M4x12 AMA435 Mounting kit to fix the screenholder...
  • Page 11 hammer nut 2 x M5x12 AMA517 Mounting kit to fix the hanging hook 6 x flat plate 4 x shade spacer 6 x M6 6 x M6x12 6 x M8x12 AMA433-1 Mounting kit to fix the shade...

  • Page 12: Exploded View

    Exploded view...
  • Page 13 Standard module - Powder coated N° 5 N° 17 20’ Use the polystyrene blocks in the packaging of the A-frames for the rest of the assembly!
  • Page 14 Logo on the outside on both sides...
  • Page 15 Do this for both A-frames, do not tighten! AMA284 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 4 x M10 4 x washer M10 4 x M10x45...
  • Page 16 AMA284 Make sure the set screw is centered to the A-frame. Do this for both A-frames. 2 x M10x35...
  • Page 17 5. Go to page 58 if you want to assemble the LED module  Go to page 67 if you want to assemble the shade or market shade  AMA284 Do this for both sides 2 x M10 2 x washer M10...
  • Page 18 Do this for both A-frames, tighten all bolts! AMA284 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 4 x M10 4 x washer M10 4 x M10x25...
  • Page 19 Do this for both A-frames AMA284 2 x M10 2 x washer M10 2 x dop...
  • Page 20 Remove the polystyrene blocks...
  • Page 21 Do this for both A-frames AMA201-1 per A-frame 4 x Connector axis...
  • Page 22 AMA201-1 per A-frame Do this for both A-frames 8 x M8x20 8 x Plastic cap...
  • Page 24 side up and pull. Always make sure to hold the tabletop at its center when moving it up and down!
  • Page 25 side up and push. Always make sure to hold the tabletop at its center when moving it up and down!
  • Page 26 Extension module - Powder coated N° 5 N° 17 35’ - ...’ Use the polystrene blocks in the packaging of the A-frames for the rest of the assembly!
  • Page 27 Logo on the outside...
  • Page 28 Do not tighten! AMA284 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 2 x M10 2 x washer M10 2 x M10x45...
  • Page 29 AMA239-1 2 x M10x50...
  • Page 30 AMA239-1 Do not tighten! 2 x M10 2 x washer M10...
  • Page 31 Logo on the outside...
  • Page 32 Do this for both sides AMA284 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 2 x M10 2 x washer M10 2 x M10x45...
  • Page 33 AMA284 AMA239-1 AMA239-1 AMA284 per center per outer A-frame A-frame Make sure the set screw is centered to the A-frame. 1 x M10x35 1 x M10x40...
  • Page 34 9. Go to page 58 if you want to assemble the LED module  Go to page 67 if you want to assemble the shade or market shade  AMA284 Do this for both sides 2 x M10 2 x washer M10...
  • Page 35 AMA284 Do this for both sides 2 x M10 2 x washer M10...
  • Page 36 11a. Do this for both outer A-frames, tighten all bolts AMA284 per outer A-frame 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 2 x M10 2 x washer M10 2 x M10x25...
  • Page 37 11b. Do this for all center A-frames AMA239-1 per center A-frame 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 4 x M10 4 x washer M10 2 x M10x40...
  • Page 38 Do this for both outer A-frames AMA284 per outer A-frame 1 x M10 1 x washer M10 1 x dop...
  • Page 39 Do this for all A-frames AMA201-1 per A-frame 4 x Connector axis...
  • Page 40 AMA201-1 per A-frame Do this for all A-frames 8 x M8x20 8 x Plastic cap...
  • Page 42 Add-on table Lowest position: use outer holes...
  • Page 43 Highest position: use inner holes...
  • Page 44 Screenholder 5’ AMA435 4 x Spacer 4 x M4x20 4 x M4x12...
  • Page 46 Tabletop fixation N° 4 10’ Tighten the bolt with spacer. Do not tighten the wing screw! AMA440 4 x spacer 4 x M6x16 4 x M6x20...
  • Page 48 Can only be combined when the tabletop is in the highest position...
  • Page 49 Tighten all wing screws...

  • Page 50: Leveling Feet

    Leveling feet N° 17 10’ Remove the standard plastic caps...
  • Page 51 Level the feet until they Fix the nut touch the floor...

  • Page 52: Floor Fastening

    Floor fastening N° 13 10’ Remove the standard plastic caps...
  • Page 53 AMA442 per A-frame 2 x connection plate...
  • Page 54 AMA442 per A-frame Do not tighten! 4 x M8x20 Put on the desired height & tighten the bolt...
  • Page 55 Use the fasteners that are most suitable for the surface...
  • Page 56 Hanging hook N° 3 5’ The position of the corners is very important Do not tighten AMA517 2 x M5 2 x M5x12...

  • Page 58: Led Module

    LED module N° 5 15’ Demount one side plate of the top profile & set aside...
  • Page 59 Make sure the LED module is facing downwards Reattach the side plate...
  • Page 60 AMA284 Face the end of the cable towards the socket you want to use. Connect the power supply to this connector 2 x M10 2 x washer M10...
  • Page 61 57 mm 57 mm Make sure the LED module is centered and insert the two small cover plates Now go back to step 5 on page 17 (standard module) Now go back to step 9 on page 34 (extension module)
  • Page 62 Connecting multiple LED modules N° 5 20’ Demount one side plate of the top profile & set aside...
  • Page 63 Make sure the LED module is facing downwards Reattach the side plate...
  • Page 64 AMA284 per top profile 2 x M10 2 x washer M10...
  • Page 65 Male to female AMA284 per top profile Face the end of the cable towards the socket you want to use. Connect the power supply to this connector 2 x M10 2 x washer M10...
  • Page 66 57 mm 57 mm Make sure the LED module is centered and insert the two small cover plates Now go back to step 5 on page 17 (standard module) Now go back to step 9 on page 34 (extension module)
  • Page 67 Shade & market shade N° 4 - 5 30’ Demount one side plate of the top profile & set aside AMA433-1 Make sure that the two shade spacers are inserted in the upper slot! 2 x shade spacer...
  • Page 68 AMA433-1 Slide three flat plates per side into the slot of 6 x flat plate the top profile Make sure that the two shade stoppers are inserted in the upper slot (the same slot as the shade spacers)!
  • Page 69 AMA433-1 Slide the other two shade spacers in the 2 x shade spacer same upper slot Reattach the side plate...
  • Page 70 Position the center hole of the flat plates above the holes in the top profile...
  • Page 71 AMA433-1 Slide the washer and bolt in from the sides and tighten the bolts 6 x M6 6 x M6x12...
  • Page 72 Now go back to step 5 on page 17 (standard module) Now go back to step 9 on page 34 (extension module)
  • Page 73 AMA433-1 6 x M8x12...
  • Page 74 Slide the fabric over the shade structure on both sides. Make sure that the black cords are on the outside...
  • Page 75 Push the fabric all the way up to the top profile and hook the first stick in the three hooks under the tubes...
  • Page 76 Use the black cords to open/close the shade...
  • Page 77 Lead one of the bungees of the black cords through the loop to secure the shade when closed...
  • Page 78 Warnings Text instructions Maintenance Warnings  Assembly text instructions  Maintenance ...
  • Page 79 Warnings General • Do not use any sharp tools to open the packaging. • We strongly advise against using power tools. • Tripping hazard, mind your step. • Do not put out cigarettes on the bench. • Not grafitti proof. •...
  • Page 80 Galvanized steel • Galvanization will become less shiny when used outdoors. • Flame retarding - NEN-EN13501-1 A1 - Class A1 products will not contribute to fire in any stage, including fully developed fire. For this reason, they are assumed to be capable of satisfying all requirements of all lower classes as well.
  • Page 81 • Thorough cleaning with Extremis Wood Cleaner. • We strongly recommend that you treat your wood with wood oil to protect it from stains - Small cracks and crevices can also appear as part of this process.
  • Page 82 2. Place the footrest on the 2 polystyrene blocks. 3. a. Fit the first A-frame onto one end of the footrest, with the Extremis logo facing the outer side. b. Assemble the A-frame using 2 M10x45 carriage bolts, 2 M10 cap nuts and spring washers.
  • Page 83 2. Place the footrest on the 2 polystyrene blocks. 3. a. Fit the first A-frame onto one end of the footrest, with the Extremis logo facing the outer side. b. Use 2 M10x45 carriage bolts, 2 M10 cap nuts and spring washers, but do not fully tighten the bolts yet.
  • Page 84 12. Screw an M10 cap nut and spring washer onto the outside of each of the two adjusting screws, as well as a rubber cap with Extremis logo in the large holes as shown in the drawing. Remove the expanded polystyrene blocks.
  • Page 85 Add-on table (p42) 1. Hang the add-on table on the two black plastic caps on the A-frame where you want to use it. You can choose the desired height by using either the upper or lower pair of caps. Screenholder (p44) 1.
  • Page 86 Do not tighten the bolt! 5. Put your AMAi on the desired height & tighten all bolts on the floor fastening feet. 6. Mark the locations on the floor where the anchors are to be fitted and drill at the points indicated.
  • Page 87 2. Remove the large cover plate from the top profile. 3. Slide the lighting & electricity module in the top profile. Attention: make sure the lighting & electrification is facing downwards. 4. Reattach the side plate with the four screws. Attention: make sure the electricity cable goes through the hole of the side plate.
  • Page 88 c. First screw an M10 cap nut & washer onto the two adjusting screws to hold the top profile in place. 6. Then repeat the procedure for the second top profile and attach the two lighting & electricity module to each other. Attention: male to female as shown in the drawing.
  • Page 89 11. Next attach the three stainless steel tubes to the rectangular brackets using two M8x12 bolts each. 12. Now hang the fabric on the AMAi by sliding it over the three stainless steel tubes. Make sure the side with the two black cords faces outwards.

  • Page 91: Maintenance

    Powder coating CLEANING Regularly Use Extremis Multicleaner, a 100% biodegradable detergent or common kitchen cleaning products. Avoid using aggressive products. These sur- faces are best cleaned with a neutral cleaning product diluted in water. REPAIRING DAMAGED POWDER COATING When damaged The impact of sharp objects can damage the coating.
  • Page 92 OILING Twice a year Before first use and/or after cleaning and sanding, we strongly recom- mend treating the wood with Extremis Wood Protector to protect it from dirt, moisture and UV rays. DAY TO DAY CLEANING Regularly and after every use Schedule regular maintenance to prolong the life of your garden furnitu- re Regular maintenance ensures that the furniture always looks its best.
  • Page 93 wood. THOROUGH CLEANING Twice a year It is essential to clean the wood thoroughly twice a year. We recommend doing this just before spring and after summer if your furniture is outside all the year round. Pick one of those humid, cloudy days, as it is better for the moisture level in the wood to dry out slowly after cleaning.
  • Page 94 All rights reserved. Unless otherwise specified, all designs and photographs contained in this publication are copyright protected and are the property of Extremis. No part of this publication may be copied or distributed without Extremis’ prior written consent. The names of the authors of photographs to which we do not hold rights are mentioned here. We have done our utmost to provide a...
