AMAi
Galvanized version

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMAi and is the answer not in the manual?

Questions and answers

Related Manuals for Extremis AMAi

Summary of Contents for Extremis AMAi

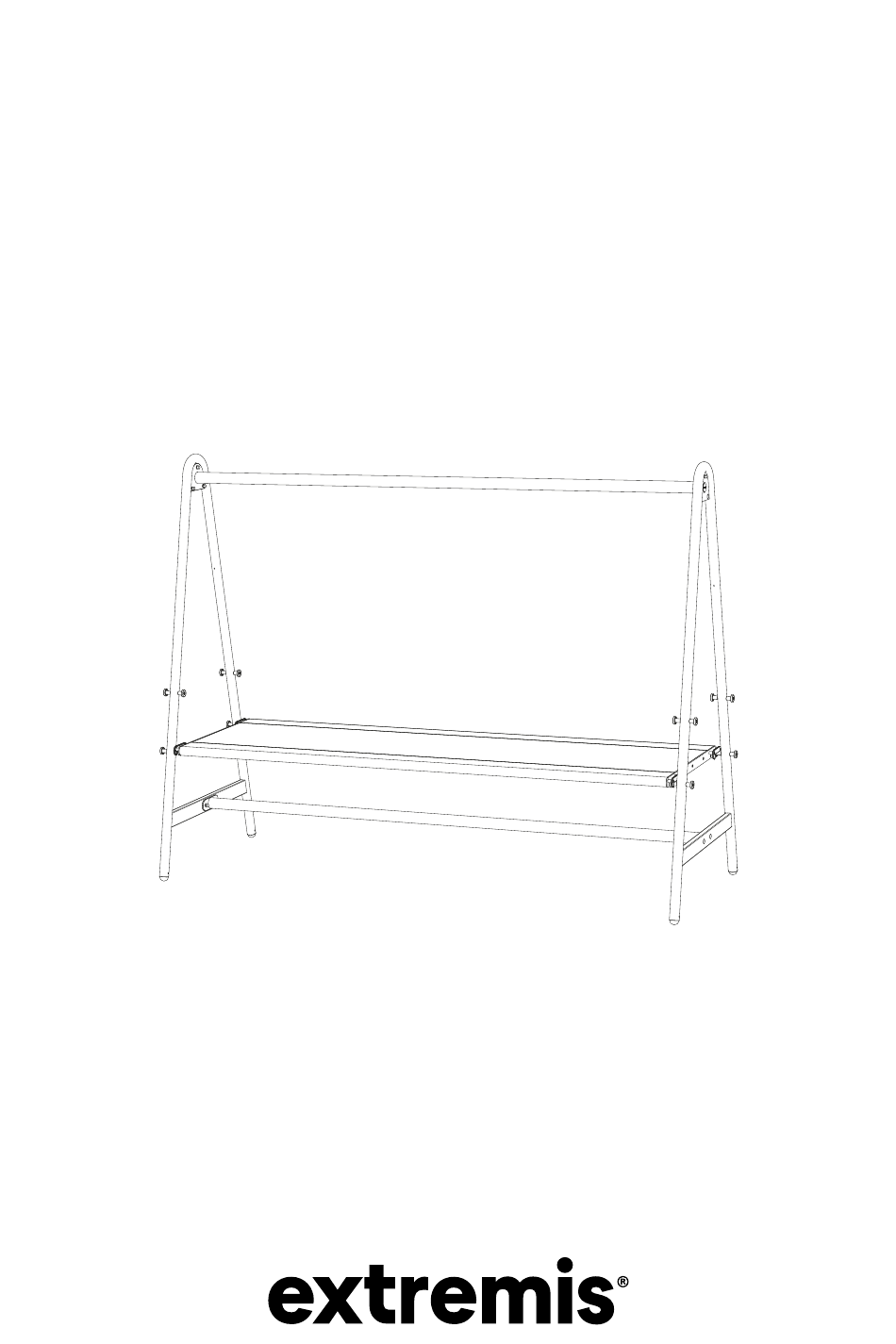

  • Page 1 AMAi Galvanized version...
  • Page 2 IMPORTANT! RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
  • Page 4 Table of contents Mounting kit  Exploded view  Assembly standard module  Assembly extension module  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
  • Page 5 Table of contents Add-on table  Assembly screenholder  Assembly tabletop fixation  Assembly leveling feet  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
  • Page 6 Table of contents Assembly floor fastening  Warnings - Text instructions - Maintenance  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.

  • Page 7: Mounting Kit

    Mounting kit 2 x M10x35 4 x M10x25 2 x dop 12 x M10 12 x washer M10 4 x M10x45 AMA285 Mounting kit to fix A-frames...
  • Page 8 8 x M8x20 8 x Plastic cap 4 x Connector axis AMA201-1 Mounting kit to fix the black dots to the A-frame 8 x M10 8 x M10 3 x M10x40 2 x M10x50 AMA239-1 Mounting kit to fix the extension module...
  • Page 9 4 x spacer 4 x M6x16 4 x M6x20 AMA440 Mounting kit to fix the tabletop fixation 2 x M8x20 2 x connection plate AMA442 Mounting kit to fix the floor fastening feet 4 x Spacer 4 x M4x20 4 x M4x12 AMA435 Mounting kit to fix the screenholder...

  • Page 10: Exploded View

    Exploded view...
  • Page 11 Standard module - Galvanized N° 5 N° 17 20’ Use the polystyrene blocks in the packaging of the A-frames for the rest of the assembly!
  • Page 12 Logo on the outside on both sides...
  • Page 13 Do this for both A-frames, do not tighten! AMA285 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 4 x M10 4 x washer M10 4 x M10x45...
  • Page 14 AMA285 Make sure the set screw is centered to the A-frame. Do this for both A-frames. 2 x M10x35...
  • Page 15 AMA285 Do this for both sides 2 x M10 2 x washer M10...
  • Page 16 Do this for both A-frames, tighten all bolts! AMA285 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 4 x M10 4 x washer M10 4 x M10x25...
  • Page 17 Do this for both A-frames AMA285 2 x M10 2 x washer M10 2 x dop...
  • Page 18 Remove the polystyrene blocks...
  • Page 19 Do this for both A-frames AMA201-1 per A-frame 4 x Connector axis...
  • Page 20 AMA201-1 per A-frame Do this for both A-frames 8 x M8x20 8 x Plastic cap...
  • Page 22 side up and pull. Always make sure to hold the tabletop at its center when moving it up and down!
  • Page 23 side up and push. Always make sure to hold the tabletop at its center when moving it up and down!
  • Page 24 Extension module - Galvanized N° 5 N° 17 20’ Use the polystrene blocks in the packaging of the A-frames for the rest of the assembly!
  • Page 25 Logo on the outside...
  • Page 26 Do not tighten! AMA285 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 2 x M10 2 x washer M10 2 x M10x45...
  • Page 27 AMA239-1 2 x M10x50...
  • Page 28 AMA239-1 Do not tighten! 2 x M10 2 x washer M10...
  • Page 29 Logo on the outside...
  • Page 30 Do this for both sides AMA285 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 2 x M10 2 x washer M10 2 x M10x45...
  • Page 31 AMA285 AMA239-1 AMA239-1 AMA285 per center per outer A-frame A-frame Make sure the set screw is centered to the A-frame. 1 x M10x35 1 x M10x40...
  • Page 32 AMA285 Do this for both sides 2 x M10 2 x washer M10...
  • Page 33 AMA285 Do this for both sides 2 x M10 2 x washer M10...
  • Page 34 11a. Do this for both outer A-frames, tighten all bolts AMA285 per outer A-frame 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 2 x M10 2 x washer M10 2 x M10x25...
  • Page 35 11b. Do this for all center A-frames AMA239-1 per center A-frame 15 Nm MAX! Tighten carefully! Excessive force may damage the coating! 4 x M10 4 x washer M10 2 x M10x40...
  • Page 36 Do this for both outer A-frames AMA285 per outer A-frame 1 x M10 1 x washer M10 1 x dop...
  • Page 37 Do this for all A-frames AMA201-1 per A-frame 4 x Connector axis...
  • Page 38 AMA201-1 per A-frame Do this for all A-frames 8 x M8x20 8 x Plastic cap...
  • Page 40 Add-on table Lowest position: use outer holes...
  • Page 41 Highest position: use inner holes...
  • Page 42 Screenholder 5’ AMA435 4 x Spacer 4 x M4x20 4 x M4x12...
  • Page 44 Tabletop fixation N° 5 N° 17 20’ Tighten the bolt with spacer. Do not tighten the wing screw! AMA440 4 x spacer 4 x M6x16 4 x M6x20...
  • Page 46 Can only be combined when the tabletop is in the highest position...
  • Page 47 Tighten all wing screws...

  • Page 48: Leveling Feet

    Leveling feet N° 17 10’ Remove the standard plastic caps...
  • Page 49 Level the feet until they Fix the nut touch the floor...

  • Page 50: Floor Fastening

    Floor fastening N° 13 10’ Remove the standard plastic caps...
  • Page 51 AMA442 per A-frame 2 x connection plate...
  • Page 52 AMA442 per A-frame Do not tighten! 4 x M8x20 Put on the desired height & tighten the bolt...
  • Page 53 Use the fasteners that are most suitable for the surface...
  • Page 54 Warnings Text instructions Maintenance Warnings  Assembly text instructions  Maintenance ...
  • Page 55 Warnings General • Do not use any sharp tools to open the packaging. • We strongly advise against using power tools. • Tripping hazard, mind your step. • Do not put out cigarettes on the bench. • Not grafitti proof. •...
  • Page 56 • Thorough cleaning with Extremis Wood Cleaner. • We strongly recommend that you treat your wood with wood oil to protect it from stains - Small cracks and crevices can also appear as part of this process.
  • Page 57 • For indoor use only. • Spilt liquids such as coffee, tea, alcohol, etc. must be removed immediately. • Remove ink stains with turpentine or white spirit. Repair any dull spots that may emerge with a Forbo Polish and polish with a worn green scouring pad.
  • Page 58 2. Place the footrest on the 2 polystyrene blocks. 3. a. Fit the first A-frame onto one end of the footrest, with the Extremis logo facing the outer side. b. Assemble the A-frame using 2 M10x45 carriage bolts, 2 M10 cap nuts and spring washers.
  • Page 59 2. Place the footrest on the 2 polystyrene blocks. 3. a. Fit the first A-frame onto one end of the footrest, with the Extremis logo facing the outer side. b. Use 2 M10x45 carriage bolts, 2 M10 cap nuts and spring washers, but do not fully tighten the bolts yet.
  • Page 60 12. Screw an M10 cap nut and spring washer onto the outside of each of the two adjusting screws, as well as a rubber cap with Extremis logo in the large holes as shown in the drawing. Remove the expanded polystyrene blocks.
  • Page 61 2. Fix the plate to the screen using the screws and spacers provided. 3. You can now hang the screen over the wire hanger. Tabletop fixation (p44) Can only be combined when the tabletop is in the highest position 1. Place the tabletop upside down on a flat, clean surface and attach the four tabltop fixation plates to the four corners of the tabletop using one wing screw and one M6x16 countersunk screw with spacer on each.
  • Page 62 Do not tighten the bolt! 5. Put your AMAi on the desired height & tighten all bolts on the floor fastening feet. 6. Mark the locations on the floor where the anchors are to be fitted and drill at the points indicated.

  • Page 63: Maintenance

    Powder coating CLEANING Regularly Use Extremis Multicleaner, a 100% biodegradable detergent or common kitchen cleaning products. Avoid using aggressive products. These sur- faces are best cleaned with a neutral cleaning product diluted in water.
  • Page 64 For a thorough cleaning, we can recommend our Extremis Wood Cleaner. This is a bio-degradable cle- ansing shampoo for wooden furniture. The product removes grey disco- louration, green deposits and dirt.
  • Page 65 Needless to say we strongly recommend to do this once a year. Extremis Wood Protector is a 100% natural product based on linseed oil. It is colorless, but the wood will be darker after this treatment. Remove all residues of old applications.
  • Page 66 diately before the substances begin to act on the table top. Take precau- tions by using coasters. Oak veneer CLEANING Regularly Dust regularly using a lightly dampened cloth in the direction of the wood grain, never across the grain. Wipe dry with a soft cloth immedia- tely afterwards.
  • Page 67 All rights reserved. Unless otherwise specified, all designs and photographs contained in this publication are copyright protected and are the property of Extremis. No part of this publication may be copied or distributed without Extremis’ prior written consent. The names of the authors of photographs to which we do not hold rights are mentioned here. We have done our utmost to provide a...
