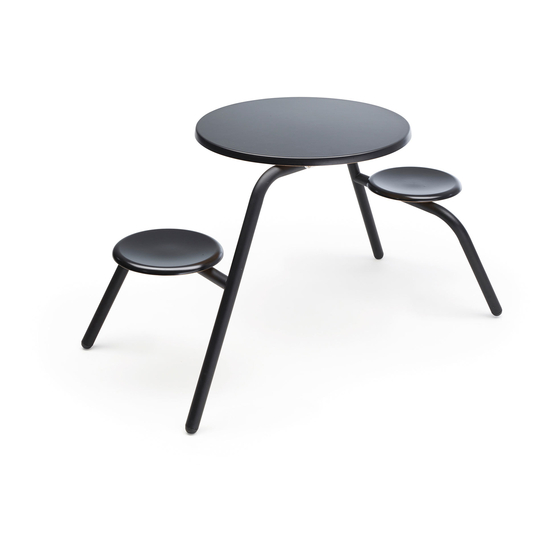

Virus
Indoor / Outdoor
Assembly instructions, how to use, useful tips for keeping
MANUAL
your tool for togetherness in shape.
32794
EN – NL – DE – FR – IT – ES

Advertisement

loading
Need help?

Need help?

Do you have a question about the Virus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extremis Virus

Summary of Contents for Extremis Virus

  • Page 1 Virus Indoor / Outdoor Assembly instructions, how to use, useful tips for keeping MANUAL your tool for togetherness in shape. 32794 EN – NL – DE – FR – IT – ES...
  • Page 2 EXTREMIS Tools for togetherness...
  • Page 3 IMPORTANT! RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. BELANGRIJK! LEES DIT DOCUMENT AANDACHTIG EN BEWAAR HET VOOR TOEKOMSTIGE RAADPLEGING! WICHTIG! AUFHEBEN, UM SPÄTER ETWAS NACHSEHEN ZU KÖNNEN: SORGFÄLTIG DURCHLESEN! IMPORTANT! LISEZ ATTENTIVEMENT CE MANUEL ET CONSERVEZ-LE POUR RÉFÉRENCE ULTÉRIEURE! IMPORTANTE! CONSERVARE COME RIFERIMENTO PER IL FUTURO: LEGGERE ATTENTAMENTE! ¡IMPORTANTE! CONSÉRVELO PARA...
  • Page 4 5 PL A Z AS OPTIONS For indoor & outdoor use BACKREST RUGLEUNING RÜCKENLEHNE DOSSIER P. 30 SCHIENALE RESPALDO FLOOR FASTENING GRONDVER ANKERING BODENVER ANKERUNG ANCR AGE AU SOL P. 32 FISSAGGIO A TERR A ANCL A JE AL SUELO 4 – Virus...
  • Page 5 Content – 5...
  • Page 6 Content & assembly Virus 2-seater 2-SEATER Tabletop ø70 cm Indoor & Outdoor 4a x 4 1 x 1 2 x 2 3 x 2 4b x 4 4c x 8 4d x 2 5a x 16 5b x 8 6 – Virus...
  • Page 7 English Nederlands Deutsch CONTENT INHOUD INHALT 2-seater 2-zit 2-Sitzer 1. Tabletop 1. Tafelblad 1. Tischplatte 2. Leg 2. Poot 2. Bein 3. Seat 3. Zitje 3. Sitzfläche 4. Mounting kit 4. Montageset 4. Montagesatz (1 set) (1 set) (1 set) a.
  • Page 8 N° 4 N° 10/2x13 15’ 8 – Virus...
  • Page 9 4a x 4 4c x 4 4d x 2 4b x 4 4c x 4 2-seater – 9...
  • Page 10 15kg/33lb MAX! option: backrest 5a x 16 5b x 8 10 – Virus...
  • Page 11 2-seater – 11...
  • Page 12 Content & assembly Virus 3-seater 3-SEATER Tabletop ø80 cm Indoor & Outdoor 4a x 6 1 x 1 2 x 3 3 x 3 4b x 6 4c x 12 4d x 3 5a x 24 5b x 12 12 – Virus...
  • Page 13 English Nederlands Deutsch CONTENT INHOUD INHALT 3-seater 3-zit 3-Sitzer 1. Tabletop 1. Tafelblad 1. Tischplatte 2. Leg 2. Poot 2. Bein 3. Seat 3. Zitje 3. Sitzfläche 4. Mounting kit 4. Montageset 4. Montagesatz (1 set) (1 set) (1 set) a.
  • Page 14 N° 10/2x13 20’ 14 – Virus...
  • Page 15 4a x 6 4c x 12 4b x 6 3-seater – 15...
  • Page 16 4d x 3 option: backrest 15kg/33lb MAX! 5a x 24 5b x 12 16 – Virus...
  • Page 17 3-seater – 17...
  • Page 18 Content & assembly Virus 4-seater 4-SEATER Tabletop ø90 cm Indoor & Outdoor 4a x 8 1 x 1 2 x 4 3 x 4 4b x 8 4c x 16 4d x 4 5a x 32 5b x 16 18 – Virus...
  • Page 19 English Nederlands Deutsch CONTENT INHOUD INHALT 4-seater 4-zit 4-Sitzer 1. Tabletop 1. Tafelblad 1. Tischplatte 2. Leg 2. Poot 2. Bein 3. Seat 3. Zitje 3. Sitzfläche 4. Mounting kit 4. Montageset 4. Montagesatz (1 set) (1 set) (1 set) a.
  • Page 20 N° 10/2x13 25’ 20 – Virus...
  • Page 21 4a x 8 4c x 16 4b x 8 4-seater – 21...
  • Page 22 4d x 4 option: backrest 15kg/33lb MAX! 5a x 32 5b x 16 22 – Virus...
  • Page 23 4-seater – 23...
  • Page 24 Content & assembly Virus 5-seater 5-SEATER Tabletop ø100 cm Indoor & Outdoor 4a x 10 1 x 1 2 x 5 3 x 5 4b x 10 4c x 20 4d x 5 5a x 40 5b x 20 24 – Virus...
  • Page 25 English Nederlands Deutsch CONTENT INHOUD INHALT 5-seater 5-zit 5-Sitzer 1. Tabletop 1. Tafelblad 1. Tischplatte 2. Leg 2. Poot 2. Bein 3. Seat 3. Zitje 3. Sitzfläche 4. Mounting kit 4. Montageset 4. Montagesatz (1 set) (1 set) (1 set) a.
  • Page 26 N° 10/2x13 30’ 26 – Virus...
  • Page 27 4a x 10 4c x 20 4b x 10 5-seater – 27...
  • Page 28 4d x 5 option: backrest 15kg/33lb MAX! 5a x 40 5b x 20 28 – Virus...
  • Page 29 5-seater – 29...
  • Page 30 Respaldo 6. Dossier 6. Schienale 6. Respaldo 7. Kit de montage 7. Kit di montaggio 7. Kit de montaje (1 set) (1 set) (1 set) a. M6 rondelle élastique a. M6 rondella elastica a. M6 arandela ondulada 30 – Virus...
  • Page 31 15kg/33lb MAX! N° 5 5’ 5a x 8 5b x 4 7a x 4 position 1 position 2 position 1 position 2 Backrest – 31...
  • Page 32 9. Capuchon en plastique 9. Cappuccio in materiale plastico 9. Tapón de plástico 10. Kit de montage 10. Kit di montaggio 10. Kit de montaje (1 set) (1 set) (1 set) a. M8x35 boulon a. M8x35 bullone a. M8x35 tornillo 32 – Virus...
  • Page 33 N° 13 5’ Floor fastening – 33...
  • Page 34 10a x 1 34 – Virus...
  • Page 35 Floor fastening – 35...
  • Page 36 36 – Virus...
  • Page 37 Floor fastening – 37...

  • Page 38: Maintenance

    5. Use the most suitable materials to fasten the 4. Remove the warning card before assembling BUT Virus to the type of floor on which it is to stand. leave the corrugated spring washers where they 6. Now tighten all the bolts.
  • Page 39 MiraClean can be used on tarpaulins, PVC, glass, steel, chrome, aluminium, porcelain, artificial leather and many types of floor. For more information, contact Extremis at info@ extremis.be. English – 39...

  • Page 40: Montage

    3c. Bevestig nu de bout uit stap 3a met telkens een meest geschikt zijn voor de ondergrond waarop veerring M8 en moer M8. Herhaal dit voor de de Virus moet staan. andere poot. Span nu alle bouten aan. 6. Span nu alle bouten aan.
  • Page 41 De MiraClean kan gebruikt worden op zeil, pvc, glas, staal, chroom, aluminium, porselein, kunststofleer en diverse vloeren. Voor meer informatie, contacteer Extremis via info@ extremis.be. Nederlands – 41...
  • Page 42 5. Verwenden Sie zur Befestigung die (höchstens 15 Nm)! Befestigungsmittel, die für den Untergrund am 5. Drehen Sie das Ganze jetzt um. besten geeignet sind, auf dem Virus stehen soll. 6. Ziehen Sie jetzt alle Schrauben an. 3/4/5-Sitzer PFLEGE 1. Legen Sie die Tischplatte umgedreht auf den...
  • Page 43 Entfernen hartnäckiger Flecken wie Stift, Fett, Trittspuren, Kalkflecken, eingetrockneter Kaffee oder Tee. MiraClean kann auf Segeltuch, PVC, Glas, Stahl, Chrom, Aluminium, Porzellan, Kunstleder und diversen Bodenbelägen angewendet werden. Für mehr Informationen kontaktieren Sie Extremis über info@extremis.be. Deutsch – 43...

  • Page 44: Entretien

    5. Utilisez les moyens de fixation les plus adéquats aux pieds avec chaque fois 4 contre-écrous M6 pour le sol sur lequel le Virus sera installé. et 8 rondelles élastiques M6 comme indiqué 6. À présent, vous pouvez serrer tous les boulons.
  • Page 45 L’éponge MiraClean peut être utilisée sur de la bâche, du PVC, du verre, de l’acier, du chrome, de l’aluminium, de la porcelaine, du cuir synthétique et divers types de sols. Pour plus d’informations, contactez Extremis via info@extremis.be. Français – 45...

  • Page 46: Manutenzione

    Ora fissare le sedute alle gambe utilizzando 4 fissaggio più appropriati al tipo di terreno sul controdadi M6 e 8 rondelle elastiche ondulate quale si intende posizionare il tavolo Virus. M6 per ciascuna seduta, come mostrato nel 6. Ora serrare tutti i bulloni.
  • Page 47 La spugna MiraClea può essere utilizzata su tela lucida, pvc, vetro, acciaio, cromo, allumi- nio, porcellana, similcuoio e diverse tipologie di pavimento. Per maggiori informazioni contattare Extremis all’in- dirizzo info@extremis.be. Italiano – 47...

  • Page 48: Montaje

    5. Emplee los elementos de fijación más aptos para 3c. Fije el tornillo del paso 3a, cada vez utilizando el suelo en que se debe colocar el Virus. una arandela M8 y una tuerca M8. Repítalo para 6. Ahora apriete todos los tornillos.
  • Page 49 Para más información, contacte Extremis en info@ extremis.be. Español – 49...
  • Page 50 A day bed and night sofa pleasure for all people half a plate of solid aluminium in the middle available 2017 – discover it online! Virus Kosmos Walrus Sticks Compact 2 - 3 - 4 - 5 seater for Picnic & lounge by moving The very first outdoor sofa with...
  • Page 52 All rights reserved. Unless otherwise specified, all designs and photographs contained in this publication are copyright protected and are the property of Extremis. No part of this publication may be copied or distributed without Extremis’ prior written consent. The names of the authors of photographs to which we do not hold rights are mentioned here.
