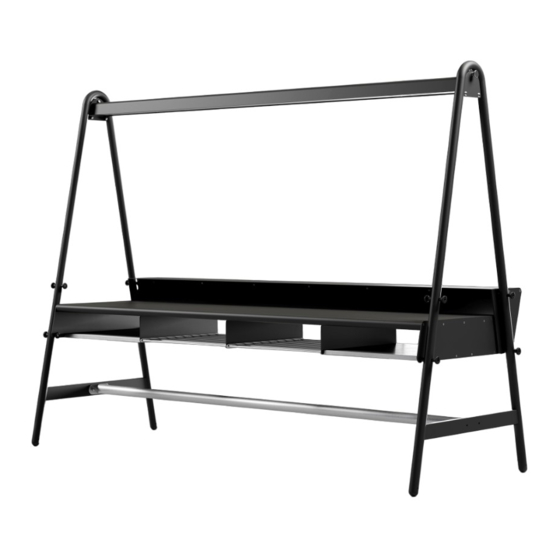

AMAi
chef
Assembly instructions, how to use, useful tips for keeping
MANUAL
your tool for togetherness in shape.
LAB167-1
EN – NL – DE – FR – IT – ES

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMAi chef and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extremis AMAi chef

Summary of Contents for Extremis AMAi chef

  • Page 1 AMAi chef Assembly instructions, how to use, useful tips for keeping MANUAL your tool for togetherness in shape. LAB167-1 EN – NL – DE – FR – IT – ES...
  • Page 2 Tools for togetherness © All our designs are original creations and protected by intellectual property rights.
  • Page 3 IMPORTANT! RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. BELANGRIJK! LEES DIT DOCUMENT AANDACHTIG EN BEWAAR HET VOOR TOEKOMSTIGE RAADPLEGING! WICHTIG! AUFHEBEN, UM SPÄTER ETWAS NACHSEHEN ZU KÖNNEN: SORGFÄLTIG DURCHLESEN! IMPORTANT! LISEZ ATTENTIVEMENT CE MANUEL ET CONSERVEZ-LE POUR RÉFÉRENCE ULTÉRIEURE! IMPORTANTE! CONSERVARE COME RIFERIMENTO PER IL FUTURO: LEGGERE ATTENTAMENTE! ¡IMPORTANTE! CONSÉRVELO PARA...
  • Page 4 Do not use power tools!
  • Page 6 Table of contents Mounting kit Exploded view Assembly AMAi chef Assembly extension module Assembly bar Assembly glassholder...
  • Page 7 Assembly add-on table Assembly screenholder Assembly leveling feet Assembly floor fastening Warnings – Assembly text instructions – Maintenance...
  • Page 8 Mounting kit 12 x M10 din 917 12 x washer M10 din 137 2 x dop 2 x M10x35 4 x M10x25 din 603 4 x M10x45 din 603 Mounting kit AMA284 to fix endcaps to the A-frame...
  • Page 9 8 x M8x20 din 7984 8 x Dot 4 x Connector axis Mounting kit AMA201-1 to fix black dots to the A-frame...
  • Page 10 8 x M10 8 x M10 3 x M10x40 2 x M10x50 din 603 Mounting kit AMA239-1 to fix extension module 4 x Hammer nut 4 x M5x12 iso 10642 Mounting AMA450 kit to fix glassholder...
  • Page 11 2 x M8x20 din 7984 2 x connection plate Mounting kit AMA442 to fix floor fastening feet 4 x Spacer 4 x M4x20 din 7985 4 x M4x12 din 7985 Mounting kit AMA435 to fix screenholder...
  • Page 12 Exploded view...
  • Page 14 Assembly AMAi chef N° 17 N° 5 20’ p 52 Use the isomo blocks in the packaging of the A-frames for the rest of the assembly! In case of leveling or floor fastening feet, first follow the steps on p. 46 or p. 48.
  • Page 15 Logo on the outside on both sides 15 Nm 5kg/11lb MAX! AMA284 4 x M10 4 x M10 4 x M10x45...
  • Page 16 AMA284 Make sure the set screw is centered to the A-frame 2 x M10x35 In case of LIGHTING & ELECTRICITY, first follow the steps in manual LAB161. In case of SHADE OR MARKET SHADE, first follow the steps in manual LAB168-1.
  • Page 17 AMA284 2 x M10 2 x M10...
  • Page 18 15 Nm 5kg/11lb MAX! AMA284 4 x M10x25 4 x M10 4 x M10...
  • Page 19 AMA284 2 x Dop 2 x M10 2 x M10...
  • Page 20 Remove the polystyrene blocks...
  • Page 21 AMA201 8 x Connector axis...
  • Page 22 AMA201-1 per A-frame 16 x M8x20 16 x Dot...
  • Page 24 Assembly AMAi chef extension module N° 17 N° 5 35’ p 52 Use the isomo blocks in the packaging of the A-frames for the rest of the assembly! In case of leveling or floor fastening feet, first follow the steps on p. 46 or p. 48.
  • Page 25 Logo on the outside 15 Nm 5kg/11lb MAX! AMA284 2 x M10 2 x M10 2 x M10x45...
  • Page 26 AMA239-1 2 x M10x50...
  • Page 27 AMA239-1 2 x M10 2 x M10...
  • Page 28 Logo on the outside 15 Nm 5kg/11lb MAX! AMA284 2 x M10 2 x M10 2 x M10x45...
  • Page 29 M10x35 M10x40 AMA239-1 1 x M10x40 (per center A-frame) AMA284 Make sure the set screw is centered to the A-frame 1 x M10x35 (per outer A-frame) In case of LIGHTING & ELECTRICITY, first follow the steps in manual LAB161. In case of SHADE OR MARKET SHADE, first follow the steps in manual LAB168-1.
  • Page 30 AMA284 2 x M10 2 x M10...
  • Page 31 AMA284 2 x M10 2 x M10...
  • Page 32 15 Nm 5kg/11lb MAX! AMA239-1 AMA284 4 x M10 4 x M10 2 x M10x40 6 x M10 6 x M10 4 x M10x30...
  • Page 33 AMA284 2 x Dop 2 x M10 2 x M10...
  • Page 34 AMA201 per A-frame 4 x Connector axis...
  • Page 35 AMA201 per A-frame 8 x M8x20 8 x Dot...
  • Page 38 Assembly AMAi bar 2’ p 53...
  • Page 40 Assembly AMAi glassholder N° 3 5’ p 53 The position of the corners is very important Do not tighten 3 à 4 mm AMA450 4 x M5x12 4 x Hammer nut...
  • Page 42 Assembly add-on table p 53 Lowest position: use outer holes...
  • Page 43 Highest position: use inner holes...
  • Page 44 Assembly screenholder 5’ p 53 AMA435 4 x Spacer 4 x M4x20 4 x M4x12...
  • Page 46 Assembly AMAi leveling feet N° 17 10’ p 53...
  • Page 48 Assembly AMAi floor fastening N° 13 10’ p 53...
  • Page 49 AMA442 per A-frame...
  • Page 50 1 x AMA442 per A-frame Do not tighten the bolt 4 x M8x20 Put on the desired height & tighten the bolt...
  • Page 51 6. Now first assembly the AMAi kitchen, go to p. 12...
  • Page 52 Satisfying the same criteria as Class B for the as well as a rubber cap with Extremis logo in the SBI-test according to EN13823. In addition, large holes as shown in the drawing.
  • Page 53 Floor fastening - p48 as well as a rubber cap with Extremis logo in the 1. Remove the standard plastic caps from the large holes as shown in the drawing. Remove the A-frames.
  • Page 54 MAINTENANCE Powder coating CLEANING Regularly Use Extremis Multicleaner, a 100% biodegradable detergent or common kitchen cleaning products. Avoid using aggressive products. These surfaces are best cleaned with a neutral cleaning product diluted in water. REPAIRING DAMAGED POWDER COATING When damaged The impact of sharp objects can damage the coating.
  • Page 55 M10, alsook • De kleur kan in zekere mate vervagen bij een rubber dop met Extremis logo in het grote gat blootstelling aan uv-straling. zoals op de tekening. • Vlamvertragend - NEN-EN13501-1 A2-sl - Voldoet 9.
  • Page 56 5. a. Draai de regelbare voetjes uit tot ze overal de telkens een dopmoer en veerring M10, alsook grond raken. een rubber dop met Extremis logo in het grote gat b. Fixeer deze nu door de moer vast te draaien. zoals op de tekening. Verwijder de isomo blokken.
  • Page 57 ONDERHOUD Poedercoating REINIGEN Geregeld Gebruik Extremis Multi Cleaner, een 100% bio- logisch afbreekbaar schoonmaakmiddel, of een gewoon schoonmaakmiddel zoals je in de keuken gebruikt. Gebruik geen agressieve producten. Voor deze oppervlakken gebruik je het best een neutraal schoonmaakmiddel, verdund met water.
  • Page 58 Einstellschrauben je einen M10-Überwurfmutter diese Produkte bei einem voll entwickelten und Federscheibe, sowie eine Gummikappe mit Feuer nicht wesentlich zur Brandlast und zur Extremis-Logo in der großen Öffnung, wie in der Brandverbreitung beitragen. Zeichnung gezeigt. • Dunkle Farben können bei sonnigem Wetter sehr 9.
  • Page 59 A-Rahmen auf den Niedrigsten Kappen 2. Stellen Sie die Fußstütze auf die 2 Styroporblöcke. positionieren. 3. Montieren Sie den ersten A-Rahmen an einem Ende der Fußstütze mit dem Extremis-Logo auf Bar - S. 38 der Außenseite, mit 2 M10x45-Schlossschrauben, 2 M10-Überwurfmuttern und Federscheiben.
  • Page 60 PFLEGE Pulverbeschichtung REINIGEN Regelmäßig Verwenden Sie den zum 100 % biologisch abbaub- aren Extremis-Multireiniger oder einen herköm- mlichen Allesreiniger. Keine aggressiven Reiniger verwenden. Am besten eignet sich ein neutrales Reinigungsmittel in Wasser. SCHÄDEN IN PULVERBESCHICHTUNG AUSBESSERN Bei Beschädigung...
  • Page 61 • Les couleurs foncées peuvent devenir très de réglage, ainsi qu’un capuchon en caoutchouc chaudes par temps ensoleillé. avec le logo Extremis dans le grand trou comme Acier inoxydable indiqué sur le dessin. 9. Retirez les blocs de polystyrène expansé.
  • Page 62 Module d’extension - p24 avec le logo Extremis dans le grand trou comme indiqué sur le dessin. Retirez les blocs de 1. Ouvrez les boîtes des cadres A et retirez les blocs polystyrène expansé. de polystyrène expansé. Placez deux blocs de 15.
  • Page 63 AMAi doit reposer. ENTRETIEN Thermolaquage NETTOYAGE Régulièrement Utilisez de l’Extremis Multicleaner, un détergent 100% biodégradable ou un produit de nettoyage classique. Evitez d’utiliser des produits agressifs. Il est préférable de nettoyer ces surfaces avec un produit de nettoyage neutre dilué dans l’eau.
  • Page 64 All rights reserved. Unless otherwise specified, all designs and photographs contained in this publication are copyright protected and are the property of Extremis. No part of this publication may be copied or distributed without Extremis’ prior written consent. The names of the authors of photographs to which we do not hold rights are mentioned here. We have done our utmost to provide a...
