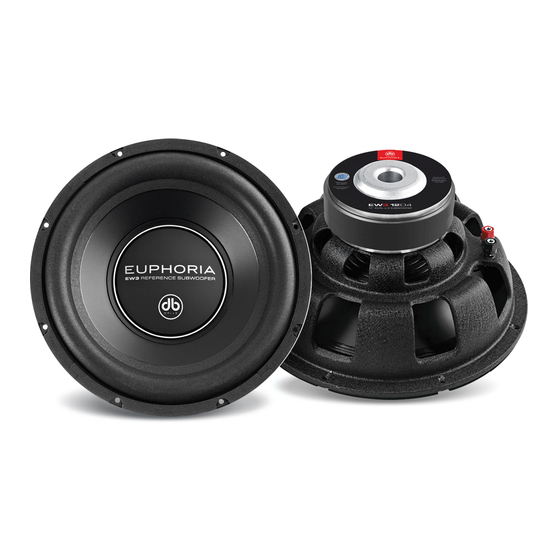

- Page 1 EUPHORIA : EW3 Dual 4 Ω Subwoofer USER MANUAL Installation Instructions | Owners Manual Due to continuous improvement of the product, specifications are subject to change without notice.
- Page 2 Congratulations on your purchase of a DB Drive state-of-the-art subwoofer. Your selection of a DB Drive car audio product indicates a true appreciation of fine musical reproduction. Whether adding to an existing system or including your DB Drive subwoofer in a new system, you are certain to notice immediate performance benefits.
-
Page 3: Product Specifications
PRODUCT SPECIFICATIONS TS Specs EW3 10D4 EW3 12D4 Sensitivity 1W/1m) 87.7 dB 89 dB DC Resistance 3.20 Ω x 2 3.20 Ω x 2 Inductance 1.29 mH 1.25 mH Free Air Resonance 31.39 Hz 35.63 Hz Equivalent Stiffeness 49.41 Ltr 62.05 Ltr Mechanical Q 9.86... -
Page 4: Mechanical Measurements
MECHANICAL MEASUREMENTS EW3 10D4 10.12 in / 257 mm 5.50 in / 139.6 mm 9.11 in / 231.5 mm EW3 12D4 12.18 in / 309.5 mm 5.50 in /139.6 mm 11.06 in /281 mm... - Page 5 CALCULATING ENCLOSURES It is difficult to give exact box dimensions that are universal for all cars and trucks. It is for this reason that you must be able to calculate the space in which you have available in order to achieve the proper air volume required.
-
Page 6: Recommended Enclosures
RECOMMENDED ENCLOSURES EW3 10D4 Sealed Box Range 7.5 - 1.5 cuft Recomended Sealed Box .86 cuft External Box Dimentions 15” W x 12” H x 12” D Gross Internal Volume .86 cuft Net Internal Volume .84 cuft Vented Box Range 1 - 2 cuft Recomended Sealed Box 1.43 cuft... -
Page 7: Wiring Diagrams
WIRING DIAGRAMS 8 Ohm 2 Ohm 4 Ohm 1 Ohm 2.6 Ohm 6 Ohm... -
Page 8: Limited Warranty
