Epever RTU 4G HE01 User Manual

HUIZHOU EPEVER TECHNOLOGY CO., LTD
※ Thanks for selecting the EPEVER RTU 4G HE01 wireless remote terminal unit. Please read this
manual carefully before using.
※ This product is not waterproof or dustproof. Do not use it in humid, high salt spray, corrosion,
greasy, flammable, explosive, dust accumulative, or other severe environments.
USER MANUAL
EPEVER RTU 4G HE01
1. Overview

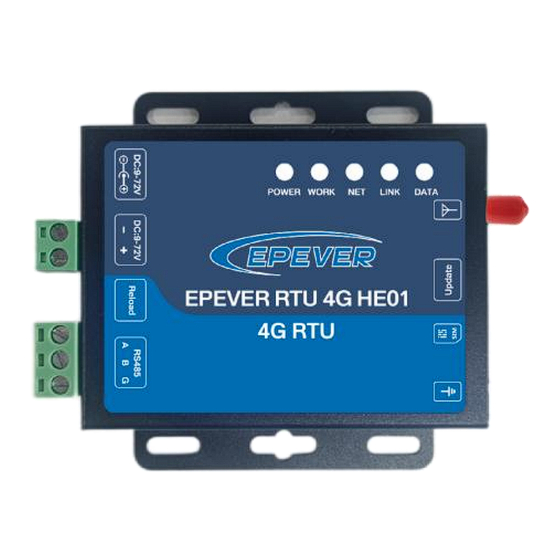

EPEVER RTU 4G HE01 is a new wireless remote terminal unit based on the 4G network. With the
SIM card, the solar controllers, inverters, or inverter/chargers connected to the moudule can easily
access the EPEVER cloud server (Solar Guardian). It helps realize remote, wireless, and
networked communication among devices quickly.
Features:

Automatic restore after disconnection

4G network with low latency, wide coverage, and flexible networking

Support PC software, serial port command, SMS command

Support RS485 communication

Support TCP/UDP protocol

Support PC or phone APP to monitor status and program parameters
2. Characteristics
❶
DATA indicator
❷
LINK indicator
❸
NET indicator
❹
WORK indicator
❺
Power indicator
❻
DC power terminals (1)
(1) Terminal Definition
GND
❻
DC power terminals
1
A
❼
RS485 terminals
1
(2) Installing the SIM card: Press the yellow button ⓬, and the SIM card slot
Put the SIM card on it, and push it into the module.
3. Accessories
Type Picture Name
4G antenna
Included
3 Pin connector
(5.08-3P)
❼
RS485 terminals (1)
❽
Antenna connector
❾
Upgrade port
❿
SIM card slot
⓫
DC power connector
⓬
SIM card slot push-out button
9~72V
1-GND
VCC
5.08-2 2P
2
RS485
B G
5.08-3P
2 3
3-GND
❿
Function
Connect to the antenna connector❽ for
data sending or receiving.
Connect to the RS485 terminals❼ for
data transmission (Alternate terminal).
1
TEL: +86-752-3889706
Optional
4. Indicator Instruction
Indicator
DATA
LINK
NET
WORK
POWER
5. Installation
Install the EPEVER RTU 4G HE01 by the sequence following:
Communication Part: Connect the SIM card, antenna, and communication cables.
1
Power Part: Power on the EPEVER RTU 4G HE01 by connecting a battery.
2
When using battery power, it is necessary to add a fast-acting fuse according to the battery
capacity to prevent the battery from short-circuiting.
6. Specifications
Parameter
Input Voltage
Power Consumption
(2)
Working Frequency
Configuration Methods
Communication Method
2-VCC
1-A
Communication Standard
2-B
Baud Rate
Antenna Connector
is pushed out.
Antenna Gain
Work Temperature Range
Enclosure
Relative Humidity
Dimension (Length x Width x Height)
Mounting Hole Size
① For each country, the working band is different. If you want to know the working band in your
country, please contact EPEVER technical support.
Connect to the DC power terminals❻ for
2 Pin connector
power supplying (Alternate terminal).
(5.08-2P)
Connect the RS485 terminal
RJ45 to 5.08
communication module to the RJ45 communication port
cable(CC-RJ45-3P5.0 on the controller, inverter, or fusioncube for
8-150)
device communication.
Connect the power supply terminal of the
Red and black parallel
❻
module
wire 20AWG-5.08-2P-
The tinned end can be connected to the
tinned connection wire
device battery for power supply.
Status
Flashing (green) Serial port data interaction indication
OFF Serial port data is not interacting
Always on (green) Socket A connection successfully
OFF Socket A Connection failed
Slow flashing (green)
Connect to 4G network successfully
Flash 4 stops 1/cycle
OFF
Flashing (green)
OFF
On Solid(Red)
OFF Power supply exception
Fuse
Model
EPEVER RTU 4G HE01
Communication: <600mA/12V;
Idle: <100mA/12V
About the operating frequency band
Cloud server, PC software, serial port command, SMS
The male head standard in "Communication Interface
Standard V-1.1"
1200bps ~ 115200bps，8N1
50Ω SMA (female head)
2.5dBi ~ 5dBi
-40℃~ 85℃
5 ~ 95% (N.C.)
99mm x 86mm x 25mm
(Including terminals and installation handles )
75mm / Φ4 / Φ3
2
Website: www.epever.com
❼
on the
Instruction
Failed to register
Work normal
Module exception
Power on normal
9~72VDC
①
command
RS485
IP30
