DuraVent DirectVent Pro Installation Instructions Manual page 19

Venting system for direct vent gas stoves and fireplaces
Hide thumbs Also See for DirectVent Pro:

Advertisement

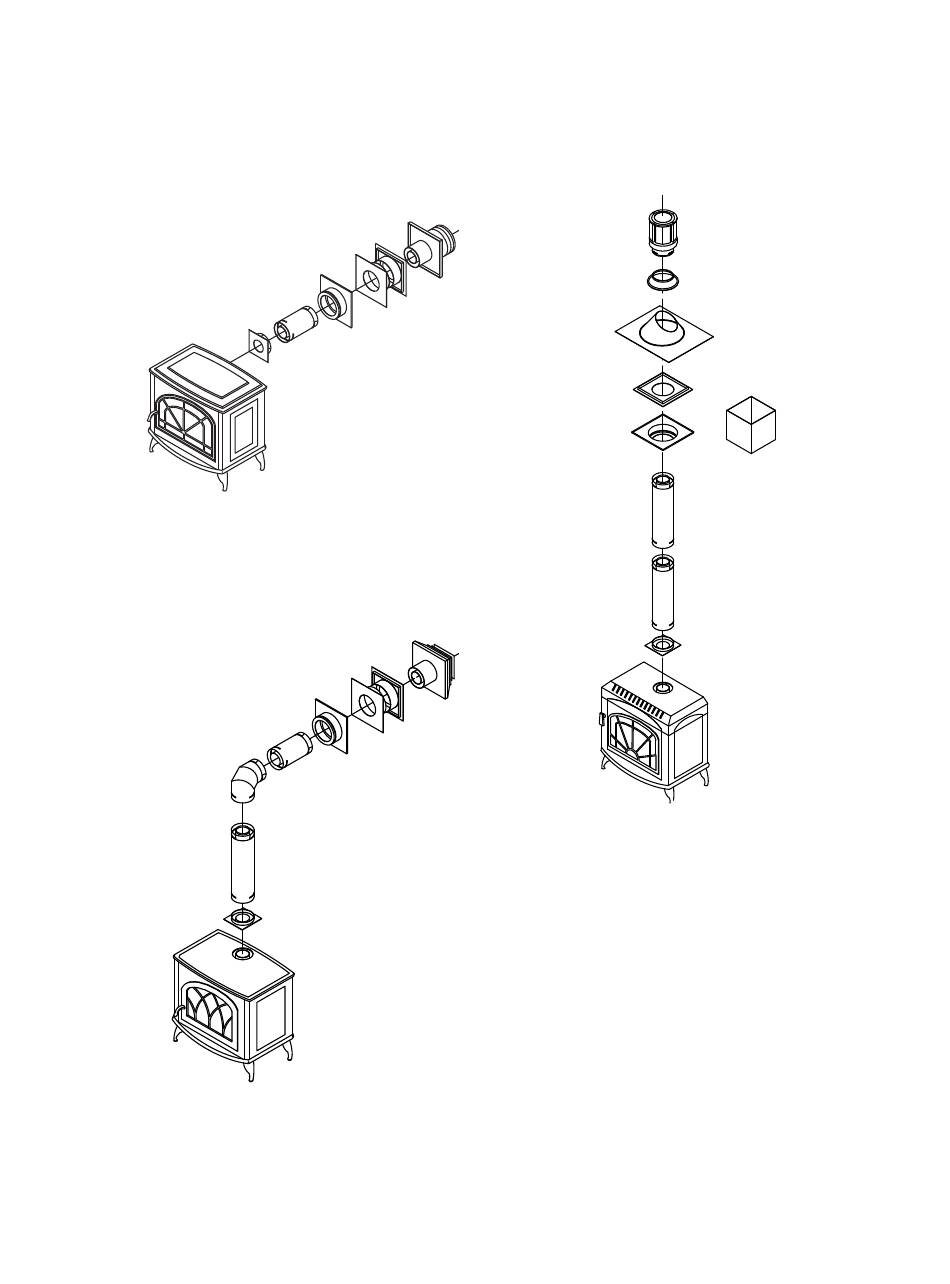

DECORATIVE CEILING
SUPPORT/WALL
THIMBLE COVER
APPLIANCE
ADAPTOR
PIPE
SECTION
Figure 23
DECORATIVE CEILING
SUPPORT/WALL
THIMBLE COVER
90°
PIPE
ELBOW
SECTION
PIPE
SECTION
APPLIANCE
ADAPTOR
Figure 24
ROUND, SCONCE OR
SQUARE HORIZONTAL
TERMINATION CAP
2 PIECE
WALL THIMBLE
ROUND, SCONCE OR
SQUARE HORIZONTAL
TERMINATION CAP
2 PIECE
WALL THIMBLE
DOO PLQLPXP FOHDUDQFHV VSHFL¿HG
by appliance manufacturer. When
installing DirectVent Pro vertically
WKURXJK ÀRRUV (Fig. 25) a Ceiling
)LUHVWRS LV UHTXLUHG DW HYHU\ ÀRRU
ceiling level. Refer to appliance
manufacturer installation instructions
for complete installation procedure.
NOTE: For the use of a non-
combustible insulation within the Wall
Thimble see page 4.
VERTICAL
HIGH WIND OR
LOW PROFILE
TERMINATION CAP
STORM
COLLAR
CEILING
FIRESTOP
ROUND CEILING
SUPPORT/WALL
THIMBLE COVER
PIPE
SECTION
PIPE
SECTION
APPLIANCE
ADAPTOR
Figure 25
ROOF
FLASHING
CATHEDRAL
CEILING
SUPPORT BOX
19
