CONFIGURING ADVANCED INPUT SETTINGS

MAIN MENU SETUP
INPUTS
MODE ADJUST
SPEAKERS
AUDIO CONTROLS
REAR PANEL CONFIG
SETUP
DISPLAYS
VOLUME CONTROLS
TRIGGER
LOCK OPTIONS
LIVE! CALIBRATION
MAIN ADVANCED
SETUP INPUTS DVD1 MAIN ADVANCED

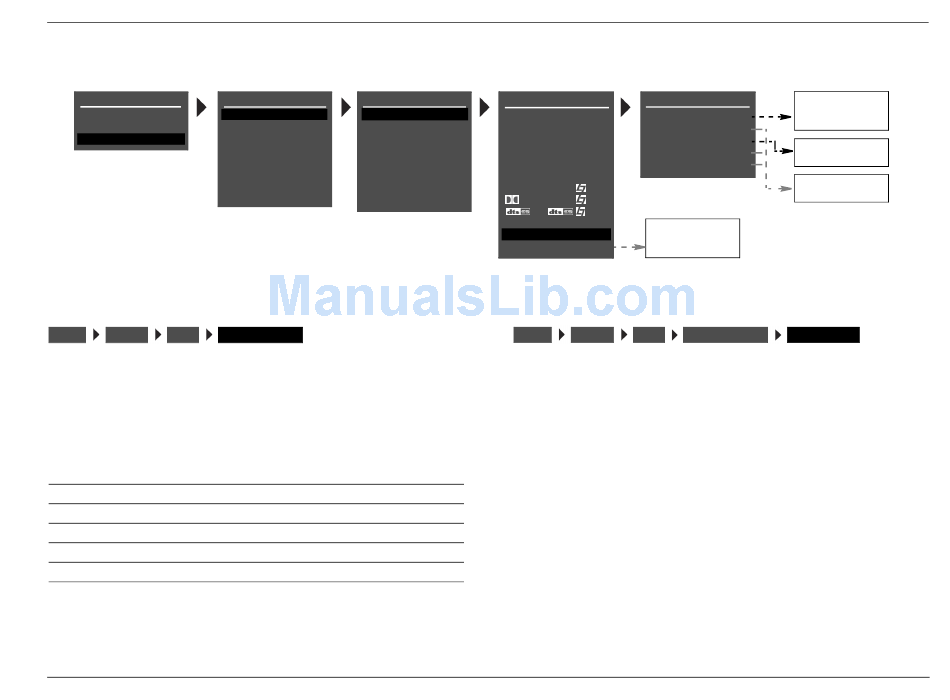

Selecting the INPUT SETUP menu MAIN ADVANCED option opens
the MAIN ADV menu shown above. The parameters on the left side
of this menu are identical, regardless of which input is selected. The
settings on the right side are adjustable. Default parameter settings
differ from input to input.
Parameter Possible Settings
INPUT SELECT DIGITAL, ANALOG, AUTO
2-CH ANLG BYP ON, OFF
S-Video 16:9 AUTO, OFF
S-Video OSD 4:3 ON, OFF
COMPONENT OSD ON, OFF
INPUT SETUP DVD1 INPUT SETUP
DVD1
NAME
DVD2
DIGITAL IN
SAT
ANALOG IN
VCR
ANLG IN LVL
TV
VIDEO IN
CD
COMPONENT IN
TUNER 2-CH
AUX
D
MIC
MAIN ADVANCED
ZONE2 IN
INPUT SELECT
SETUP
Controls the interaction of the digital and analog audio input
connectors assigned to the current Main Zone input. The INPUT
SETUP menu is used to assign one digital and one analog audio input
connector for the selected input. The table on page 3-19 describes
INPUT SELECT parameter settings.
When the Shift command bank is activated, the remote control 7/5
button is used to adjust the INPUT SELECT parameter by cycling
through the DIGITAL, ANALOG and AUTO settings.
Note:
When the INPUT SELECT parameter is set to AUTO, the MC-8 will not
select the assigned analog audio input connector when a valid digital
audio input source is present. Some DVD and CD players output digital
signals (data) when the player is paused or stopped or when the player is
powered on and the disc drawer is empty. When this occurs, the MC-8
automatically selects the assigned digital audio input connector.
