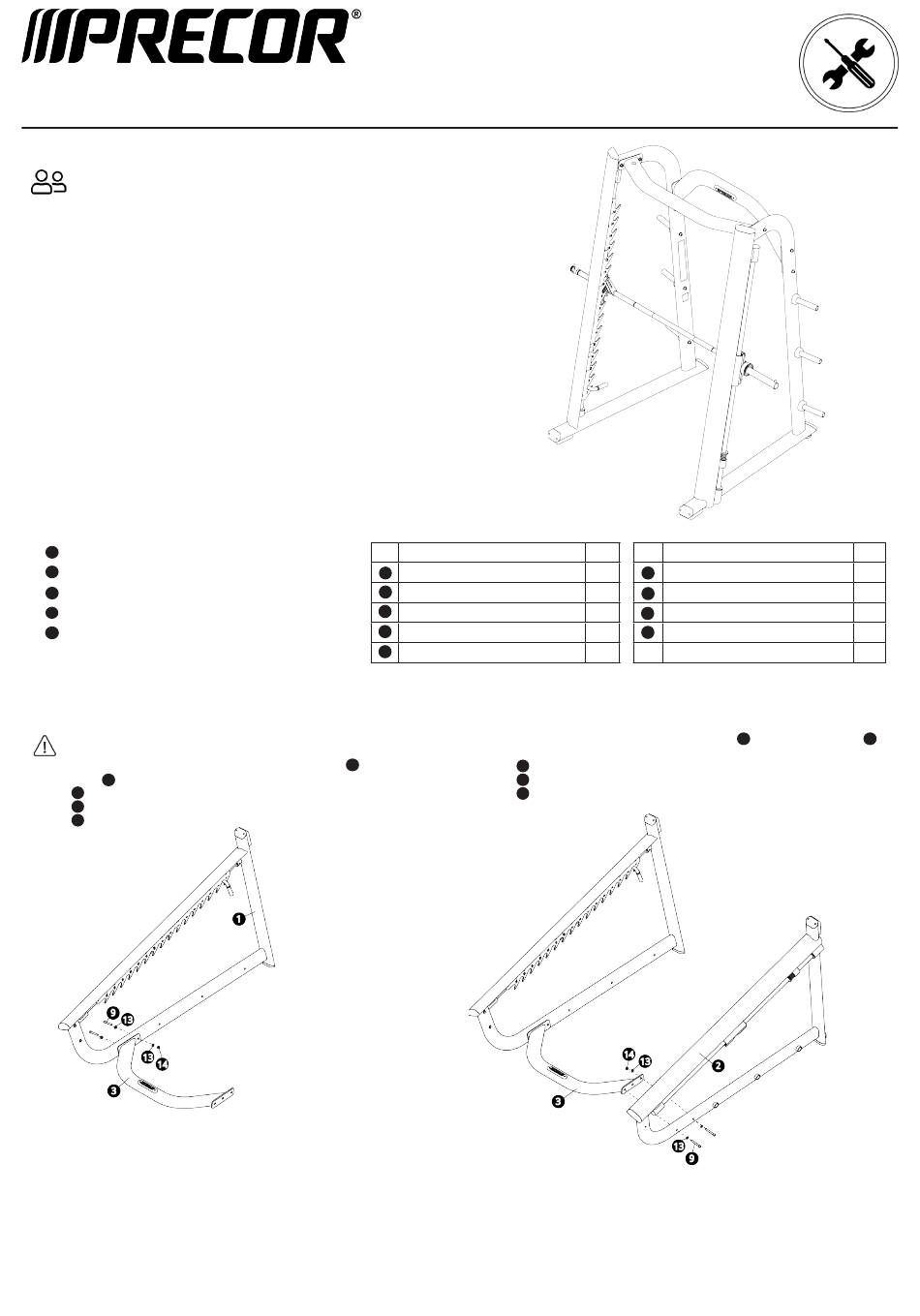

Precor Discovery Series Assembly Manual

Discovery® Plate-Loaded Series
DPL802 Smith Machine| Assembly Guide
Assembly Requirements
Precor recommends at least two people for this installation. DO NOT
attempt assembly by yourself.
When assembling the equipment, we recommend you:
• Follow the assembly instructions in order.
• Unpack the box(es) and assemble the equipment close to where you plan
to use it.
• Locate the equipment at least 40 inches (1 meter) away from walls or fur-
niture on either side of the equipment, and 40 inches (1 meter) away from
objects behind or in front of the equipment.
• Assemble the equipment on a solid, flat surface so it remains level and
stable.
• Do not fully tighten fasteners until instructed to do so.
• DO NOT move equipment without assistance.
Required Tools
• Torque wrench with torque range to at least 150 ft-lb (206 N-m) and fits
the following hex bits: 6, 8, and 10 mm
• Socket wrench sets, metric and standard, plus extensions
• Open-end wrench sets, metric and standard
• Hex wrench sets, metric and standard, plus extensions
• Philips screwdriver
Dimensions W = 2130 mm/84 inches; H = 2213 mm/87.2 inches; L = 1477 mm/58.2 inches
Net Weight = 413 lbs/187.4 kg
Max load weight = 300 lbs/136.1 kg per side (net load 600 lbs/272.2 kg)
Frame Components
Side frame, left
1 1
Side frame, right
2 2
Rear cross frame
3 3
Weight bar
4 4
Top cross frame
5 5
Frame Assembly
1. Attach left side frame to rear cross frame
CAUTION Lay a protective cloth on the ground to protect the paint
on standing frames during this step.
Over a protective cloth, have your assistant hold the left side frame up and attach the
rear cross frame using:
3 3
2 M12 x 85 mm socket head cap screws (SHCS)
9 9
6 13 mm flat washers
13 13
2 14 14 M12 nylon lock nuts
NOTE Hand-tighten only.
©2022 Precor Incorporated | Discovery Plate-Loaded Series
Hardware Kit
Name
6 6 Weight storage bar
7 7
Weight storage bar bumper
8 8
Weight plate retention pin
9 9
M12 x 85 mm socket head cap screw
10 10
M12 x 30 mm socket head cap screw
2. Attach right side frame to rear cross frame
With the unit still on its side, attach the rear cross frame
using:
1 1 2
9 9
6 13 mm flat washers
13 13
2
14 14
NOTE Hand-tighten only.
29 29
Qty Name
6 11 11 M12 x 25 mm socket head cap screw
6 12 12 Set screw M8
2 13 13 13 mm flat washer
14 14
8 M12 nylon lock nut
4
M12 x 85 mm SHCS (lower holes)
M12 nylon lock nuts
DPL802 Smith Machine | Assembly Guide | P/N CW39173-114B ENU | July 2022
Qty
6
6
24
6
to the right side frame
3 3 2 2
