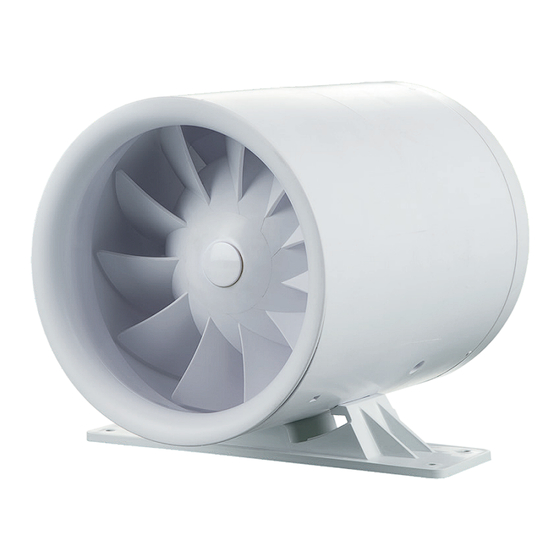

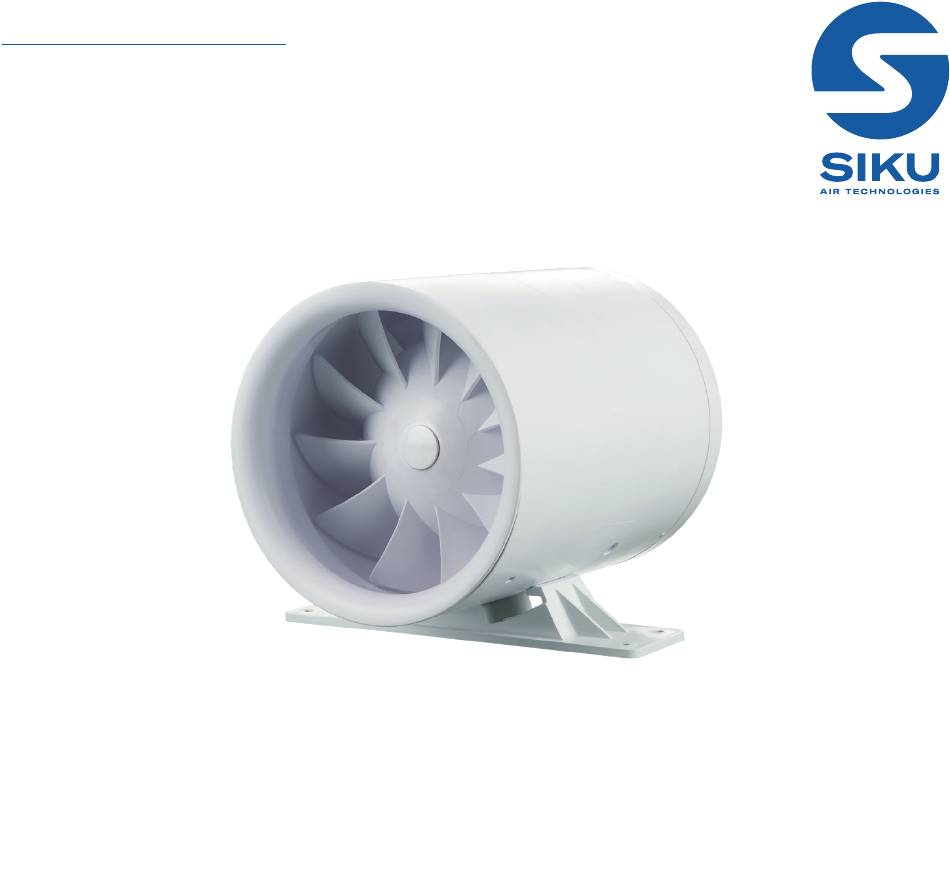

- Page 1 USER’S MANUAL SIKU Turbine Turbine AXIAL FANS...
-
Page 2: Table Of Contents
CONTENTS Delivery set ............................8 Brief description ..........................8 Operation guidelines ......................... 8 Designation key ..........................9 Installation ............................10 Electronics operation algorithm ....................... 10 Fan setup ............................12 Technical maintenance ........................13 Troubleshooting ..........................13 Storage and transportation regulations .................... 14 Manufacturer’s warranty ........................ -
Page 3: Safety Requirements
SAFETY REQUIREMENTS • This device is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities or lack thereof • Experience or lack of knowledge to be used unless supervised by a person responsible for their safety. - Page 4 • This is dangerous and not possible without specialist knowledge. Before carrying out any work, the device must be disconnected from the power supply. • The device may only be connected to the power supply by qualified personnel who are authorized to work on electrical systems with a nominal voltage of up to 1000 V.
-
Page 5: Delivery Set
DELIVERY SET Fan — 1 pc. Screws and dowels — 4 pcs. Self-tapping screws for fixing the bar* — 2 pcs. Mounting bracket (for Quietline-k fans) — 1 pc. Plastic screwdriver (only for the models with a timer) — 1 pc. Wire fixing bar * —... -
Page 6: Designation Key
DESIGNATION KEY Turbine 100 T Q black Colour _ : white black grey Motor modification _ : single-speed motor Duo: double-speed motor. Extra: two-speed high-powered motor Q: motor with reduced speed 12: low-powered motor with supply voltage of 12 V/50 Hz Additional modification : turn-off delay timer K: non-return valve... -
Page 7: Installation
INSTALLATION The fan is designed for vertical or horizontal installation into a round air duct of a matching diameter (Fig. 1-2). Caution! In case of vertical mounting, the fan must be protected against ingress of rainfalls and condensate inside the fan. Fan installation with direct air discharge upwards is not allowed (Fig. -
Page 8: Electronics Operation Algorithm
ELECTRONICS OPERATION ALGORITHM The Turbine T fan starts to operate when an external switch, such as a light switch, trips, and when applying power to the LT terminal. After the external switch is turned off the fan keeps operating for a set time period, adjustable from 2 to 30 minutes, and then turns off. - Page 9 Operation mode 4 (two-speed interval mode) The fan switches to the second speed after a set period of time (from 1 to 15 hours) and runs at the second speed from 2 to 30 minutes, then returns to the first speed. When an external switch, such as a light switch, is triggered, power is supplied to the LT terminal and the fan switches to the second speed.
-
Page 10: Fan Setup
FAN SETUP Turbine T fan (Fig. 16) To adjust the fan turn-off delay time, turn the control knob Toff clockwise to increase and counterclockwise to decrease the turn-off delay time respectively, adjustable from 2 up to 30 minutes. Turbine T DUO/Turbine 150 Extra T fan (Fig. 17) Modes 1, 2 and 3. -
Page 11: Technical Maintenance
TECHNICAL MAINTENANCE Disconnect the fan from power mains prior to any maintenance operations and take measures to prevent unintentional powerup until maintenance is complete. The fan maintenance periodicity is at least once per 6 months, depending on the operating conditions. The technical maintenance includes cleaning the surfaces of the fan from dust, dirt, and also in checking the reliability of electrical con- nections (Fig. -
Page 12: Storage And Transportation Regulations
STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5°C to + 40°C and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 13: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and elec- tromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 14 • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. • Unit connection to power mains with a voltage different from the one stated in the user’s manual. •...
- Page 15 ø D D, mm L, mm H, mm K, mm N, mm Turbine 100 Turbine-k 100 Turbine 125 Turbine-k 125 Turbine 150 Turbine-k 150...
- Page 17 Wiring diagrams Anschlussschemas Turbine Turbine DUO/Turbine Extra Quietline Quietline DUO/Quietline Extra speed 2: speed 2 2: Lüftungsstufe 2 3: Lüftungsstufe 1 3: speed 1 Turbine T Turbine T DUO/Turbine T Extra Quietline T Quietline T DUO/Quietline T Extra...
- Page 18 Turbine T Quietline T 2 min 30 min Turbine T DUP/Turbine T Extra Quietline T DUO/Quietline T Extra off & HS time 2 min 30 min 0 min 1 hour 2 min 15 hour...
- Page 21 Quality Sold by Inspector’s Stamp (name and stamp of the seller) Manufacture Date Purchase Date...
-
Page 23: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Turbine-k Turbine Extra The fan is recognized as serviceable. - Page 24 SIKU VertriebsgmbH | Sandstraße 13 | 2100 Stetten | Austria | Tel.: +43 2262 61 521 | www.siku.at | office@siku.at BDA_SIKU_Turbine_EN-2024-01...
