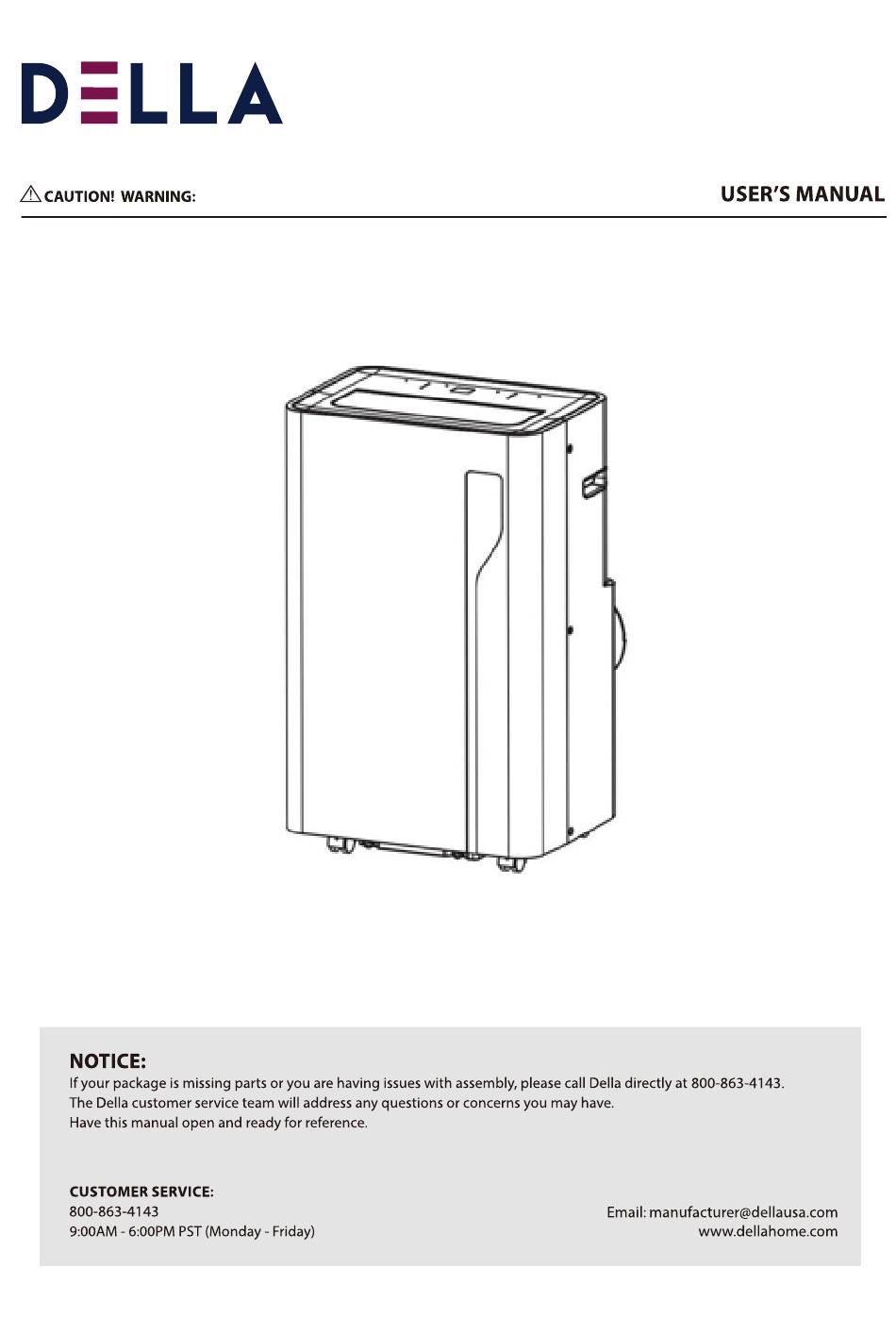

- Page 1 PORTABLE AIR CONDITIONER Model# 048-OPAC-9H Read all instructions before use this device. Product appearance and color may vary from pictures. Keep the manual properly for future reference.
-
Page 2: Table Of Contents
CONTENTS 1. BEFORE YOU BEGIN 2. FOR YOUR SAFETY 3. PRODUCT OVERVIEW 4. INSTALLATION 5. OPERATION 6. CLEANING AND CARE 7. TROUBLESHOOTING 8. DECOMMISSIONING... -
Page 3: Product Description
1. BEFORE YOU BEGIN 1.1 PRODUCT DESCRIPTION Our powerful portable air conditioners are great cooling solutions for single rooms, creating a comfortable atmosphere in your space. It also has ventilation and dehumidifying function for circulating air and removal of moisture. They're self-contained systems that do not require any permanent installation allowing you to move to the space in which it is most needed. - Page 4 Further information is available in the USER MANUAL, SERVICE MANUAL, and the like. Service personnel are required to carefully read the USER MANUAL and SERVICE MANUAL before operation.
- Page 5 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons. This appliance can be used by children aged from 8 years and ...
- Page 6 Component parts shall only be replaced with identical repair parts. FAILURE TO ABIDE BY THESE WARNING COULD RESULT IN AN EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE. Technical Specification Model Number 048-OPAC-9H Cooling Capacity (Ashrae)(BTU/h) 14,000 Heating Capacity (BTU/h) 11500 Power supply source 115V~60Hz/1PH Recommended Room Size (Up To)(Sq.
-
Page 7: Operational Precautions
2. FOR YOUR SAFETY Your safety is the most important thing we concerned! Please read this manual carefully and fully understand it before operating your appliance. WARNING OPERATIONAL PRECAUTIONS WARNING- to reduce the risk of fire, electric shock or injury to persons or property: ... - Page 8 Do not unplug by pulling on the power cord. Do not use an extension cord or an adapter plug. Do not put objects on the unit. Do not climb or sit on the unit. Do not insert fingers or other objects into the air outlet. ...
- Page 9 Keep any required ventilation openings clear of obstruction. The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle...
- Page 10 SAFETY PRECAUTIONS ON SERVICING Please follow these warnings when to undertake the following when servicing an appliance with R32. 2.2.1 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized.
- Page 11 2.2.6 No ignition sources No person carrying out work concerning a refrigeration system that involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
- Page 12 – refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.
-
Page 13: Product Diagram
3. PRODUCT OVERVIEW 3.1 PRODUCT DIAGRAM Air inlet with Drain opening Control panel air filter with sealing plug Air outlet with Recessed adjustable Castor handle louver Front Panel Air Exhaust Note: The appearance is only for reference. Please see the real product for detailed information. - Page 14 FEATURES High Capacity in a compact size with cooling, dehumidifying and fan function. Temperature setting and display LED Digital display Electronic control with built-in timer, sleep mode Self-evaporating system for better efficient Auto shut off when tank full ...
-
Page 15: Installation
4. INSTALLATION UNPACKING Unpack the carton and take the appliance and accessories out. Check the device after unpacking for any damage or scratches on Accessories: 1. Exhaust hose 2. Hose connector 3. Window kit adapter ... - Page 16 Choose your location If tipped more than 45°, allow the unit to set upright for at least 24 hours before starting up. Place the unit on a firm, level surface in an area with at least 50cm of free space around it to allow for proper air circulation.
- Page 17 ATTACH THE EXHAUST HOSE The air conditioner requires being vented outside so that the exhaust air can escape the room which coming from the appliance contains waste heat and moisture. Do not replace or extend exhaust hose which will result in decreased efficiency, even worse shut down the unit due to low back pressure.
- Page 18 Step 4: Close your window to secure the kit in place. It needs to hold the It is windows kit firmly in place, secure the window kit with duct tape if required. recommended that t he gap between the adapter and the sides of the window should be sealed off for maximum efficiency.
- Page 19 Step 7: Adjust the louver at the air outlet, and then switch on the unit.
- Page 20 Installation Guide Grounding This product must be grounded.lf it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. For additional safety, the power cord features an integrated circuit breaker, Test and reset the buttons are provided on the plug case.
-
Page 21: Operation
OPERATION CONTROL PANEL AND DISPLAY POWER Press to switch the machine on or off. Press to switch the operation mode between cool, MODE dry, fan and heat. MODE This display the Mode Setting between cool, dry, fan Indicator and heat. Press to turn sleep mode on or off. - Page 22 WIFI indicator flashes again. WIFI Connected ● Method 1 Connected via Bluetooth Open the Bluetooth of your mobile phone or other device. When WIFI indicator flashes, open “DELLA+” APP, the unit will connect via Bluetooth automatically.
- Page 23 ● Method 2 When WIFI indicator flashes, select “Add Device”-“Large Home Appliances”-“Portable Air Conditioner”, and follow the instructions on the display. Check the status of the WIFI indicator and choose the correct status. If the WIFI indicator flash rapidly, it can connect directly. If the WIFI indicator flash slowly, press “Go to Connect”...
-
Page 24: Remote Control
5.2 REMOTE CONTROL... -
Page 25: Startup And Shutdown
5.3 SETTINGS 5.3.1 Start-up and Shutdown Press POWER to turn on the unit. Press MODE button to select the desired operation mode. Press POWER again to turn off the power. 5.3.2 Operation mode The unit has four operation modes: Cool, dehumidifier, fan, sleep. The unit working temperature under cooling mode is 61℉-95℉. - Page 26 D. Drying your room Press MODE button on the control panel or remote control, the dry indicator lights up. The fan speed is unable to select. User should connect the hose to the drain outlet at the bottom of the unit. Note: In this mode, the fan speed switches over to low speed and cannot be selected.
-
Page 27: Timer Setting
5.3.3 TIMER SETTING （1hour-24hours）: The timer has two ways of operation: Press Timer key to Press Up /Down To turn off turn on the timer repeatedly to set the (When power on) function. delay OFF time. Press Up /Down Press Timer key to To turn on repeatedly to set the turn on the timer... -
Page 28: Manual Drainage
5.4 DRAINAGE Manual drainage: 1）When the machine stops after the water is full, please unplug the power plug. Notes: Please move the machine carefully, so as not to spill the water in the water pan at the bottom of the body. 2）Place the water container below the side water outlet behind the body. -
Page 29: Continuous Drainage
Continuous drainage The self-evaporating system uses the collected water to cool the condenser coils for better efficient performance. It is no need to empty the drainage tank in cooling operation except in drying operation and high humidity conditions. The condensate water evaporates at the condenser and evacuated through the exhaust hose. -
Page 30: Cleaning And Care
6. CLEANING AND CARE 6.1. CLEANING THE AIR FILTER (every two weeks) Dust collects on the filter and restricts the airflow. The restricted airflow reduces the efficiency of the system and if it becomes blocked it can cause damage to the unit. The air filter requires regular cleaning. - Page 31 6.2. CLEANING UP OF REFRIGERANT General Measures: 1. Gas/vapor heavier than air. May accumulate in confined spaces, particularly at or below ground level. 2. Eliminate every possible source of ignition. 3. Use appropriate personal protection equipment (PPE). 4. Evacuate unnecessary personnel, isolate, and ventilate area. 5.
-
Page 32: Troubleshooting
7. TROUBLESHOOTING Symptom Inspection Solution Check the power Insert the power cord connection in securely. securely into the wall Outlet. The unit is not Check if the water level Empty the drain pan by indicator lights up? remove the rubber plug. -
Page 33: Decommissioning
8. DECOMMISSIONING 8.1. STORAGE Long-Term Storage - If you will not be using the unit for an extended period of time (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps: Unplug the unit and r emove exhaust hose and window kit store with the...
