PORTABLE AIR CONDITIONER
Model# 048-OPAC-5
Read all instructions before use this device.
Product appearance and color may vary from pictures.
Keep the manual properly for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 048-OPAC-5 and is the answer not in the manual?

Questions and answers

CANDIDA FEREGRINO
August 7, 2025

HOW TO FIX AN AC WITH THE ERROR E2?

Summary of Contents for DELLA 048-OPAC-5

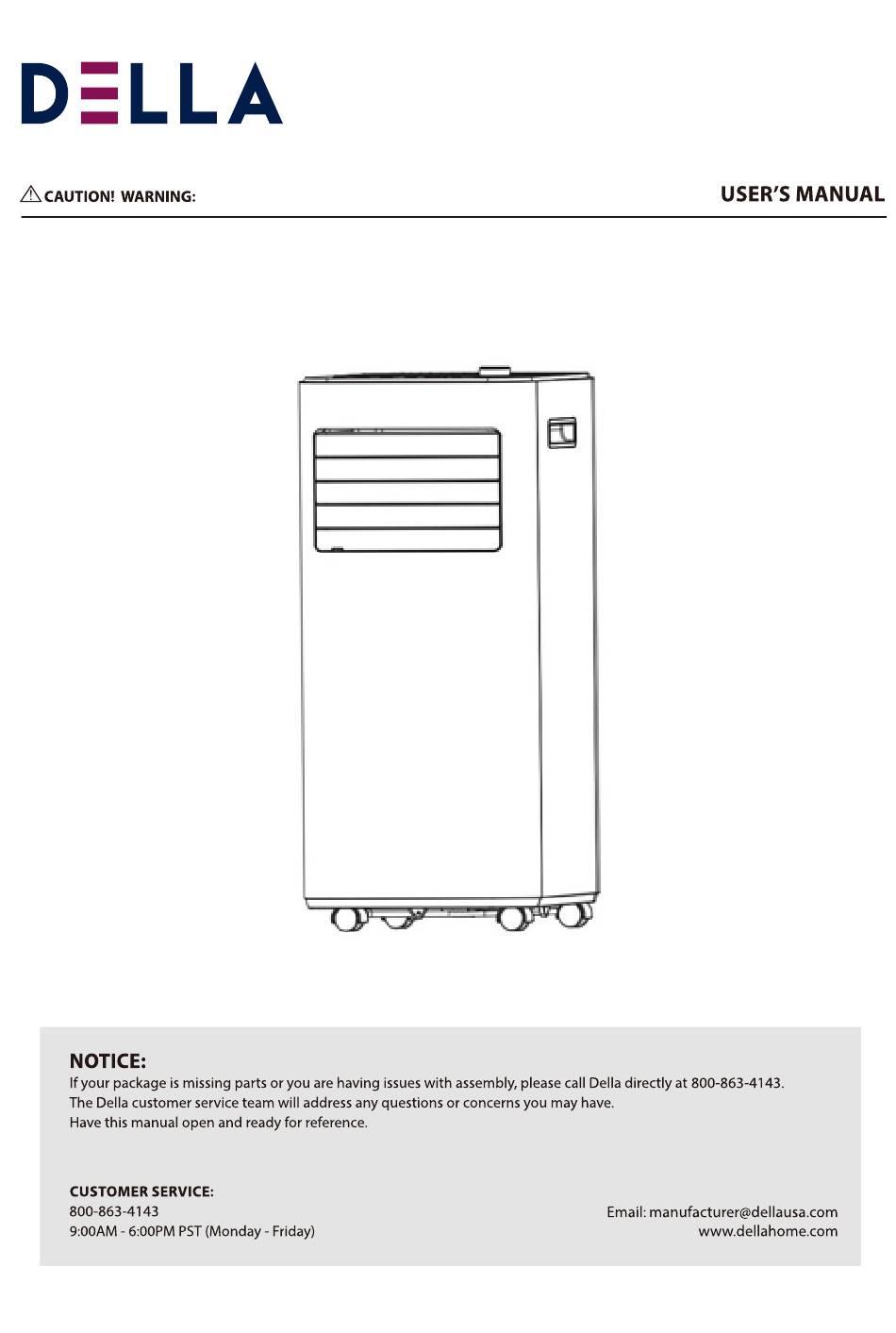

  • Page 1 PORTABLE AIR CONDITIONER Model# 048-OPAC-5 Read all instructions before use this device. Product appearance and color may vary from pictures. Keep the manual properly for future reference.
  • Page 2 CONTENTS 1. BEFORE YOU BEGIN 2. FOR YOUR SAFETY 3. PRODUCT OVERVIEW 4. INSTALLATION 5. OPERATION 6. CLEANING AND CARE 7. TROUBLESHOOTING 8. DECOMMISSIONING...
  • Page 3 1. BEFORE YOU BEGIN 1.1 PRODUCT DESCRIPTION Our powerful portable air conditioners are great cooling solutions for single rooms, creating a comfortable atmosphere in your space. It also has ventilation and dehumidifying functions for circulating air and removal of moisture. They're self-contained systems that do not require any permanent installation allowing you to move to the space in which it is most needed.
  • Page 4 Further information is available in the USER MANUAL, SERVICE MANUAL, and the like. Service personnel are required to carefully read the USER MANUAL and SERVICE MANUAL before operation.
  • Page 5 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY This appliance is intended to be used by expert or trained users in  shops, in light industry and on farms, or for commercial use by lay persons. This appliance can be used by children aged 8 years and above and ...
  • Page 6  Component parts are designed for R32 gas and are non- incentive and non-sparking. Component parts shall only be replaced with identical repair parts. FAILURE TO ABIDE BY THESE WARNING COULD RESULT IN AN EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE.
  • Page 7 2. FOR YOUR SAFETY Your safety is the most important thing we concerned about! Please read this manual carefully and fully understand it before operating your appliance. WARNING OPERATIONAL PRECAUTIONS WARNING- to reduce the risk of fire, electric shock or injury to persons or property: ■...
  • Page 8 unit. ■ Do not unplug the unit while it is operating. ■ Do not unplug the unit by pulling on the power cord. ■ Do not use an extension cord or an adapter plug. ■ Do not put objects on the unit. ■...
  • Page 9 installed in an unventilated space, if that space is smaller than 4 m².  Compliance with national gas regulations shall be observed.  Keep any required ventilation openings clear of obstruction.  The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
  • Page 10 SAFETY PRECAUTIONS ON SERVICING Please follow these warnings when to undertake the following when servicing an appliance with R32. 2.2.1 Checks to the area Before beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized.
  • Page 11 2.2.6 No ignition sources No person carrying out work concerning a refrigeration system that involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repair, removal, and disposal, during which flammable refrigerant can be released into the surrounding space.
  • Page 12 – Refrigeration pipes or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant-containing components unless the components are constructed of materials that are inherently resistant to being corroded or are suitably protected against being so corroded.
  • Page 13 3. PRODUCT OVERVIEW 3.1 PRODUCT DIAGRAM Air inlet with Control panel Drainage Hole air filter Air outlet with adjustable Caster Air Exhaust louver Handle Note: The appearance is only for reference. Please see the real product for detailed information.
  • Page 14 FEATURES High Capacity in a compact size with cooling, dehumidifying  and fan function. Temperature setting and display  LED Digital display  Electronic control with built-in timer, sleep mode  Self-evaporating system for better efficiency  Auto shut off when tank full ...
  • Page 15 4. INSTALLATION 1. UNPACKING Unpack the carton and take the appliance and accessories out.  Check the device after unpacking for any damage or scratches on  Accessories:  1. Exhaust hose  2. Hose connector  3. Window kit adapter ...
  • Page 16 2. Choose your location If tipped more than 45°, allow the  unit to set upright for at least 24 hours before starting up. Place the unit on a firm, level surface  in an area with at least 50cm of free space around it to allow for proper air circulation.
  • Page 17 3. ATTACH THE EXHAUST HOSE The air conditioner requires being vented outside so that the exhaust air can escape the room which comes from the appliance and contains waste, heat, and moisture. Do not replace or extend the exhaust hose which will result in decreased efficiency, even worse shut down the unit due to low back pressure.
  • Page 18 It is windows kit firmly in place, secure the window kit with duct tape if required. recommended that t he gap between the adapter and the sides of the window should be sealed off for maximum efficiency. Step 5: Attach the hose connector to the exhaust air outlet of unit. Step 6: Adjust the length of the flexible exhaust hose to make sure the distance between the unit and the window will be more than 70cm, and the height from the exhaust hose to the floor will be more than 90cm.
  • Page 19 Step 7: Adjust the louver at the air outlet, and then switch on the unit.
  • Page 20 OPERATION CONTROL PANEL AND DISPLAY POWER Press to switch the machine on or off. Press to switch the operation mode among Cool, dry, MODE fan. SPEED Press to switch the fan speed between HIGH and LOW Sets a time for the unit to automatically start or stop. TIMER/WIFI Long press this button to start the network configuration or disconnect the WIFI.
  • Page 21 A prerequisite is a permanent WIFI connection to your router and the free app “DELLA+”. 1. Install the “DELLA+” app. Create a user account. 2. Activate the WIFI function in the settings of your appliance. 3. Place the appliance at a distance of about 5 meters from your router.
  • Page 22 ● Method 2 When the WIFI indicator flashes, select “Add Device”- “Large Home Appliances”- “Portable Air Conditioner”, and follow the instructions on the display. Check the status of the WIFI indicator and choose the correct status. If the WIFI indicator flashes rapidly, it can be connected directly. If the WIFI indicator flashes slowly, press “Go to Connect”...
  • Page 23 5.2REMOTE CONTROL...
  • Page 24 5.3 SETTINGS 5.3.1 Start-up and Shutdown Press POWER to turn on the unit. Press MODE button to select the desired operation mode. Press POWER again to turn off the power. 5.3.2 Operation mode The unit has four operation modes: Cool, dehumidifier, fan, sleep. The unit working temperature under cooling mode is 61℉-95℉.
  • Page 25 C. Drying your room Press MODE button on the control panel or remote control, and the dry indicator lights up. The fan speed is unable to be selected. User should connect the hose to the drain outlet at the bottom of the unit. Note: In this mode, the fan speed switches over to low speed and cannot be changed.
  • Page 26 5.3.3 TIMER SETTING (1hour-24hours): The timer has two ways of operation: Press Timer key to Press Up /Down To turn off turn on the timer repeatedly to set the (When power on) function. delay OFF time. Press Up /Down Press Timer key to To turn on repeatedly to set the turn on the timer...
  • Page 27 5.4 DRAINAGE Manual drainage: 1)When the machine stops after the water is full, please unplug the power plug. Notes: Please move the machine carefully, so as not to spill the water in the water pan at the bottom of the body. 2)Place the water container below the side water outlet behind the body.
  • Page 28 Continuous drainage The self-evaporating system uses the collected water to cool the condenser coils for better efficient performance. There is no need to empty the drainage tank in cooling operation except in drying operation and high humidity conditions. The condensation water evaporates at the condenser and is evacuated through the exhaust hose.
  • Page 29 6. CLEANING AND CARE 6.1. CLEANING THE AIR FILTER (every two weeks) Dust collects on the filter and restricts the airflow. The restricted airflow reduces the efficiency of the system and if it becomes blocked it can cause damage to the unit. The air filter requires regular cleaning.
  • Page 30 6.2. CLEANING UP OF REFRIGERANT General Measures: 1. Gas/vapor is heavier than air. It might accumulate in confined spaces, particularly at or below ground level. 2. Eliminate every possible source of ignition. 3. Use appropriate personal protection equipment (PPE). 4. Evacuate unnecessary personnel, isolate, and ventilate the area. 5.
  • Page 31 7. TROUBLESHOOTING Symptom Inspection Solution  Check the power  Insert the power cord connection is secure. securely into the wall outlet. The unit is  Check if the water level  Empty the drain pan by indicator lights up? removing the rubber plug.
  • Page 32 8. DECOMMISSIONING STORAGE Long-Term Storage - If you will not be using the unit for an extended period of time (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps: Unplug the unit and r emove exhaust hose and window kit store with the unit.
  • Page 33 Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
