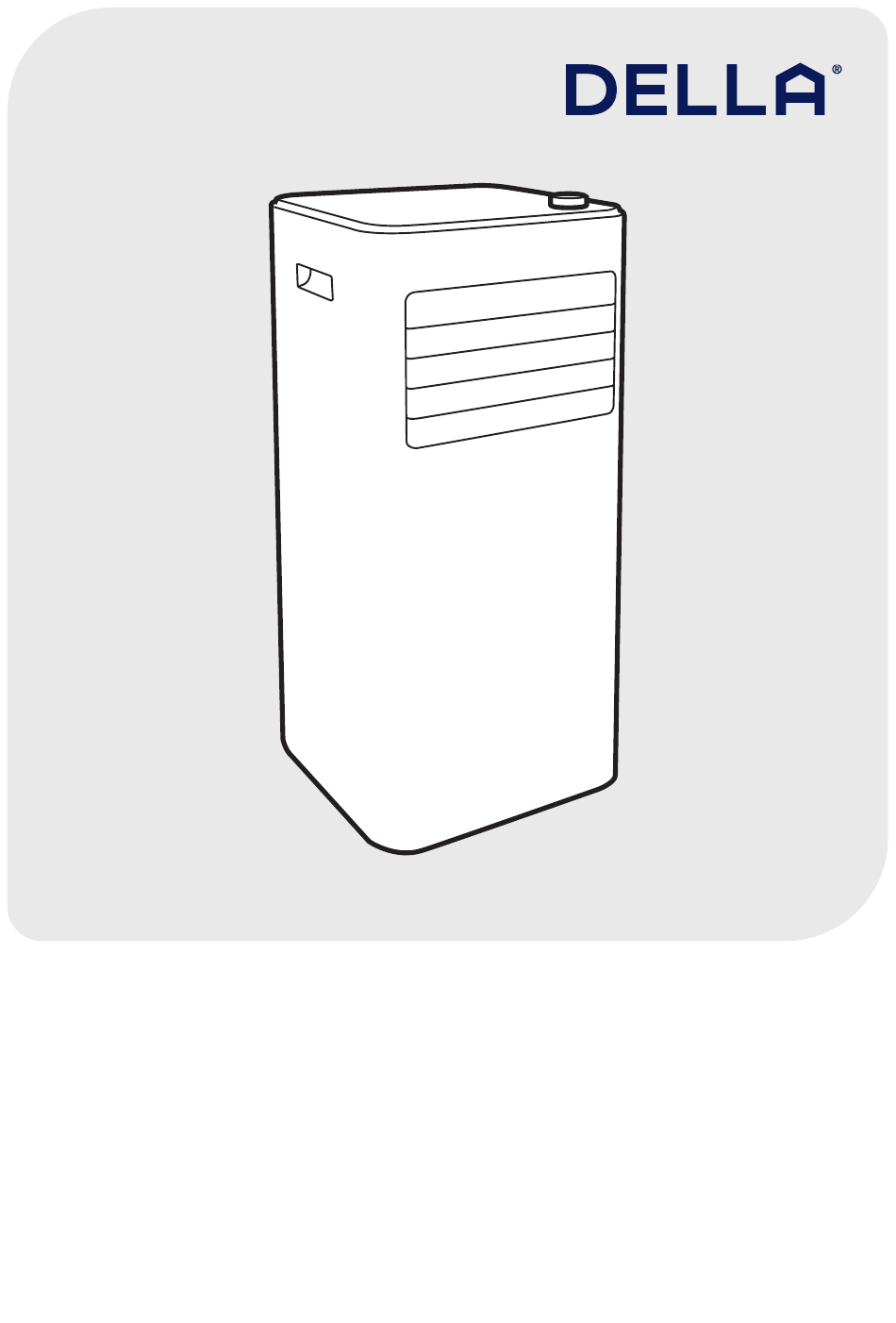

- Page 1 048-OPAC-5 048-OPAC-6 Instruction Manual This manual contains the information you need to install and use your product. Keep the this manual for future reference.
-
Page 3: Table Of Contents
Table of Contents Warning and Safety ------------------------------------------------------------------------- Product Specification ---------------------------------------------------------------------- Parts Details ----------------------------------------------------------------------------------- Installation Guide ---------------------------------------------------------------------------- Control Panel ---------------------------------------------------------------------------------- Remote Control ------------------------------------------------------------------------------- Operation Instructions --------------------------------------------------------------------- Care and Maintenance -------------------------------------------------------------------- Troubleshooting ------------------------------------------------------------------------------ Disposal Guideline ---------------------------------------------------------------------------... -
Page 4: Warning And Safety
Warning and Safety *Read this guide before installation and using this appliance. Failure to follow the safety instructions may result in property damage, serious injury, or death. DANGER WARNING CAUTION Indicates an imminently Indicates a potentially Indicates a potentially hazardous situation that, if not hazardous situation that, if not hazardous situation that, if not avoided, will result in death,... - Page 5 Warning and Safety CAUTION • Do not run the power cord under the carpet or cover the cord with throw rugs, runners, or similar covering. Arrange the cord away from high traffic area to prevent tripping over it. • Only use this appliance as described in this manual. •...
-
Page 6: Product Specification
Product Specification Model 048-OPAC-5 048-OPAC-6 Rated Voltage 115 V 115 V Frequency 60 Hz 60 Hz Cooling Capacity (Ashrae) 8000 BTU / h 10000 BTU / h Recommended Room Size Up to 350 sq.ft Up to 450 sq. ft Dehumidification 47.96 Pint / Day... -
Page 7: Parts Details
Parts Details Control Panel ‣ Page 13 Air Outlet Carrying Handle Air Filter ‣ Page 22 Upper Drain Outlet Air Exhaust ‣ Page 10 Bottom Drain Outlet Power Cable NOTE: • The graphical representation might have slight differences than the actual product. v.02222024... - Page 8 Parts Details Window Slider Kit Drain Hose Exhaust Hose Hose Connector Window Kit Adapter Instruction Manual...
-
Page 9: Installation Guide
Installation Guide Picking a installation location ≥50cm / 19.7" ≥50cm / 19.7" • The air conditioner must be placed on a flat ground. • Keep the air conditioner at least 50 cm or 19.7" away from any wall or obstacles. •... - Page 10 Installtion Guide Extending the window slider kit • Adjust the length of the window slider kit according to your window, and then secure the position with the provided screws. Attaching exhaust hose to the unit • Slide the hose connector to the air exhaust on the unit, and attach the window kit adapter to the window slider kit.
- Page 11 Installtion Guide Connecting exhaust hose to the window Vertical Window Horizontal Window Foam Seal Foam Seal Attach foam seal to the window sash and the window frame. Place the window slider kit between the window sach and window frame. v.02222024...
- Page 12 Installtion Guide • Exhaust hose should be kept to a minimum length and as straight as possible. • Stretching or bending the duct excessively will decrease cooling efficiency. Instruction Manual...
-
Page 13: Control Panel
Control Panel Sleep Lock Timer/wifi Speed Mode Power Turning Knob / Display • Adjust temperature / timer setting. ‣ Page 16-18 Icon Button Name Function ‣ Page 16 Power Button Power ON / OFF the air conditioner ‣ Page 16, 17 Mode Button Change the operation mode setting Fan Speed... -
Page 14: Remote Control
Remote Control Icon Button Name Function ‣ Page 16 Power Button Power ON / OFF the air conditioner ‣ Page 16 Cool Button Shortcut for cool mode ‣ Page 16 Dry Button Shortcut for dry mode ‣ Page 17 Fan Button Shortcut for fan mode Up / Down ‣... - Page 15 Remote Control Changing Remote Control Battery Remove the back cover and insert 2 new AAA 1.5v batteries.(not included) Re-install the back cover to the remote control. WARNING • Do not use rechargeable batteries. • Replace the old batteries with new ones of the same type. •...
-
Page 16: Operation Instructions
Operation Instructions Power ON / OFF Press on the control panel or on the remote control to turn on the unit. Press on the control panel or on the remote control again to turn off the unit. Cool Mode Press on the control panel or on the remote control to select cool mode. - Page 17 Operation Instructions Fan Mode Press on the control panel or on the remote control to select fan mode. indicator will lights up on the control panel. Press on the control panel or on the remote control to adjust fan speed. Sleep Mode Press on the control panel or...
- Page 18 Operation Instructions Turn ON Timer Make sure the air conditioner is OFF. Press on the control panel or on the remote control to begin setting turn on timer. Turn the knob on the control panel or press on the remote control to set the desired time.
- Page 19 Operation Instructions Automatic Defrost At low room temperature, fost may build up at the evaporator during operation. The unit will automatically start defrosting and the power indicator will blink. The defrost control sequence is as follows: • When the unit operates in cooling or drying mode, and the ambient temperature sensor detects the evaporator coil temperature is below 30°F, the compressor will stop operating for 10 minutes or with the coil temperature raises up to 44°F.
- Page 20 Operation Instructions Grounding This product must be properly grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. For additional safety, the power cord features an integrated circuit breaker. Test and reset the buttons provided on the plug.
- Page 21 Operation Instructions Water Drainage Bottom Drain Outlet • When the internal water tank is full, the digital display will show “FL” error code. • Carefully move the air conditioner to a drain location, then remove the bottom drain plug and drain the water.
-
Page 22: Care And Maintenance
Care and Maintenance CAUTION • Before cleaning the unit, you must shut down the machine and cut off the power supply. • Never flush the air conditioner with water. Clean the Unit Clean the heater with a soft dry cloth or a damped cloth with neutral detergent. NOTE: •... - Page 23 Care and Maintenance Storage If you will not be using the unit for an extended period of time, it is best to clean and dry out the unit completely. Unplug the unit from power outlet and detatch exhause hose and window sliding kit from the unit. Drain the remaining water from the unit.
-
Page 24: Troubleshooting
Troubleshooting Problem Possible Causes Power failure / plug pulled out Power breaker tripped The appliance is nonoperational Full water tank Outside of operation temperature Obstruction on the vent Dirty air filter The appliance is working in reduced capacity Room is too big / window and / or door are open Exhaust hose is not properly attached Water Leak Full water tank... -
Page 25: Disposal Guideline
Disposal Guideline This appliance contains refrigerant and other potentially hazardous materials. When disposing the appliance, follow all federal, state and local regulations. DO NOT dispose of this product as normal household waste or unsorted municipal waste. When disposing this appliance, you have the following options: •... - Page 26 Model: 048-OPAC-5 / 048-OPAC-6 ID: 2ANDL-WBR3 FCC Caution This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 27 v.02222024...
- Page 28 DELLA. Every effort has been made to ensure that the information in this document is accurate, DELLA is not responsible for printing or clerical errors. All trademarks, logos, and brand names are the property of their respective companies.
