OSP Home Furnishings EM39800 Assembly Instructions

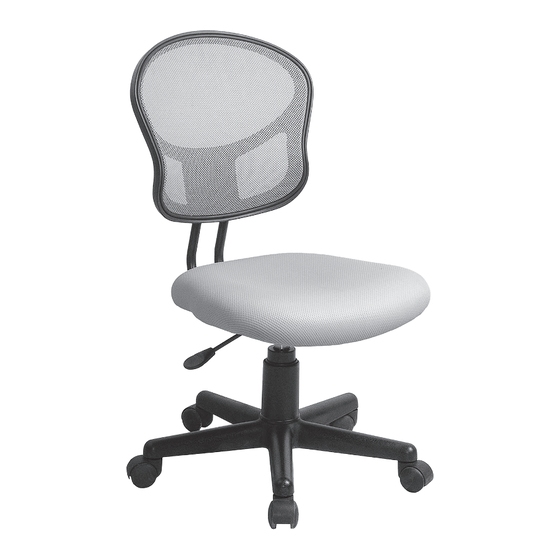

Mesh back task chair

Download this manual

April, 2023

EM39800

MESH BACK TASK CHAIR

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Need help?

Do you have a question about the EM39800 and is the answer not in the manual?

Page 1 April, 2023 EM39800 MESH BACK TASK CHAIR Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
Page 2 1-800-950-7262, Monday through Friday 8:00 a.m. - 3:30 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: ®...
Page 3 PARTS (1) Base (1 PC) (2) Casters (5 PCS) (4) Seat Plate (1 PC) (3) Pneumatic Cylinder w/ Bellows (1 PC) (6) Backrest (1 PC) (5) Seat Cushion (1 PC) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Short Screw 4 PCS Medium Screw 2 PCS Long Screw...
Page 4 STEPS Remove all the parts from carton, separate them into part numbers indicated on the list and make sure part quantities are correct. STEP 1 Insert five Casters (2) into Base (1), push hard until you feel or hear Caster (2) snap into place. Insert Pneumatic Cylinder w/ Bellows (3) into Base (1).
