Summary of Contents for Megger Pro Circuit Checker

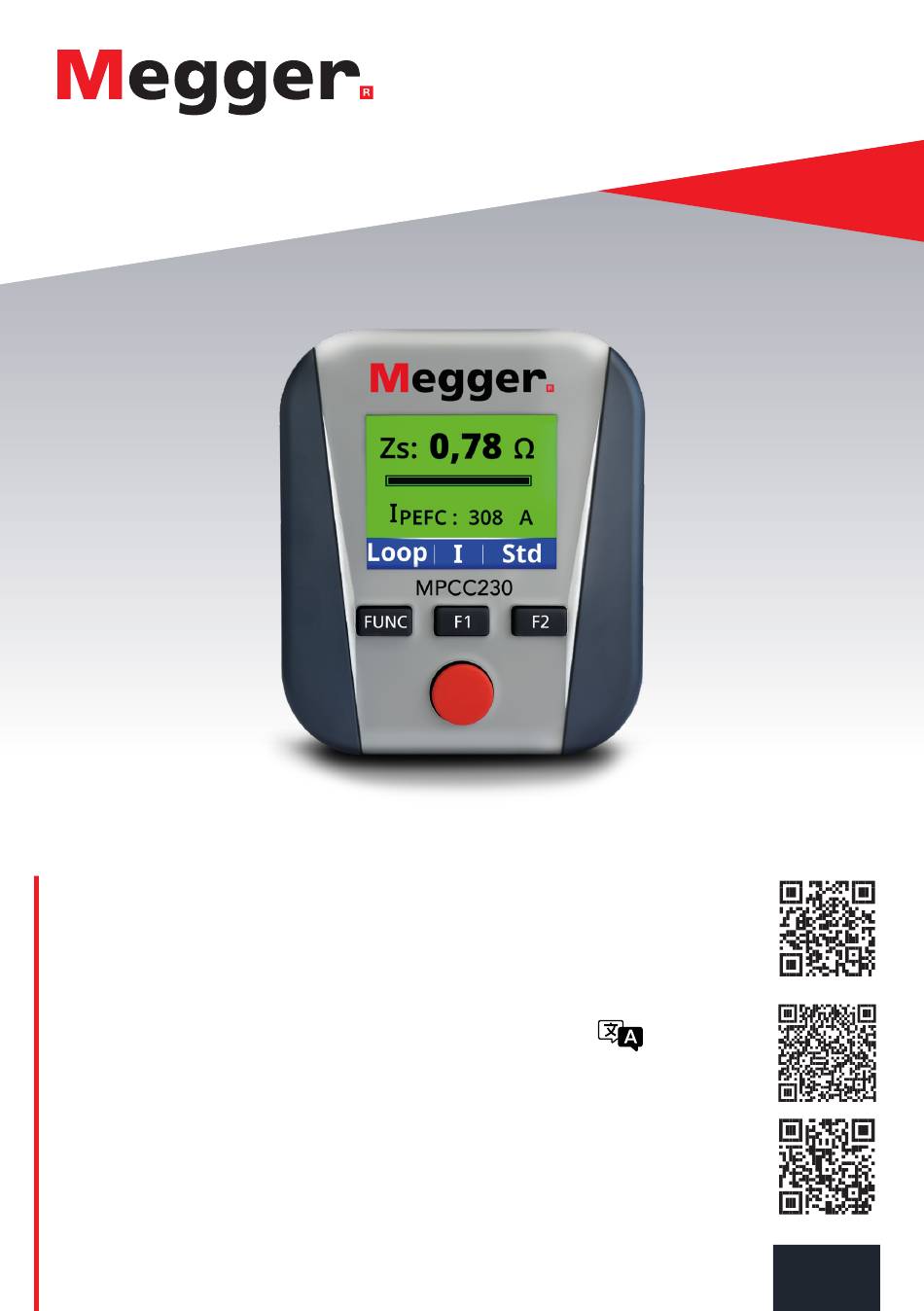

- Page 1 MPCC230 Register Megger Pro Circuit Checker megger.com/register User Guide User Guide Firmware updates Support megger.com/support English...
- Page 2 Megger Limited, Archcliffe Road, Dover, Kent CT17 9EN. ENGLAND T +44 (0)1304 502101 F +44 (0)1304 207342 www.megger.com Megger Limited reserves the right to alter the specification of its products from time to time without notice. Although every effort is made to ensure the accuracy of the information contained within this document it is not warranted or represented by Megger Limited to be a complete and up - to - date description.
-
Page 3: Declaration Of Conformity
Limited described in this user guide is in compliance with Directive 2014/53/EU. Other equipment manufactured by Megger Instruments Limited described in this user guide is in compliance with Directives 2014/30/EU and 2014/35/EU where they apply. The full text of Megger Instruments EU declarations of conformity are available at the following internet address: megger.com/company/about-us/eu-dofc www.megger.com... -
Page 4: Table Of Contents
LOOP 4.3.1 Test modes: 4.3.2 LOOP test operation 4.3.3 LOOP TT and TN HAR voltage harmonics 4.4.1 Test mode: 4.4.2 Harmonics function MEM Memory / REPORT 4.5.1 Operation 4.5.2 Report create 4.5.3 MEMORY 5. Maintenance General maintenance Cleaning www.megger.com MPCC230... - Page 5 6. Specifications 7. Calibration, Repair and Warranty Calibration, Service and Spare Parts Approved Repair Companies Return procedure 8. Decommissioning WEEE Directive Battery disposal 9. Worldwide Sales Offices www.megger.com MPCC230...
-
Page 6: Introduction
Read the ensuing safety regulations attentively before using this device. Company web site Occasionally an information bulletin may be issued via the Megger web site. This may concern new accessories, new usage instructions or a software update. Please occasionally check on the Megger web site for anything applicable to your Megger instruments. -
Page 7: Safety Warnings And Standards
Personal protective equipment should be used if there are ACCESSIBLE HAZARDOUS LIVE PARTS in the installation where measurement is to be carried out. „ Do not use on or around uninsulated hazardous live conductors where a potential to cause electric shock, electrical burns or arc flash exists. www.megger.com MPCC230... -
Page 8: Installation Category Definitions
EU conformity. Equipment complies with current EU directives. Conforms to relevant Australian Safety and EMC standards >250 V Prohibited to use for Electrical System which used the voltage above 250 V. Do not dispose of in the normal waste stream. www.megger.com MPCC230... -

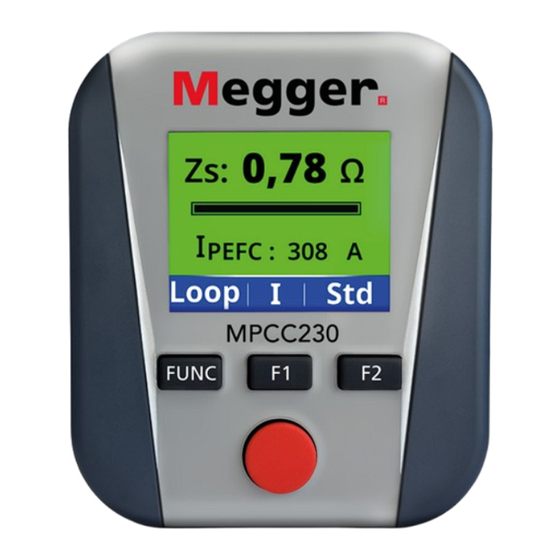

Page 9: Instrument Overview
Socket Test / VOLT - RCD - LOOP - Harmonics measurement mode. / Memory. Sub-function navigation For test and read the memory or to analyse the harmonics value up to 49th. Display TFT 1,77” Anti-scratch glass UK plug EU plug www.megger.com MPCC230... -
Page 10: Operation
2.2. If an error is detected due to the incorrect wiring, A red bar and alarm sound indicates an error with a code to explain (Fig 2 and 3). 2.3. Frequency can be shown through F2 button. www.megger.com MPCC230... -
Page 11: Rcd (Residual Current Device)
4.2. If touch voltage is >50 V the RCD tripping test will be stopped and the bar will RED display to show tripping time is higher than the limit standard (Fig 5). V is the Touch Voltage. Fig. 4 Fig. 5 www.megger.com MPCC230... -
Page 12: Rcd Auto Function
5. RCD Tripping Time is shown on the display in ms for every STEP. 5.1. Passed trip time results are displayed in GREEN (Fig 6). 5.2. Failed trip times will be displayed in red (Fig 7) and the test will be stopped. www.megger.com MPCC230... -
Page 13: Loop
Z line - PE impedance measurement Z: Global Earth Resistance : Touch Voltage NOTE : Limit for earth ground resistance is defined as: : Touch Voltage Limit (50 V to 25 V) < IΔn IΔn: Nominal RCD current www.megger.com MPCC230... -
Page 14: Har Voltage Harmonics
2. Press the F1 and F2 buttons to select harmonics value required It is possible to disconnect the instrument from the power supply to read and analyse the measurements, until the SUPERCAP is discharged (approx 60 second when fully charged). fig 10 fig 11 www.megger.com MPCC230... -
Page 15: Mem Memory / Report
5. Press the RED button to generate the QR CODE. (Fig.12) 6. Scan the QR CODE with your smart phone using the Megger Pro Circuit Checker App. All saved measurements will be included in a REPORT with the possibility of exporting in pdf or csv. -
Page 16: Maintenance
Unit should be checked before use for damage. Any test leads or adaptors should also be checked before use for damage and continuity. Cleaning Disconnect from mains power / charger. Wipe the instrument with a clean cloth dampened with either water or isopropyl alcohol (IPA). www.megger.com MPCC230... -
Page 17: Specifications
CAT II 250 V to ground Max Input: 250 VAC General reference standards Product type standard IEC/EN61557-3 IEC/EN61557-6 IEC 61557-1 Safety of measuring instruments IEC/EN61010-1 IEC/EN61010-2-2017 IEC/EN61326-1 Display and memory Features TFT colour graphic LCD Memory safety section 64 results www.megger.com MPCC230... - Page 18 Specifications Working environment conditions Reference temperature 5ºC to 23ºC Working temperature 5ºC to 40ºC Allowed relative humidity <80%RH Storage temperature -10ºC to 60ºC Storage humidity <80%RH Mechanical features Dimensions 81.5 x 70 x 83 mm Weight 110 g www.megger.com MPCC230...
-
Page 19: Calibration, Repair And Warranty
New instruments are covered by a two year warranty from the date of purchase by the User, the second year being conditional on the free registration of the product on www.megger.com. You will need to log in, or first register and then login to register your product. The second year warranty covers faults, but not recalibration of the instrument which is only warranted for one year. -
Page 20: Calibration, Service And Spare Parts
3. Pack the instrument carefully to prevent damage in transit. 4. Before the instrument is sent to Megger, freight paid, make sure that the returns label is attached or that the RA number is clearly marked on the outside of the package and on any correspondence. -
Page 21: Decommissioning
8. Decommissioning WEEE Directive The crossed out wheeled bin symbol placed on Megger products is a reminder not to dispose of the product at the end of its life with general waste. Megger is registered in the UK as a Producer of Electrical and Electronic Equipment. The Registration No is WEE/ HE0146QT. -
Page 22: Worldwide Sales Offices
Worldwide Sales Offices 9. Worldwide Sales Offices Sales Office Telephone Email +44 (0)1 304 502101 UKsales@megger.com USA – Dallas +1 214 333 3201 USsales@megger.com USA – Valley Forge +1 214 333 3201 USsales@megger.com USA – Dallas +1 214 333 3201 USsales@megger.com... - Page 23 MPCC230...
- Page 24 +44 (0)1 304 502101 +46 08 510 195 00 uksales@megger.com seinfo@megger.com Megger Valley Forge Megger USA - Dallas Megger USA - Fort Collins Phoenixville, PA USA Dallas, TX USA Fort Collins, CO USA +1 610 676 8500 +1 214 333 3201 +1 970 282 1200 USsales@megger.com...
