Summary of Contents for Kogan KAMN26F7SA

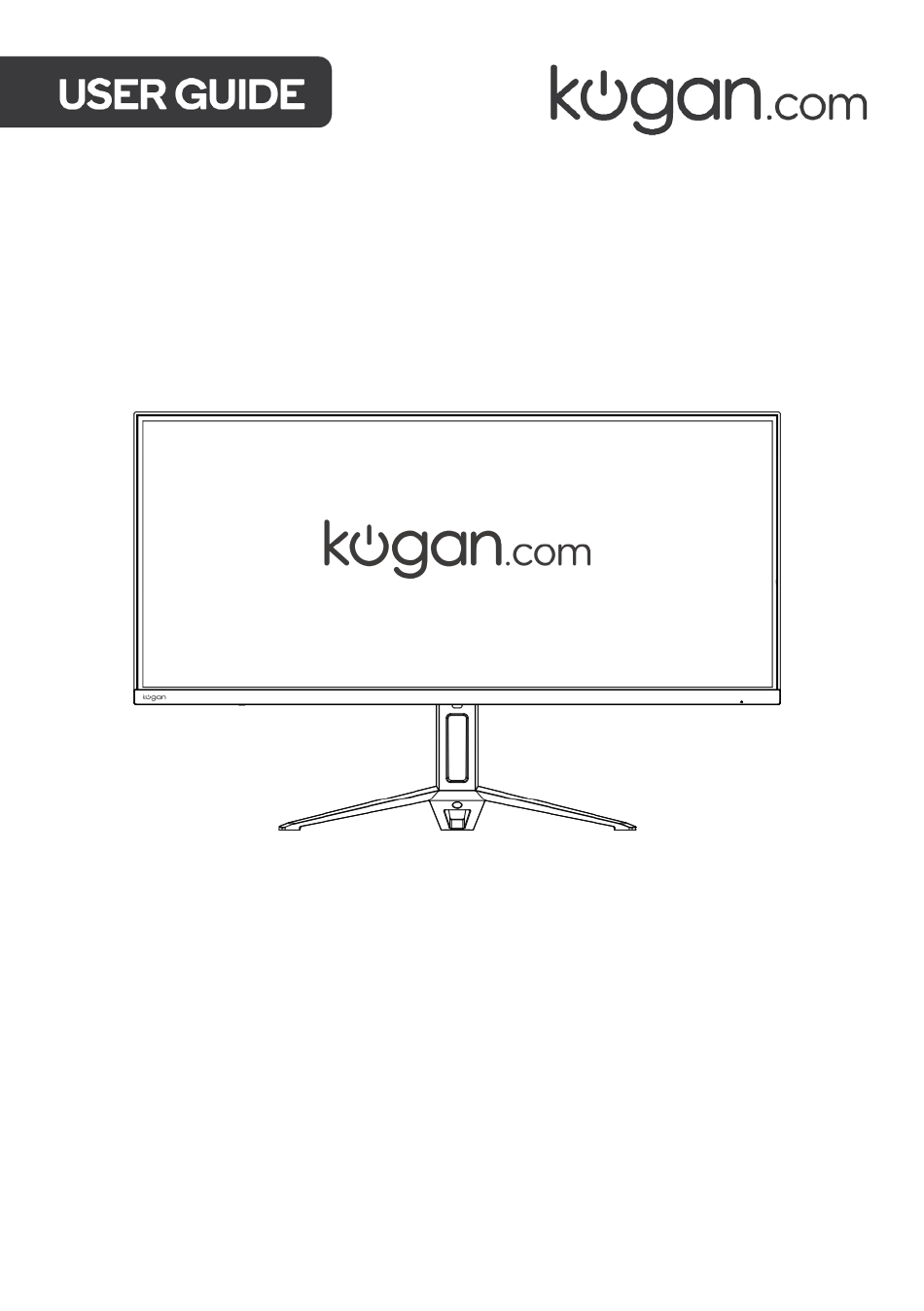

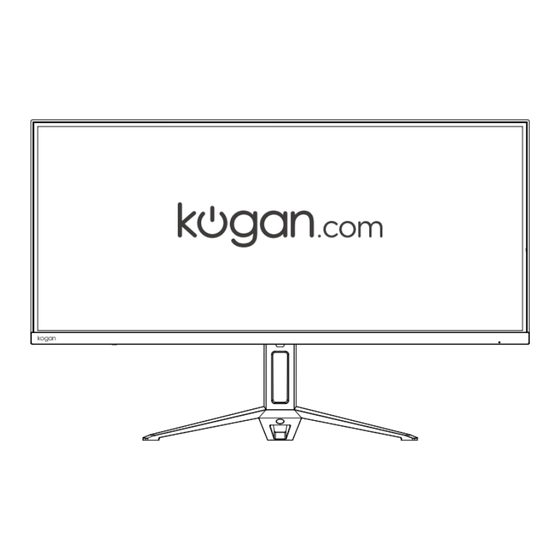

- Page 1 26" ULTRAWIDE FHD 75HZ MONITOR KAMN26F7SA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • Read all instructions before using the monitor and retain them for future reference. • Unplug the monitor before cleaning it. • Use a clean, slightly dampened cloth to wipe the main monitor body. • To clean the screen, turn it off, unplug it, and wait for it to cool completely. Then, wipe it with a dry microfiber cloth. - Page 4 COMPONENTS Monitor Stand arm Stand base Stand base screw (M4 x 14mm) VESA screws (x4) Display port (DP) cable Power adapter User guide...
- Page 5 OVERVIEW Power button Directionally keys Audio out (3.5mm jack) DP port HDMI 1 port HDMI 2 port HDMI 3 port Power input...
- Page 6 ASSEMBLY Before disposing of any packaging, place all items on a soft, clean and flat surface to ensure all components are accounted for. WARNING: The plane of the monitor is fragile. Keep foam underneath the monitor screen while assembling the stand. Installing the stand base Carefully remove the monitor, stand arm and stand base from the box.
-
Page 7: Vesa Mount
VESA MOUNT VESA mounting pattern 75 x 75mm, screw size M4. Note: VESA mount and mounting accessories are not included. Open the box, remove the monitor keeping the protection foam attached and gently place it on a desktop or table. Remove the foam covering the rear of the monitor. - Page 8 CONNECTIVITY Power Adapter Connect the power adapter plug to the AC input port of the monitor, and then connect the adapter to an electrical outlet. Power Adapter Audio Out Earphones, headphones or other audio devices can be connected to the 3.5mm audio port (Audio Out) on the monitor.
- Page 9 DisplayPort Connect the included DisplayPort cable from the computer's DisplayPort to the monitor's DisplayPort. DP cable (included) HDMI Connect the provided HDMI cable (not supplied) from the computer's HDMI port to the monitor's HDMI port. HDMI cable (not included) HDMI OUTPUT PC...
-
Page 10: Operation
OPERATION You can easily control the functions of the monitor by pressing the Power button or moving it directionally ( Button Action Description Press in Turn the monitor on/off Enable the main menu or select the menu Push left item. Exit from the main menu or return to the Push right upper menu. - Page 11 Display settings When first using this monitor it will automatically configure the optimal display settings. The On-Screen Display (OSD) Menu can be used to adjust your monitor's display settings to your liking. To access the OSD: Press the Power button to the right to activate the navigation window. Press the Power button to enter the OSD menu.
- Page 12 Menu Sub-Menu Options Description Brightness ~0-100 Adjust display brightness Contrast ~0-100 Adjust display contrast Turns dynamic contrast ratio On/Off On/Off Standard, Photo, Game, Preset colour modes Movies, FPS, Normal Select colour temperature mode Warm Colour or allow manual colour Temperature Cool configuration (USER) User...
- Page 13 Wide Screen Aspect Ratio Select the display's aspect ratio Auto Low blue Light Medium Blue light reduction adjustment High Max High Enable or disable overdrive for Response Time On/Off faster response time Enable or Free Sync On/Off disable AMD Free Sync PIP Mode Select multi- Multi-Window...
- Page 14 Top Right Change the position of the Top Left sub window in PIP Position Bottom Right PIP mode Multi-Window Bottom Left Main Window Swap between Swap the main and Sub Window sub window Display Modes & Game plus Display modes Press the Power button to the left to switch between the preset display modes.
-
Page 15: Specifications
SPECIFICATIONS Screen size 26” Aspect ratio 21:9 Brightness 300cd/m² (typical) Panel Resolution 2560 x 1080 Refresh rate 75Hz Response time 7ms (OD) Viewing angle ≥178°(H)/178°(V) Contrast ratio 1000:1 VESA mounting 75 x 75mm Colours 16.7M Signal input HDMI 2.0 x 1, HDMI 1.4 x 2, DP 1.4 x 1 Power DC 12V=3A Audio... - Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
