OPTIONAL DECKS:
Attach the optional Single Deck or Double Deck kit (sold separately) to create a closed deck kayak
with the option for using a spray skirt. Three seating positions allow for maximum versatility.

3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION

The AdvancedFrame™ Kayak has a rigid frame in the bow and stern that enhances its performance.

3.1 Assembly

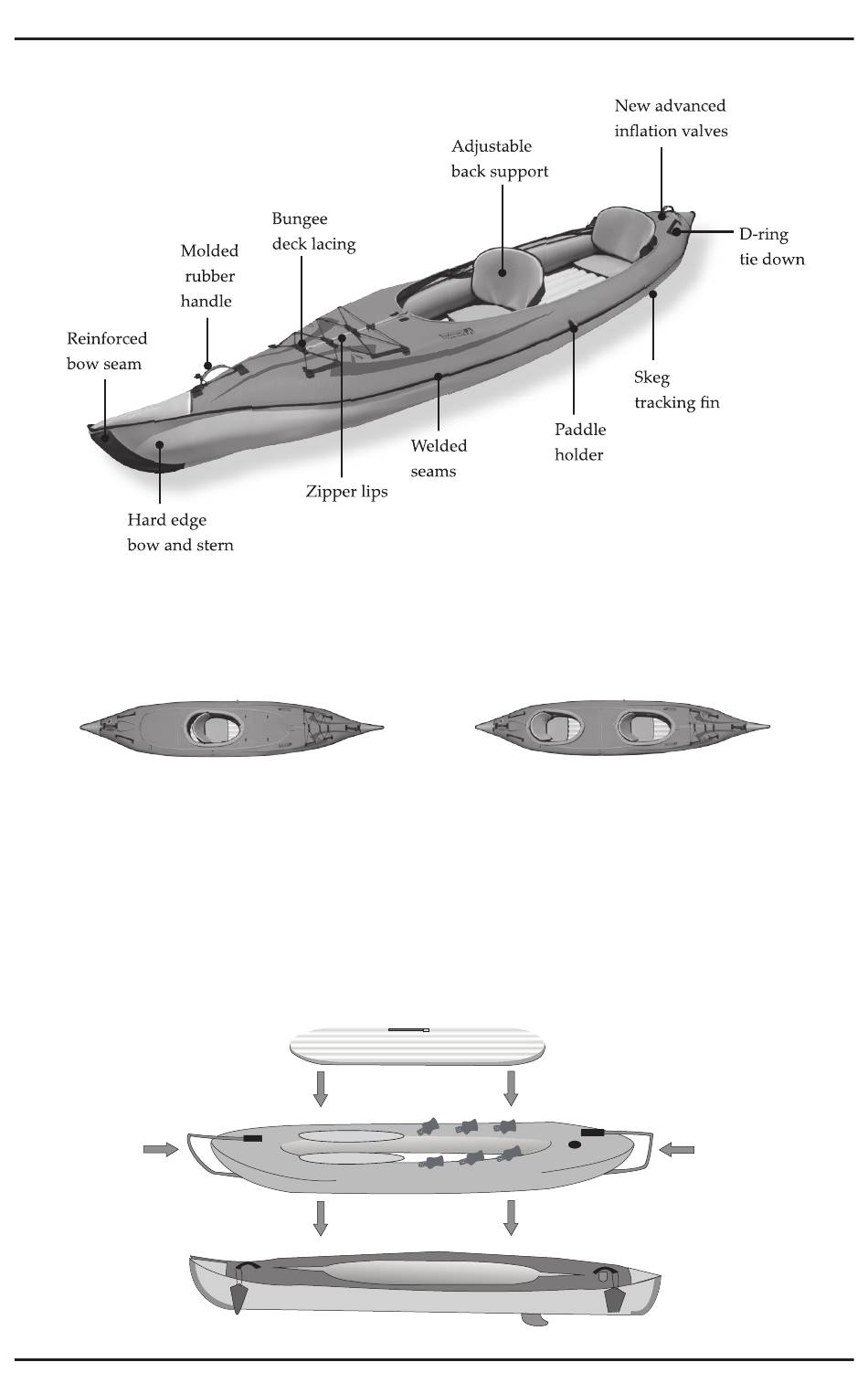

The illustration below shows the general assembly of the kayak. Your kayak comes from the
factory pre-assembled. The only assembly you should need to do is attach the adjustable seats.
Step 1
Single
BOW RIB
AdvancedFrame™ Convertible Inflatable Kayak Owner's Manual
INFLATABLE FLOOR
ADVANCEDFRAME
OUTER COVER
Double
Step 3
STERN RIB
Step 2
Step 1
