Summary of Contents for U.S. Solid USS-DBS87

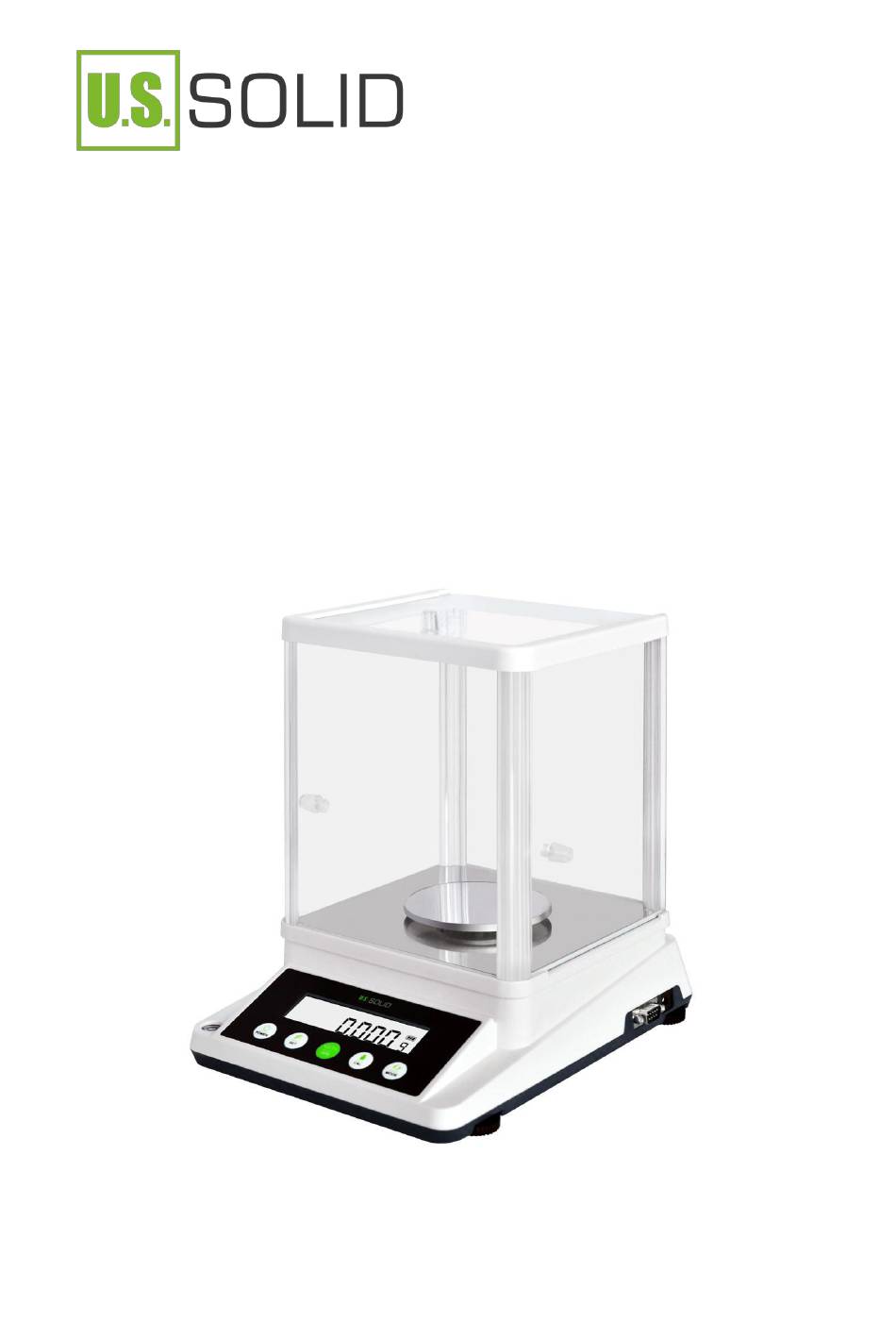

- Page 1 Instruction Manual USS-DBS87 Analytical Balance Version: 202207...
-
Page 2: Table Of Contents
Table of Contents Introduction ..................1 1.1 Safety Precautions ..............1 Design and Function ................3 2.1 Components ................3 2.2 Keyboard ................... 4 2.3 Display Panel ................5 Unpacking ..................... 6 Before Using ..................7 4.1 Leveling the balance ..............7 4.2 Calibration ................. -
Page 3: Introduction
Introduction Thank you for choosing the U.S. Solid USS-DBS87 Series Analytical Balance. The USS-DBS87 Analytical Balance is precise and reliable. It offers a high level of operating convenience and response sensitivity to facilitate determination of the weight of your samples. - Page 4 • The balance has a 3-pin power socket equipped with a ground terminal. To prevent electric shock and to maintain stability in operation of the balance, be sure to ground the balance. • Avoid getting the balance wet as it is not water resistant. Any leakage of liquid into the balance may damage the balance or cause an electric shock to the user.
-
Page 5: Design And Function
Design and Function 2.1 Components 1: Upper Handle 2: Upper Glass 3: Housing Ⅰ 4: Vertical Strut 5: Rear Glass 6: Side Glass 7: Side Handle 8: Weighing Pan 9: Glass 10: Tray 11: Housing Ⅱ 12:Housing Ⅲ 13: Housing Ⅳ... -
Page 6: Keyboard
2.2 Keyboard Description Turn the power on or off Enter the counting function Long press with “TARE” to enter the minimum weight setting Tare the balance Long press with “SET” to enter the minimum weight setting Performs weight calibration Switch the weighing units... -
Page 7: Display Panel
2.3 Display Panel Description “+”: Indicates positive values “-”: Indicates negative values “ ○ ”: Stabilization indicator (Disappearance indicates stabilization of balance) Weight value Weight unit... -
Page 8: Unpacking
· 1 Draft Shield · 1 Power Cable · 1 Calibration Weight · 1 Instruction Manual · 1 Quality Certification Check the instrument for damage in transit. Immediately inform the U.S. Solid customer service if you have any complaints or parts are missing. -
Page 9: Before Using
Before Using · Adjust the leveling feet of the analytical balance until the air bubble in the indicator is centered. · Warm up for 30 to 60 minutes after starting up to improve the stability of weighing. · Check the accuracy of the reading with the weight. If there is any deviation, please follow the calibration method below to calibrate the balance. -
Page 10: Calibration
4.2 Calibration Calibration is a necessary step to assure the analytical balance will accurately weigh the sample. Perform calibration operations in the following situations: • Changes in the location of use (including moving in the same room). • Changes in ambient conditions. •... -
Page 11: Operation
Operation 5.1 Basic Weighing 1. Press “TARE” to zero the balance in the no-load state. 2. Open the glass door of the weighing chamber and place the weighing sample on the weighing pan, then close the glass door. 3. After the display stabilizes, read the value displayed. Weighing a sample that needs to be in a container: 1. -
Page 12: Unit Switching
5.2 Unit Switching The USS-DBS87 Analytical Balance offers four weight units of “g”, “ct”, “oz and “gn”. The unit selection function can be used to meet the unit requirements in various usage situations. In the weighing state, press the "mode" button to switch units among “g”, “ct”, “oz and “gn”... - Page 13 4. Press “SET” to confirm and “-------PCS” will be displayed; 5. Put samples to be counted after the “XX PCS” again displayed and the correct quantity will be displayed. Exit counting function: 1. Press “SET” and “------” will be displayed; 2.
-
Page 14: Setting
Setting 6.1 Minimum weighing The minimum weight can be set according to the use requirements. 1. Long press “TARE” and “SET” simultaneously until “1 d” displayed; 2. Press “SET” or “CAL” to turn up or turn down respectively (from “1d” to “5d”, “d”... -
Page 15: Technical Data
Technical Data Model USS-DBS87- USS-DBS87- USS-DBS87- 110G 210G 310G Capacity 110 g 210 g 310 g Calibration Weight 100 g 200 g 200 g Readability 0.001g (1 mg) Repeatability ±0.002 g Linearity Deviation ±0.003 g Stabilization Time Within 3 seconds... - Page 16 Contact Feel free to visit our website: www.ussolid.com You can email us at service@ussolid.com You can call one of our friendly customer service representative at +1(800) 209-4177...
