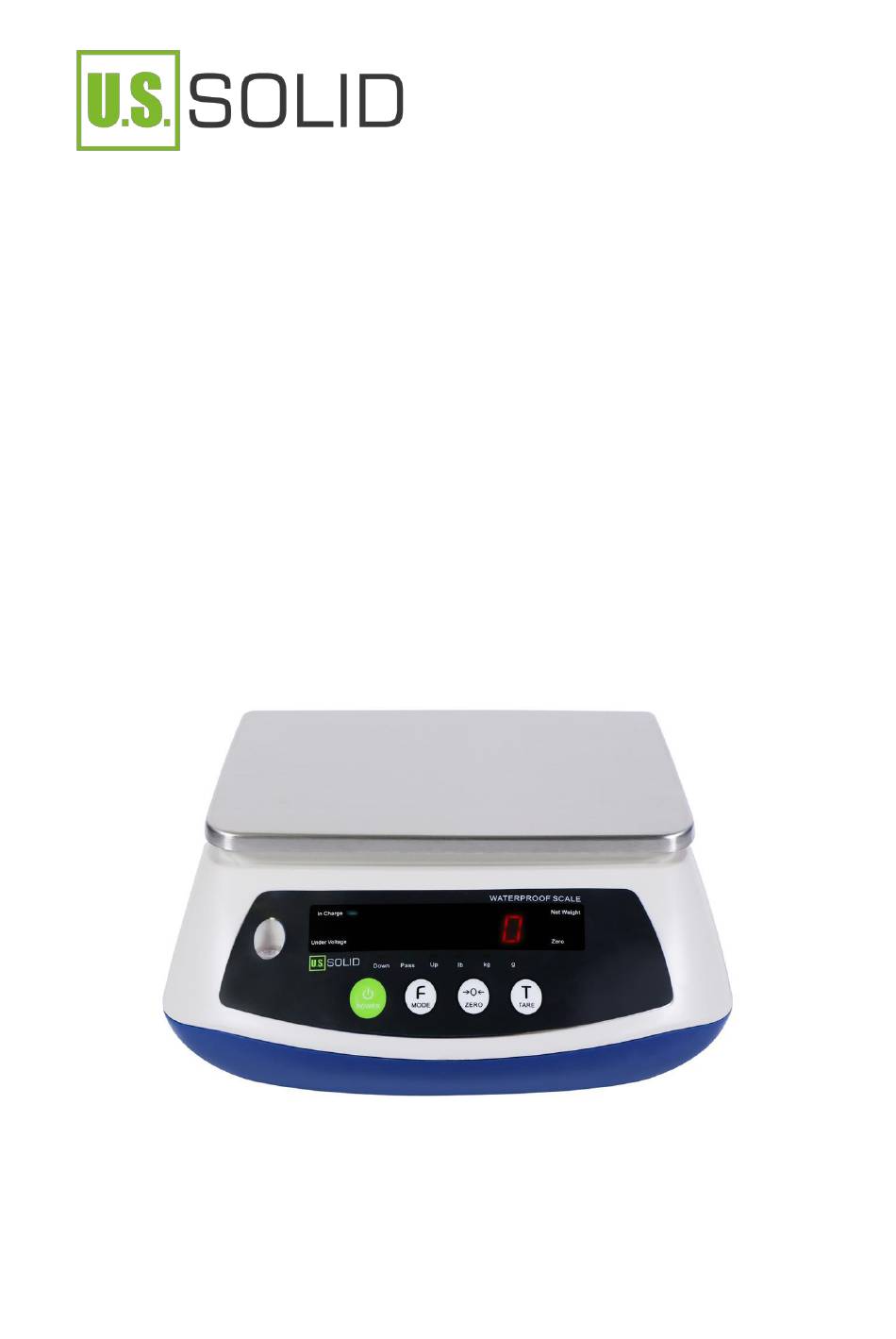

- Page 1 Instruction Manual USS-DBS93(94) Waterproof Bench Scale...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................... 1 1.1 Safety Precautions..................1 Design and Function ....................3 2.1 Components....................3 2.2 Keyboard......................4 2.3 Display Panel....................5 Unpacking ........................6 Before Using ......................7 4.1 Leveling the scale..................7 4.2 Calibration....................... 9 Operation ........................10 5.1 Basic Weighing.....................10 5.2 Checkweighing..................... -
Page 3: Introduction
Introduction Thank you for choosing the U.S. Solid USS-DBS93(94) Series Waterproof Bench Scale. The USS-DBS93(94) Waterproof Bench Scale features a protection grade of IP68, which means its waterproof performance can even make it immersed in water without damaging the scale. Therefore, the USS-DBS93(94) Waterproof Bench Scale can be of help for weighing seafood, shellfish, meat, kimchi and any other samples with water. - Page 4 • Do not weigh items larger than the scale's range, as this may damage the load cell of the scale. * Although the USS-DBS93(94) Waterproof Bench Scale has a protection grade of IP68, it is still not recommended to immerse it in water. The...
-
Page 5: Design And Function
Design and Function 2.1 Components 1: Weighing Pan 2: Display Panel 3: Leveling Indicator 4: Keyboard 5: Leveling Feet 6: Rear Display Panel... -
Page 6: Keyboard
2.2 Keyboard Description Switch on/off the scale Enter setting while powering on Switch the setting item Perform calibration procedure with “ZERO” Zero the scale Perform calibration procedure with “MODE” Tare the scale Switch option in setting item... -
Page 7: Display Panel
2.3 Display Panel Description The battery is in charging The remaining battery power is insufficient Indicates current displayed value is net weight (has been tared) Indicates the weighing value return to zero Checkweighing mode: the weight of the sample to be checked is lower than the lower limit Checkweighing mode, the weight of the sample to be checked is within the upper and lower limits... -
Page 8: Unpacking
· 1 Weighing Pan (rectangular) · 1 Waterproof Power Cable · 1 Instruction Manual · 1 Quality Certification Check the instrument for damage in transit. Immediately inform the U.S. Solid customer service if you have any complaints or parts are missing. -
Page 9: Before Using
Before Using · Adjust the leveling feet of the bench scale until the air bubble in the indicator is centered. · Warm up for 30 minutes after starting up to improve the stability of weighing. 4.1 Leveling the scale Accurate horizontal positioning is necessary for repeatable measurements and exact results. - Page 10 Position of air bubble Adjustment method Turn both feet clockwise down Turn both feet counterclockwise Turn left foot counterclockwise, right foot Left clockwise Turn left foot clockwise, right foot Right counterclockwise...
-
Page 11: Calibration
4.2 Calibration Calibration is an important step to assure the bench scale will accurately weigh the sample. Perform calibration operations in the following situations: • Changes in the location of use (including moving in the same room). • Changes in ambient conditions. 1. -
Page 12: Operation
Operation 5.1 Basic Weighing 1. Press “TARE” to zero the scale in the no-load state. 2. Place the weighing sample on the weighing pan. 3. After the display stabilizes, read the value displayed. Weighing a sample that needs to be in a container: 1. -
Page 13: Checkweighing
5.2 Checkweighing The USS-DBS93(94) Waterproof Bench Scale offers a checkweighing function. Checkweighing means to define a weight range by presetting a upper weight limit and a lower weight limit, and then weighing samples to determine whether the weight of these samples are within the range, above the upper limit or below the lower limit, so as to achieve the purpose of screening. - Page 14 change the number; 10. Then press “MODE” perform the setting of upper limit while “H00000” will be displayed; 11. Press “TARE” to select the number of digits and press “ZERO” to change the number; 12. Press “MODE” and “-END-” will be displayed, the lower limit and upper limit of checkweighing are set;...
-
Page 15: Setting
Setting 6.1 Unit Switching The USS-DBS93(94) Waterproof Bench Scale offers four three units of “g”, “kg” and “lb”. The unit selection function can be used to meet the unit requirements in various usage situations. In the weighing state, press the "UNIT" button to switch weight units. - Page 16 6.2 Screen Brightness The USS-DBS93(94) Waterproof Bench Scale offers a function of screen brightness setting, you can set your screen brightness according to the ambient brightness. 1. In the power off state, press “POWER” to switch on the scale while long press “MODE”...
-
Page 17: Maintenance
Maintenance 7.1 Cleaning • Turn off the power switch and remove power cord during maintenance. • Do not use any aggressive cleaning agents (solvents, abrasive cleaning agents, etc.) or organic solvents to clean the scale. Clean the scale using a piece of lint-free cloth which has been wet with a mild detergent (soap) only. -
Page 18: Troubleshooting
Troubleshooting Problem: Display remains off after switching on. Possible causes: Power cord is not connected • Power line fuse blown • Power transformer damaged • Instrument faulty • Problem: Weight display is constantly changing or unstable. Possible causes: • Test bench vibration •... -
Page 19: Technical Data
Technical Data Model USS-DBS93-30 USS-DBS94-15 Capacity 30 kg 15 kg Readability Repeatability ±10 g ±2 g Linearity Deviation ±15 g ±3 g Stabilization Time Within 3 seconds Pan Size 9 × 7.5 inches (235 × 190 mm) Interface RS232 Power... - Page 20 Contact Feel free to visit our website: www.ussolid.com You can email us at service@ussolid.com You can call one of our friendly customer service representative at +1(800) 209-4177...
