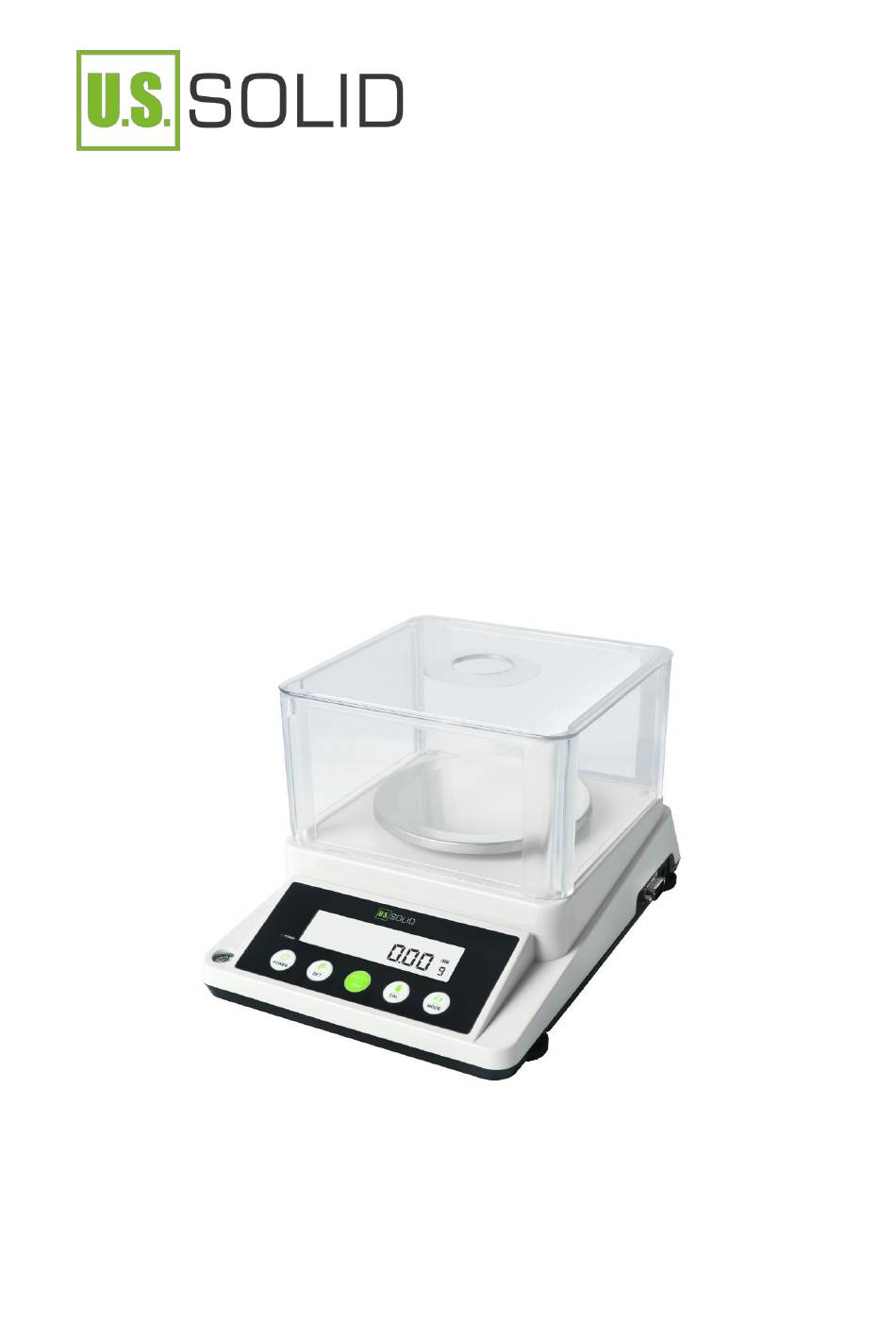

- Page 1 Instruction Manual USS-DBS82 Precision Balance...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................1 1.1 Safety Precautions ............... 1 Design and Function ................3 2.1 Components .................. 3 2.2 Keyboard ..................4 2.3 Display Panel ................5 Unpacking ....................6 Before Using ..................... 7 Operation ....................8 5.1 Basic Weighing ................8 5.2 Unit Switching ................ -
Page 3: Introduction

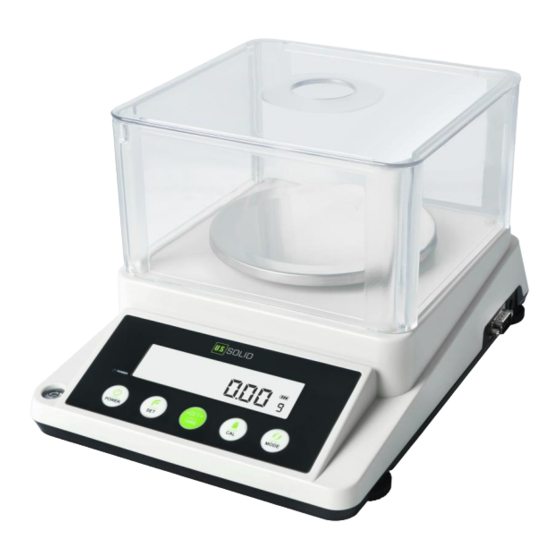

Thank you for choosing the U.S. Solid USS-DBS82 Series Precision Balance. The USS-DBS82 Precision Balance is precise and reliable. It offers a high level of operating convenience and response sensitivity to facilitate determination of the weight of your samples. In addition, USS-DBS82... - Page 4 the precautions below to ensure safe and trouble-free operation of your balance. • The balance has a 3-pin power socket equipped with a ground terminal. To prevent electric shock and to maintain stability in operation of the balance, be sure to ground the balance. •...
-
Page 5: Design And Function
Design and Function 2.1 Components 1: Upper Shield 2: Rear Shield 3: Side Shield 4: Weighing Pan 5: Dust Cover 6: Battery Cover 7: Front Shield 8: Tray 9: Housing Ⅱ 10: Housing Ⅲ 11: Housing Ⅳ 12:Leveling foot... -
Page 6: Keyboard
2.2 Keyboard Description Turn the power on or off Enter the counting function Long press with “TARE” to enter the minimum weight setting Tare the balance Long press with “SET” to enter the minimum weight setting Performs weight calibration Switch the weighing units... -
Page 7: Display Panel
2.3 Display Panel USS-DBS82 Precision Balance provides dual display screens, one front and one rear. Description “+”: Indicates positive values “-”: Indicates negative values “ ○ ”: Stabilization indicator (Disappearance indicates stabilization of balance) Weight value Weight unit... -
Page 8: Unpacking
· 1 Weighing Pan · 1 Draft Shield · 1 Power Cable · 1 Instruction Manual · 1 Quality Certification Check the instrument for damage in transit. Immediately inform the U.S. Solid customer service if you have any complaints or parts are missing. -
Page 9: Before Using
Before Using · Adjust the leveling feet of the precision balance until the air bubble in the indicator is centered. Accurate horizontal positioning necessary repeatable measurements and exact results. To compensate for small irregularities or tilts at this location, the instrument needs to be leveled. ·... -
Page 10: Operation
Operation 5.1 Basic Weighing 1. Zero the balance in the no-load state. 2. Open the glass door of the weighing chamber and place the weighing sample on the weighing pan, then close the glass door. 3. After the display stabilizes, read the value displayed. Weighing a sample that needs to be in a container: 1. -
Page 11: Unit Switching
5.2 Unit Switching The USS-DBS82 Precision Balance offers three weight units of “g”, “oz”, “ct” and “gn”. The unit selection function can be used to meet the unit requirements in various usage situations. In the weighing state, press the "mode" button to switch weight units. - Page 12 5. Put samples to be counted after the “10 PCS” again displayed and the corresponding number appears. Exit counting function: 1. Press “SET” and “------” will be displayed; 2. After that “--ERR--” will be flashing displayed; 3. Press “SET” to exit the counting function and return to the weighing interface.
-
Page 13: Setting
Setting 6.1 Minimum weighing The minimum weight can be set according to the use requirements. 1. Long press “TARE” and “SET” simultaneously until “1 d” displayed; 2. Press “SET” or “CAL” to turn up or turn down respectively (from “1d” to “5d”, “d”... -
Page 14: Technical Data
Technical Data Model USS-DBS82- USS-DBS82- USS-DBS82- 1100G 2100G 3100G Capacity 1100 g 2100 g 3100 g Readability 0.01 g (10 mg) Repeatability ±0.02 g Linearity Deviation ±0.03 g Stabilization Time Within 3 seconds Pan Size Φ5.12 inches (130 mm) Interface... - Page 15 Contact Feel free to visit our website: www.ussolid.com You can email us at service@ussolid.com You can call one of our friendly customer service representatives at +1(800) 209-4177...
