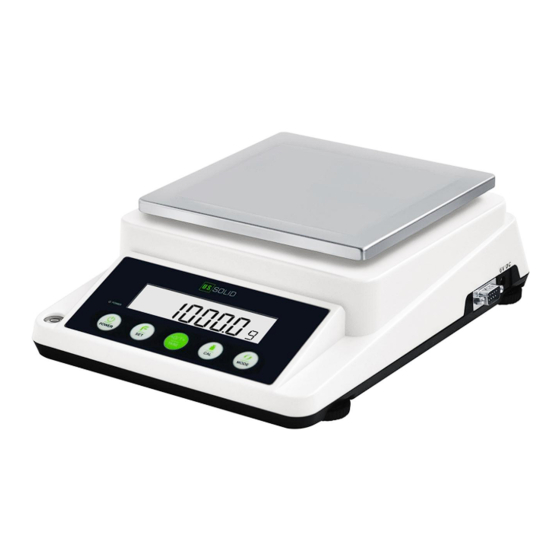

U.S. Solid USS-DBS86 Instruction Manual

Precision balance
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
USS-DBS86 Precision Balance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USS-DBS86 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U.S. Solid USS-DBS86

Summary of Contents for U.S. Solid USS-DBS86

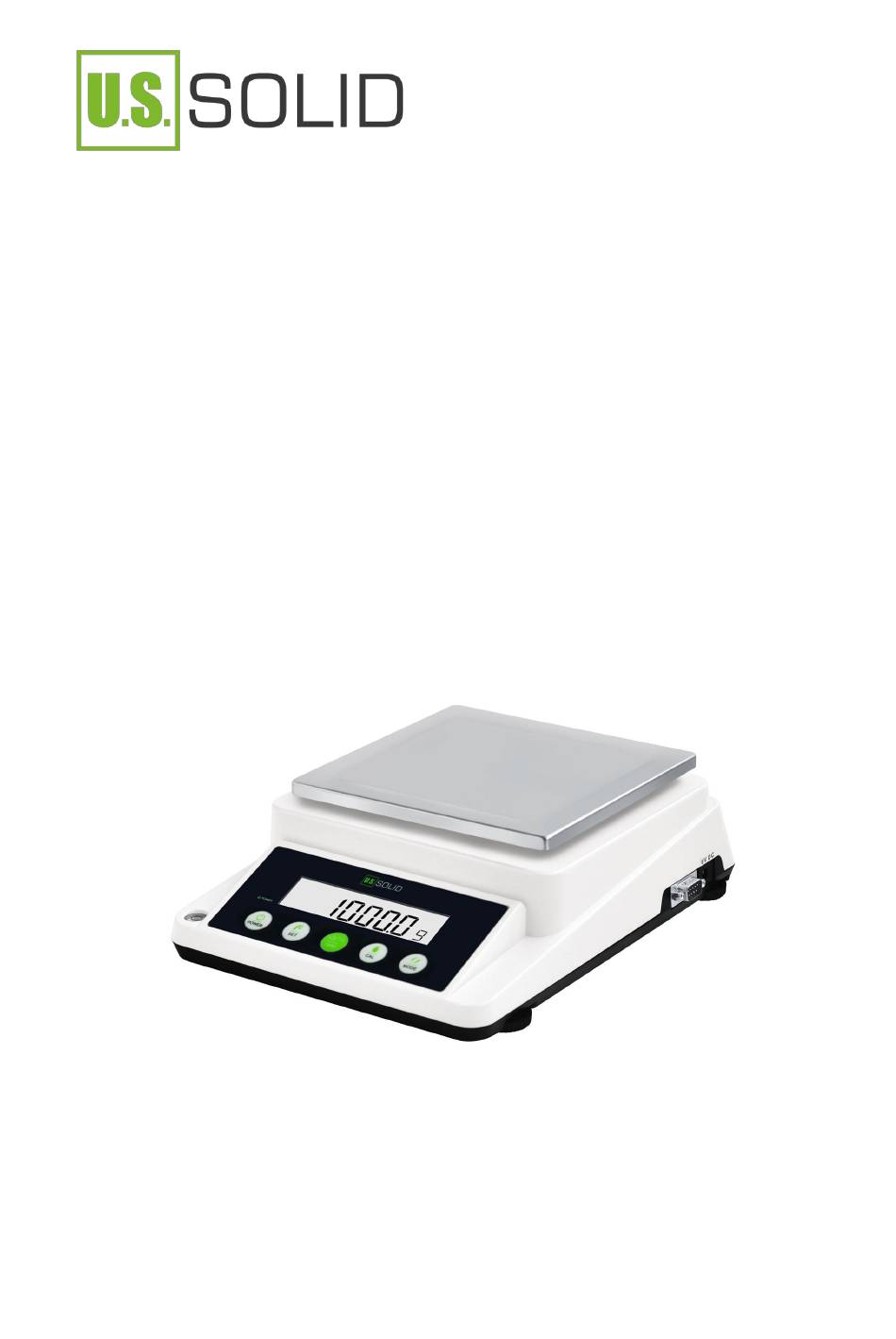

  • Page 1 Instruction Manual USS-DBS86 Precision Balance...

  • Page 2: Table Of Contents

    Table of Contents Introduction ....................1 1.1 Safety Precautions ............... 1 Design and Function ................3 2.1 Components .................. 3 2.2 Keyboard ..................4 2.3 Display Panel ................5 Unpacking ....................6 Before Using ..................... 7 Operation ....................8 5.1 Basic Weighing ................8 5.2 Unit Switching ................

  • Page 3: Introduction

    Introduction Thank you for choosing the U.S. Solid USS-DBS86 Series Precision Balance. The USS-DBS86 Precision Balance is precise and reliable. It offers a high level of operating convenience and response sensitivity to facilitate determination of the weight of your samples.
  • Page 4 ground terminal. To prevent electric shock and to maintain stability in operation of the balance, be sure to ground the balance. • Avoid getting the balance wet as it is not water resistant. Any leakage of liquid into the balance may damage the balance or cause an electric shock to the user.

  • Page 5: Design And Function

    Design and Function 2.1 Components 1: Housing Ⅰ 2: Housing Ⅱ 3: Leveling foot 4: Battery Cover 5: Dust Cover 6: Weighing Pan...

  • Page 6: Keyboard

    2.2 Keyboard Description Turn the power on or off Enter the counting function Long press with “TARE” to enter the minimum weight setting Tare the balance Long press with “SET” to enter the minimum weight setting Performs weight calibration Switch the weighing units...

  • Page 7: Display Panel

    2.3 Display Panel Description “+”: Indicates positive values “-”: Indicates negative values “ ○ ”: Stabilization indicator (Disappearance indicates stabilization of balance) Weight value Weight unit...

  • Page 8: Unpacking

    · 1 Balance Main Body · 1 Weighing Pan · 1 Power Cable · 1 Instruction Manual · 1 Quality Certification Check the instrument for damage in transit. Immediately inform the U.S. Solid customer service if you have any complaints or parts are missing.

  • Page 9: Before Using

    Before Using · Adjust the leveling feet of the precision balance until the air bubble in the indicator is centered. Accurate horizontal positioning necessary repeatable measurements and exact results. To compensate for small irregularities or tilts at this location, the instrument needs to be leveled. ·...

  • Page 10: Operation

    Operation 5.1 Basic Weighing 1. Zero the balance in the no-load state. 2. Open the glass door of the weighing chamber and place the weighing sample on the weighing pan, then close the glass door. 3. After the display stabilizes, read the value displayed. Weighing a sample that needs to be in a container: 1.

  • Page 11: Unit Switching

    5.2 Unit Switching The USS-DBS86 Precision Balance offers three weight units of “g”, “oz” and “ct”. The unit selection function can be used to meet the unit requirements in various usage situations. In the weighing state, press the "mode" button to switch weight units.
  • Page 12 5. Put samples to be counted after the “10 PCS” again displayed and the corresponding number appears. Exit counting function: 1. Press “SET” and “------” will be displayed; 2. After that “--ERR--” will be flashing displayed; 3. Press “SET” to exit the counting function and return to the weighing interface.

  • Page 13: Setting

    Setting 6.1 Minimum weighing The minimum weighing can be set from 0.1g to 0.3g according to the use requirements. The default minimum weighing is 0.3g. That is, it will be displayed as 0.0g when the sample is less than 0.3g. Therefore, when using this balance for weighing samples less than 0.3g, the user can set the minimum weighing to 0.1g.

  • Page 14: Technical Data

    Technical Data Model USS-DB USS-DB USS-DB USS-DB USS-DB S86-2 S86-3 S86-5 S86-6 S86-10 Capacity 2100 g 3100 g 5100 g 6100 g 10000 g Readability 0.1 g Repeatability ±0.2 g Linearity ±0.3 g Deviation Stabilization Within 3 seconds Time Pan Size 6.3 x 6.3 inches (160 x 160 mm) Interface RS232...
  • Page 16 Contact Feel free to visit our website: www.ussolid.com You can email us at service@ussolid.com You can call one of our friendly customer service representatives at +1(800) 209-4177...
