U.S. Solid USS-DBS01 Series Instruction Manual

Mobile-controlled analytical balance
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

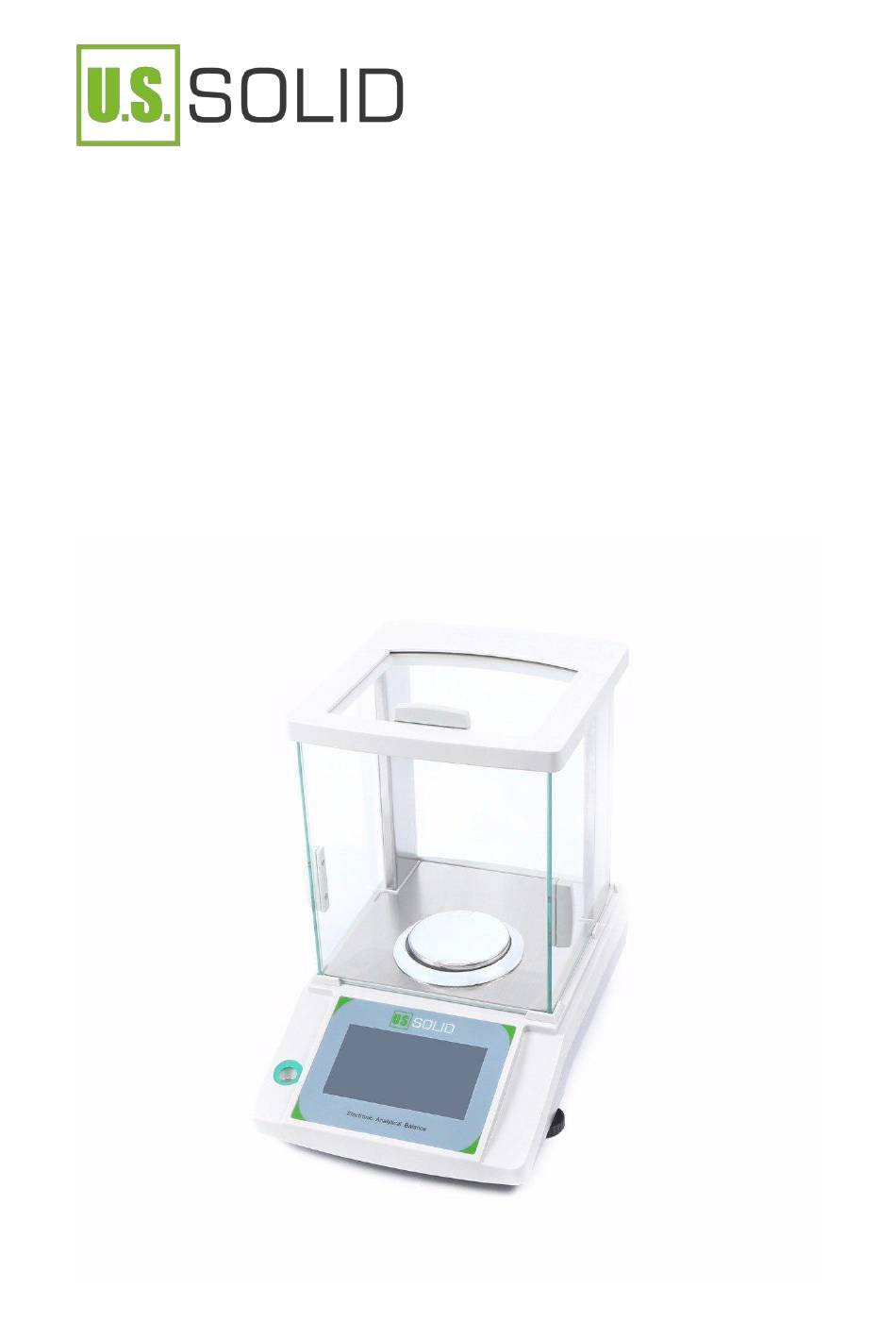

Instruction Manual
U.S. Solid Mobile-controlled
Analytical Balance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USS-DBS01 Series and is the answer not in the manual?

Questions and answers

Related Manuals for U.S. Solid USS-DBS01 Series

Summary of Contents for U.S. Solid USS-DBS01 Series

  • Page 1 Instruction Manual U.S. Solid Mobile-controlled Analytical Balance...

  • Page 2: Table Of Contents

    Table of Contents Normal Operation I. Getting Started......................2 II. Specifications......................5 Technical Parameters:..................... 5 III. Unit Transformation....................6 IV. Panel Description......................7 Panel Explanations....................7 V. Installation........................8 Choosing the installation location................8 Unpacking and inspection..................9 VI. Using the Balance....................10 Level adjustment....................

  • Page 3: Getting Started

    We believe this new feature will improve our users’ experience, with minimum extra cost. *Note: Please download U.S. Solid Balance app in App Store (IOS) or Google Play Store (Android) before using. This product was developed according to CE marking regulations while emphasizing aesthetics and safety for the user.
  • Page 4 · This manual should be kept with the analytical balance, so it is available to all users ·Be careful when handling the balance. Avoid any sudden movements when in its vicinity. Be sure to not drop the balance, nor drop any heavy/sharp objects on it.
  • Page 5 Always make sure you calibrate your scale before using Features: · Bluetooth connection function · Electromagnetic force compensation technology · Aluminum alloy die cast base and ss platter · Super bright 5 inch color LCD display with backlight · Touch screen ·...

  • Page 6: Specifications

    II. Specifications Technical Parameters: USS- DBS01002 USS- DBS01003 MODEL Max Capacity in 120 g 200 g grams Accuracy Class 10 mg Min. Capacity Division 0.0001 g Verification Scale 0.001g Value Repeatability ±0.0002 g ±0.0003 g Linearity ≤ 8 Seconds Stabilization Time 17.5°...

  • Page 7: Unit Transformation

    III. Unit Transformation Unit Conversion Digit after Rate Decimal Point 1000 0.0022046 0.035274 15.4323584 0.0321507 0.6430149 0.5643834 0.266666951 tl.J 0.02671725 tl.T 0.026666702 tl.H 0.026455464...

  • Page 8: Panel Description

    IV. Panel Description Panel Explanations Language: Switch between Chinese and English Time:Set time INT: Press ”+” or “-” to choose the speed INT-0 Highest Speed INT-1 High Speed INT-2 Normal Speed INT-3 Low Speed PCS: Press it to enter the piece counting mode ASD: Press ”+”...

  • Page 9: Installation

    ASD-2 The normal sensitivity ASD-3 The poor sensitivity for bad environment Print: Press”+” or “-” to choose the print mode PRN-0 Output by Pressing PRN-1 Timing output for every 30s PRN-2 Timing output for every 60s PRN-3 Timing output for every 120s PRN-4 Continuous output EXT CAL:Calibration key V.

  • Page 10: Unpacking And Inspection

    Airflow from air conditioners, fans, doors, or windows Vibrations from surrounding or nearby equipment Direct sunlight or radiation Do not use the balance anywhere exposed to explosive, combustible, or corrosive gases. Do not use the balance in areas with high humidity or high levels of dust When moving from a cooler to a warmer place, the accuracy and reliability of the scale will be influenced by the moisture...

  • Page 11: Using The Balance

    VI. Using the Balance Level adjustment Once the balance is placed at its location, check the bubble level; if bubble is not well-centered, turn the adjustable feet so the bubble moves to the center and the balance is properly leveled. Start 1.

  • Page 12: Tare Function

    Note: Each balance includes the necessary weight to complete external calibration Tare function Put the receptacle on the weighing pan; its weight will be displayed Press “→ T ←” or “→ 0 ←” key and the reading on the display will automatically be set to 0.0000g;...

  • Page 13: Maintenance And Cleaning

    VII. Maintenance and Cleaning To get the best results and for product longevity, be sure to follow the suggestions below. Note: All of the suggestions and guidelines mentioned below and throughout this manual will only be effective with continuous and careful maintenance of the equipment ·Follow all processes outlined in the manual ·Make the manual available to all users of the equipment...

  • Page 14: Cleaning

    checked and adjusted if necessary ·Always use only original components and supplies. Other devices and parts may appear similar, but can damage the equipment. Cleaning ·Never use scourers or substances that can grate to clean metallic parts. This include, but is not limited to, stainless steel, aluminum, coatings, etc..
  • Page 15 affecting is closed tightly readings Scale Remove the pan and clean the unsteady surface of the balance well, making sure there lingering items Power exceeds Connect balance power permissible supply 110-220 V AC value Balance has not Double check calibration, been calibrated internal and/or external Displayed mass...
  • Page 16 made in medical or pharmaceutical laboratories ·Determining the price or total amount in sale price or in pre- packaged preparations Instructions on environmental protection: At the end of its life cycle, please do not dispose of this equipment by throwing it in the usual garbage. Instead, hand it over at a collection point for the recycling of electrical and electronic appliances.

  • Page 17: Mobile App Operation

    HOME screen. Connect Device 1. Discover Find your U.S. Solid Balance in the list of discovered devices. Click on its [PAIR] button to connect your mobile device to your balance. Once connected, the app will automatically advance to the CONNECTED...

  • Page 18: Connected

    2. Connected Select the [Connected] tab to view any connected balance. The app will navigate to the FUNCTION screen by clicking on it from the list.

  • Page 19: Weight Records

    Weight records Click on the [BASIC WEIGHING], [PIECE COUNTING] or [DENSITY WEIGHING] menu items to check their corresponding records. Settings Click the [SETTINGS] menu item to view the app’s system settings. 1. Language Choose the [LANGUAGE] menu item to select your preferred language. You can choose Auto, Simplified Chinese, or English.

  • Page 20: Data Storage

    2. Data Storage Enable/Disable the saving of the stable weight only by switching the [Save stable weight only] switch on or off.

  • Page 21: Weighing Settings

    Choose the [Disable], [Always], [After weight change], or [Periodically] data saving option to select your data saving frequency preference. Click on the [SAVE] button to save your preference. 3. Weighing Settings ·Piece Counting: Click on the [PIECE COUNTING] menu item to set the default sample count value.

  • Page 22: Software Version

    negative error and default positive error values. Once set, click on the [SAVE] button to save these values. · Custom Units: Click on the [CUSTOM UNITS] menu item to create custom measurement units. To create a new custom measurement unit: ①...

  • Page 23: Functions

    Functions Functions menu screen. Basic To perform a basic measuring: Place the sample on the balance’s weighing pan. The result will then be displayed. 1. Click the arrow ([>]) button to the right of the reading’s value to change the measurement unit;...
  • Page 24 2. Click the [Add new unit] button to add other units. Scroll up or down to select gram ([g]), milligram ([mg]), grain ([gr]), carat ([ct]), pound ([lb]), microgram ([µg]), ounce ([oz]), or any stored custom unit; 3. Click the three vertical dots ([⋮ ]) on the upper right of the screen to reveal the [MORE] menu.

  • Page 25: Statistics

    Statistics The [STATISTICS] menu allows you to manage the balance’s PIECE COUNTING feature. To use the PIECE COUNTING feature: 1. Set the reference sample count by clicking the number to the right of the SAMPLE COUNT text;...
  • Page 26 2. Place the reference sample(s) on the weighing pan; 3. Click the [START] button below when the reading stabilizes;...
  • Page 27 4. Place the target sample(s) on the balance’s weighing pan. The result will then be displayed; ·Click the [STOP] button to finish the task and return to the main PIECE COUNTING screen. ·Click the [RECORD] button to store the results. ·...

  • Page 28: Percent

    Percent The [PERCENT] menu item allows you to manage the balance’s PERCENT WEIGHING feature. To perform percent weighing: 1. Place the reference sample on the balance’s weighing pan; 2. Click the [START] button below when the reading stabilizes; 3. Place the target sample on the weighing pan. The result will then be displayed;...

  • Page 29: Density

    ·Click the [STOP] button to restart another PERCENT WEIGHING. ·The diagram below indicates the percentage of the target weight over the reference weight. · Click the [GEAR] settings icon on the upper right to set the default reference percentage, default target percentage, default negative error and default positive error values.
  • Page 30 1. Selecting the liquid for the density you require; 2. Entering the liquid’s temperature. This is important because a given liquid can have differing density values at different temperatures; 3. Place the sample on the balance’s weighing pan and click the [NEXT] button;...
  • Page 31 5. Place the density device with sample on the balance’s weighing pan; 6. Click the [USE CURRENT] button when the reading stabilizes to determine the sample weight in liquid;...

  • Page 32: Multi-Device

    7. Click the [NEXT] button to view the RESULT screen; 8. Click the [SAVE] button to store the results. You may enter a comment for the result before clicking the [SUBMIT] button. Multi-device The [MULTI-DEVICE] menu item allows you to add additional balances to the app.
  • Page 33 1. Click on the button with the plus ([ + ]) sign to see any available additional devices; 2. Select the device you wish to add in the list and click the [CONFIRM] button to store the added device; 3. The readings of each device will then be displayed on the MULTI- DEVICE screen.

  • Page 34: Settings

    Settings The [SETTINGS] menu item allows you to manage the balance’s setting and external calibration. 1. Sensitivity Click the upwards arrows ([^]) on the right to select the balance’s SENSITIVITY and INTEGRAL setting respectively. 2. Calibration The [EXTERNAL CALIBRATION] menu item allows you to manage the balance’s calibration.
  • Page 35 To calibrate the balance: 1. Click the [START] button to begin the calibration function; 2. Place the 100g calibration weight on the balance’s weighing pan when instructed to do so;...

  • Page 36: Tare

    3. The “Calibrating…” message will be displayed for a brief moment. And the calibration will be complete when the status message shows “100.0000 g”. Tare Click the [TARE] menu item to remove tare weight. Zero Click the [ZERO] menu item in order to zero the reading when the weighing pan has no load.
  • Page 37 Contact Feel free to visit our website: www.ussolid.com You can email us at service@ussolid.com You can call one of our friendly customer service representative at 1-800-243-5428...

This manual is also suitable for:

Uss-dbs01002Uss-dbs01003
