INSTALLATION AND
OPERATORS MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as
yours.
If you should ever need to contact us concerning this unit, it
will help us to respond to your needs faster.
MODEL _____________________________________________
SERIAL NUMBER _____________________________________
PURCHASE DATE ____________________________________
DEALER NAME ______________________________________
DEALER PHONE # ___________________________________

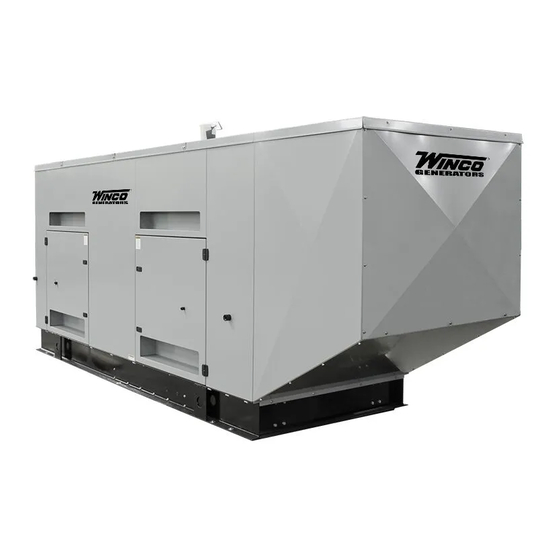

DR175F4
DR250F4
DR300F4
DR350F4
GENERATORS
16200-045
16200-047
16200-046
16200-027
www.wincogen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR250F4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Winco DR250F4

  • Page 1 DR350F4 GENERATORS INSTALLATION AND OPERATORS MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as 16200-045 16200-047 yours. If you should ever need to contact us concerning this unit, it will help us to respond to your needs faster.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAVE THESE INSTRUCTIONS SAFETY INFORMATION SPECIFICATIONS DR175F4 DR250F4 DR300F4 DR350F4 INTRODUCTION TESTING POLICY PRODUCT DESCRIPTION PREPARING THE UNIT START-UP CHECK LIST UNPACKING LIFTING THE GENERATOR SET INSTALLATION GENERAL INFORMATION ENGINE GENERATOR SET MOUNTING VENTILATION REQUIREMENTS INSTALLING THE FUEL LINE...
  • Page 3: Save These Instructions

    COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us on this unit, it will help us to respond to your needs faster.
  • Page 4: Safety Information

    SAFETY INFORMATION WARNING: FIRE HAZARD This engine generator set has been designed and manufactured to allow safe, reliable performance. Poor Gasoline and other fuels present a hazard of possible maintenance, improper or careless use can result in explosion and/or fire. potentially deadly hazards;...
  • Page 5: Specifications

    EN590 or equivalent Oil Type SEE LUBRICATION SECTION Oil Type SEE LUBRICATION SECTION Oil Capacity 4.9 Quarts Oil Capacity 29.6 Quarts Cooling System 50/50 mix Cooling System 50/50 mix DR250F4 DR350F4 Generator Generator Wattage 225,000 250,000 250,000 250,000 Wattage 350,000 350,000 350,000...
  • Page 6 Review the Stamford Newage nameplate on your generator before selecting the correct information below. Some custom applications use other models. Check the generator nameplate for actual model number. Stamford Newage Model UCDI274J (Single phase 4 lead generator) Voltage Regulator AS440 Rotor Resistance 2.08 ohms Stator Resistance...
  • Page 7: Introduction

    Rated output of generator is based on engineering tests GENERATOR SET of typical units, and is subject to, and limited by, the Every WINCO generator set has its own unique identity temperature, altitude, fuel, and other conditions specified data plate. This data plate identifies the complete unit by the manufacturer of applicable engines.
  • Page 8: Preparing The Unit

    A Start-Up Completion & Warranty Validation Form was CAUTION sent along with this manual. This must be completed and returned to WINCO Inc. within 180 days of the factory Do not attempt to lift the generator set by the means invoice date.
  • Page 9: Installation

    A general rule to follow is to allow 24 inches or more of clearance for maintenance. The WINCO installation manual OPM-112 contains Follow local codes for clearance from combustible surfaces. additional information on indoor, open skid installations...
  • Page 10: Installing The Fuel Line

    We have partnered with a national lubrication oil manufacturer to give you access to Winco private branded premium oil available at comparable prices to conventional oils. See your dealer for additional information.
  • Page 11: Battery Charger

    receptacle mounted in the AC connection cabinet. The WARNING battery charger receptacle is to be powered by a GFCI The electrolyte is diluted sulfuric acid that is harmful circuit and installed in accordance with the United States to the skin and eyes. It is electrically conductive and National Electric Code.
  • Page 12: A.c. Connections

    OF A CLASS 2 CIRCUIT WINCO uses an adjustable breaker, which allows us to use the same breakers in voltage reconnectable units. All wiring must be completed in accordance with the These adjustment should only be made by a competent National Electric Code as well as any state and local codes.
  • Page 13: Grounding

    G: NEUTRAL TO GROUND LEAD LUG: This lug is provided on the neutral terminal block to allow you to run a neutral to ground lead if you are using the generator in a stand alone application. This would be an application where there is not a distribution panel and no other ground to neutral bond in the wiring system.
  • Page 14: D.c. Connections

    D.C. CONNECTIONS If your application requires the installation of a Remote All DC connections are completed on the terminal strip Emergency Stop switch, remove the jumper and wire just below the engine control. All DC connection must be your switch to these terminals. This unit will not start and separate conduit.
  • Page 15: Starting Procedure

    STARTING PROCEDURE CONTROL LAYOUT Warning alarms are self-resetting when the fault condition is removed. The icon will appear steady in the display. SHUTDOWN Shutdowns are critical alarm conditions that stop the engine and draw the operator’s attention to an undesirable condition.
  • Page 16: Auto Mode

    starter motor is disengaged and goes into a rest mode after AUTO MODE which a second attempt is made to start the engine. Should this sequence continue through 3 cranking cycles the start To activate the automatic start mode you will just need to sequence will be stopped and the display will show ‘FAILED depress the AUTO button, the LED indicator beside the TO START”.
  • Page 17: Maintenance

    See your dealer for additional information. 3. Carefully clean the surfaces of the support that are in contact of the WINCO has plumbed an oil drain valve to the outside of the gasket. unit. Attach a customer supplied 5/8” hose to conveniently run the oil to a drip pan or suitable container for catching 4.
  • Page 18: Refilling Coolant

    REFILLING COOLANT DRAINING WATER IN FUEL FILTER 1. Remove radiator cap. Slowly add coolant to the filler WARNING: EQUIPMENT DAMAGE opening. Clean the exhaust valve prior to checking the pre-filter to reduce the risk for system contamination. 2. Loosen the air bleeder plug of the EGR cooler to remove any air from the coolant.
  • Page 19 2. Pour 30/M protective oil into the engine up to the “minimum” level indicated on the oil level dipstick. Start the engine and run it for approx. 5 min. 3. Drain the fuel from the injection circuit, from the filter and from the injection pump channels.
  • Page 20: Maintenance Schedule

    MAINTENANCE SCHEDULE SERVICE INTERVALS Check Engine Oil Level Daily Check Coolant Level and for Leakage Daily Check Air Filter Daily Check Electrolyte Level in Battery and 6 Months Clean Terminals Drain Water from Fuel Pre-Filter 150 Hours Check Belts and Belt Tension 300 Hours Change Oil 600 Hours...
  • Page 21: Troubleshooting Table

    TROUBLESHOOTING TABLE Problem Possible Causes Unit will not crank when power fails Digital genset not in AUTO Transfer control switch not in AUTOMATIC position Incorrect wiring between ATS and genset Defective control relay in ATS Fuse(s) blown in the DSE 7310 MKII Defective DSE 7310 MKII Loose or dirty battery terminals Defective starter...
  • Page 22: Wiring Size Table

    WIRING SIZE TABLE The table below is based on Table 310.16 in the National Electric Code 2020 edition. Allowable ampacitier of insulated conductrs rated 0 through 2000V, 75°C through 90°C. Not more than three current-carrying conductors in Raceway, Cable, or Earth (direct buried). Adjust for 40°C (104°F) ambient temperature.
  • Page 23: Dse 7310 Mkii Wiring Diagram

    DSE 7310 MKII WIRING DIAGRAM OPM-190/A...
  • Page 24: Ac Wiring

    THREE PHASE AC WIRING HIGH AND LOW WYE AC WIRING THREE PHASE-HIGH WYE THREE PHASE-LO 277/480 VOLTS 120/208 VOLTS THREE PHASE - HIGH WYE 277/480V EE PHASE AC WIRING H AND LOW WYE E-HIGH WYE THREE PHASE-LOW WYE 120/208 VOLTS THREE PHASE - LOW WYE 120/208V OPM-190/A...
  • Page 25: Three Phase Ac Wiring - Delta

    THREE PHASE AC NG - 4 LEAD WIRING - DELTA AC WIRING INGLE PHASE THREE PHASE -DELTA 20/240 VOLTS 120/240 VOLTS THREE PHASE DELTA 120/240V SINGLE PHASE AC THREE PHA WIRING - 4 LEAD WIRING - DE SINGLE PHASE THREE PHASE -DELT 120/240 VOLTS 120/240 VOLTS SINGLE PHASE 120/240V...
  • Page 26: Limited Warranty

    Air cooled units purchased for stock have 1 year to be sold. The warranty to the original retail customer commences on the date of sale of the product to them. All liquid cooled units have 180 days from the Winco invoice to submit a start up date. If no startup form is submitted, then warranty period starts on the Winco invoice date unit was sold.
  • Page 27: What Is Not Covered By Warranty

    Note 2: 3rd Year warranty coverage is parts only/no labor. Note 3: Round trip mileage is limited to 200 miles per trip and a total of 2 trips per repair unless authorized in writing by the WINCO Service Dept.
  • Page 28 225 S. CORDOVA AVE • LE CENTER, MN 56057 Sales: 507-357-6821• sales@wincogen.com Service: 507-357-6831 • service@wincogen.com www.wincogen.com OPM-190/A...
