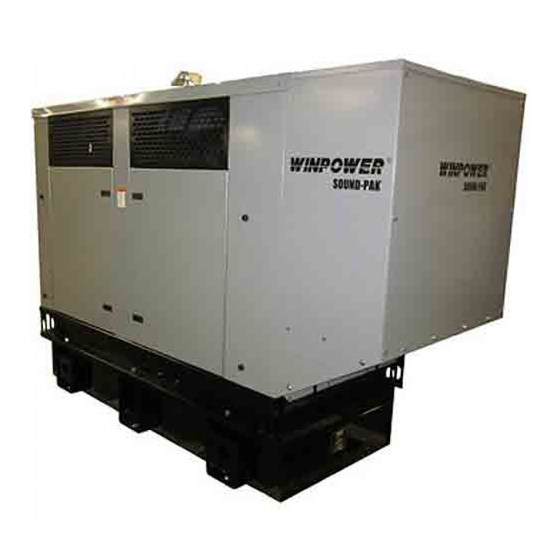

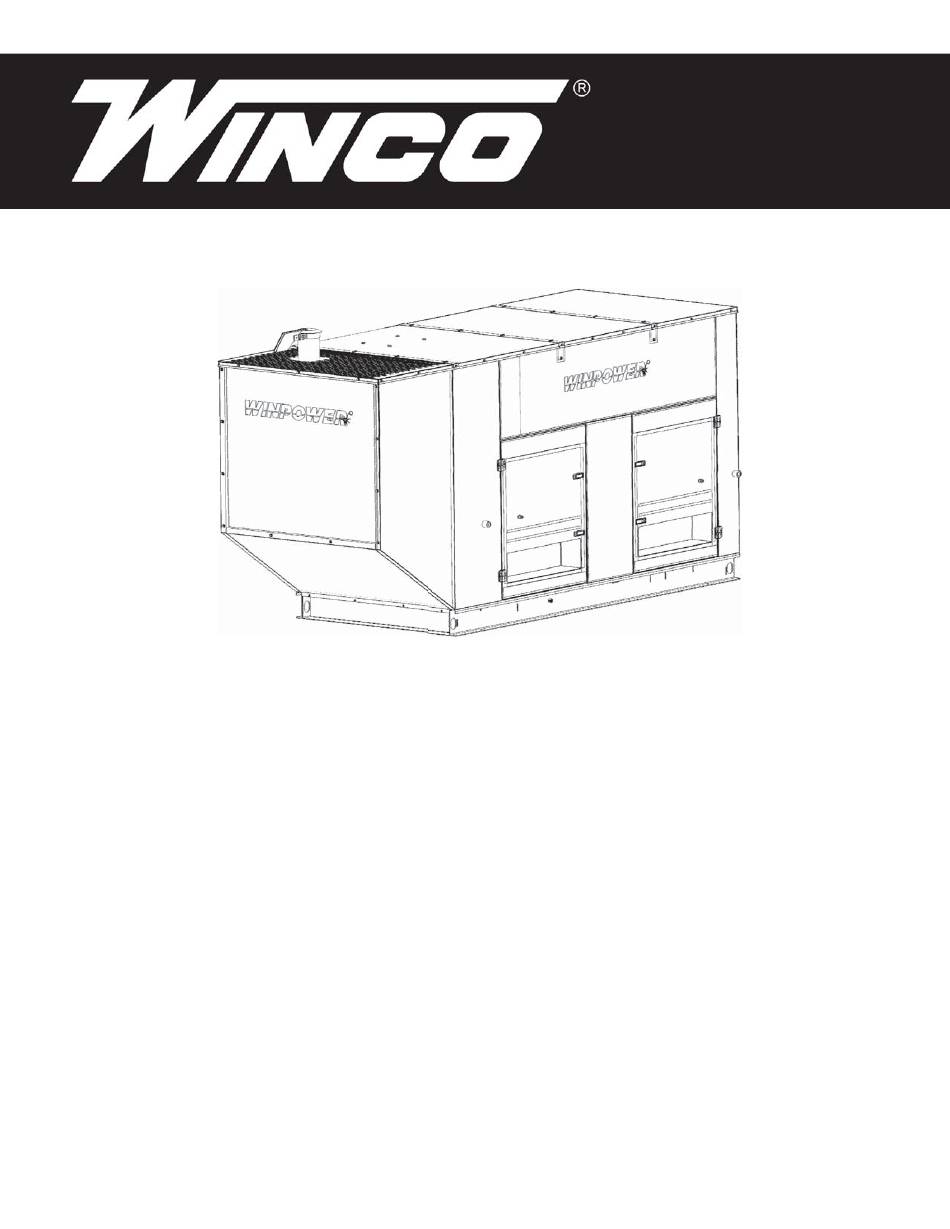

DR20I4- DR130F4 GENERATORS DR100F4 INSTALLATION AND OPERATORS MANUAL DSE 7310 MKII ELECTRIC START WINCO INC. 225 S. CORDOVA AVE. LE CENTER, MN 56057 SERVICE DEPT. 507-357-6831 • SALES DEPT. 507-357-6821 www.wincogen.com...
TABLE OF CONTENTS COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us on this unit, it will help us to SAVE THESE INSTRUCTIONS respond to your needs faster.
SAFETY INFORMATION A. Operate only in well ventilated areas. B. Never operate indoors including attached garages This engine generator set has been designed and manufactured to C. Never operate the unit in such a way as to allow exhaust gases allow safe, reliable performance.
SPECIFICATIONS DR20I4 DR30I4 Generator Generator Wattage 20,000 20,000 20,000 20,000 Wattage 29,000 30,000 30,000 30,000 Volts 120/240 120/208 120/240 277/480 Volts 120/240 120/208 120/240 277/480 Phase Single Three Three Three Phase Single Three Three Three Amps Amps Engine Engine Model...
DR45F4 DR65F4 Generator Generator Wattage 45,000 45,000 45,000 45,000 Wattage 62,000 62,000 62,000 62,000 Volts 120/240 120/208 120/240 277/480 Volts 120/240 120/208 120/240 277/480 Phase Single Three Three Three Phase Single Three Three Three Amps Amps Engine Engine Model FPT N45 SM1 4.5L Model FPT N45 SM2 4.5L Starting System...
DR90F4 DR100F4 Generator Generator Wattage 86,000 90,000 90,000 90,000 Wattage 100,000 105,000 105,000 115,000 Volts 120/240 120/208 120/240 277/480 Volts 120/240 120/208 120/240 277/480 Phase Single Three Three Three Phase Single Three Three Three Amps Amps Engine Engine Model FPT N45 TM2 4.5L Model FPT N67 TM1 6.7L Starting System...
GENERATOR SET Every WINCO generator set has its own unique identity data plate. serial number, and has links to the individual components that form the generator set in our factory records. Several of the major components also have their own individual data plates providing additional information to document build data for warranty and replacement parts.
WINCO take care of the freight claim. If you sign for the unit, the The base component of the model numbering system identifies an engine type, engine starting method, fuel type, kilowatt rating, engine manufacturer, and number of generator poles.
LIFTING THE GENERATOR SET Before beginning the installation process, recheck the voltage, phase, and amperage rating of the generator set. Be certain it can handle the intended load and are compatible with the intended loads. Plans for NOTICE: PERSONAL INJURY: installation should be prepared with proper attention to mechanical and To prevent injury to persons or equipment, observe the following electrical engineering detail to assure a satisfactory system installation.
These engine-generator sets are all NEGATIVE ground. Be very careful DR20I4 & DR30I4 not to connect the battery in reverse polarity, as this may short circuit the battery charging system on the engine.
which circuits will be on the emergency load circuit. If the entire load is recommendations. transferred, the transfer switch can be wired directly after the watt-hour meter and the service entrance, providing the service entrance ampere NOTE: Always make sure that a new battery is fully charged before rating is within the transfer switch’s rated capability.
A. NEUTRAL LUGS: WARNING: These lugs are isolated from ground and provided for you to connect A mainline circuit breaker has been provided inside the generator your neutral wire from the transfer switch to the generator. housing. During all wiring installations, make sure the breaker is in the OFF position and the generator operating switch is in the OFF position.
STARTING PROCEDURE run. Once the relay is opened, the unit will shut down and remain on standby mode until the remote start relay is closed again. CONTROL LAYOUT B. ESTOP - & ESTOP +. These two terminals are shipped with a jumper installed. If your application requires the installation of a Remote Emergency Stop switch, remove the jumper and wire your switch to these terminals.
Page 14
be certain of a balanced voltage output and a solid neutral connection. can cause serious personal injury or equipment damage. The voltage between G1 and G-N should be about 120 volts AC (277 on a low battery or jump starting them will cause damage to the engine control module.
MAINTENANCE SCHEDULE TROUBLESHOOTING TABLE Problem Possible Causes ISUZU Unit will not crank when power fails Digital genset not in AUTO Transfer control switch not in SERVICE INTERVALS AUTOMATIC position Check Engine Oil Level Daily Incorrect wiring between ATS and genset Defective control relay in ATS Check Coolant Level and for Leakage Daily...
VOLTAGE REGULATOR WIRING SX460 Automatic Voltage Regulator 2. Voltage adjustment The following is a list of connections on the AVR. These have been 3. External voltage treatment rheostat. factory set and other than voltage adjustment, should never be No external rheostat - link 1 & 2 changed.
THREE PHASE AC WIRE HIGH AND LOW WYE THREE PHASE - LOW WYE 120/208V THREE PHASE - HIGH WYE 277/480V THREE PHASE WIRING - DELTA SINGLE PHASE AC WIRING - 4 LEAD THREE PHASE DELTA 120/240V SINGLE PHASE 120/240V REV B OPM-109...
WINCO written instructions. WINCO’s sole liability, and Purchaser’s sole remedy for a failure under this warranty, shall be limited to the repair of the product. At WINCO’s option, material found to be defective in material or workmanship under normal use and service will be repaired or replaced.
