Assembly Addendum
for the Vitality™ Series Selectorized Line
The guide rod collars on Vitality Series Selectorized Line strength equipment have been redesigned
to accept a rubber O-ring and to be fastened in place using a set screw, a buttonhead cap screw,
and a nylon lock nut, instead of two set screws. This design change improves the stability of the
guide rods.
The following figure shows these changes.

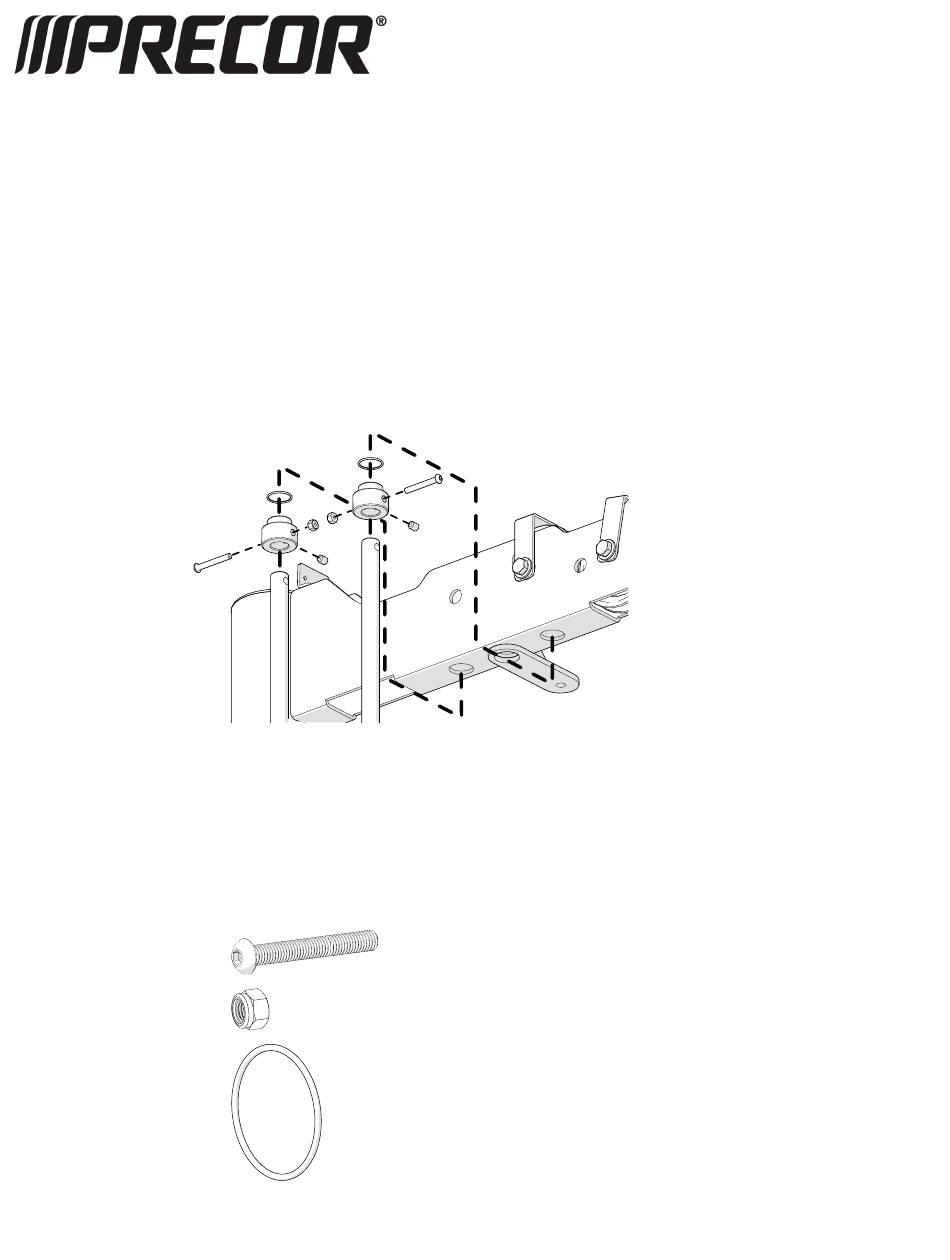

Figure 1. Guide rod, collar, and fastener positioning
When assembling any model of equipment in the Vitality Series Selectorized Line, apply the
changes in this addendum to the assembly guide.
• In the section "Hardware Kit," note that the quantity of M8 set screws is reduced by 2. Add the
following lines to the table:
Fasteners
M6 × 45 mm
buttonhead cap screw
M6 nylon lock nut
O-ring
Quantity
2
2
2
