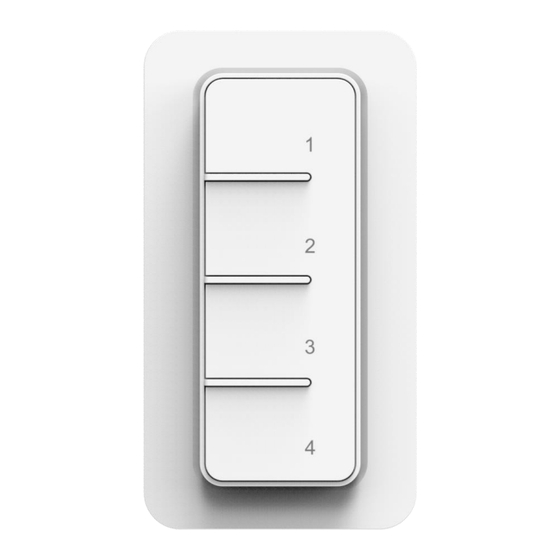

2-in-1 wall mount/handy remote control
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

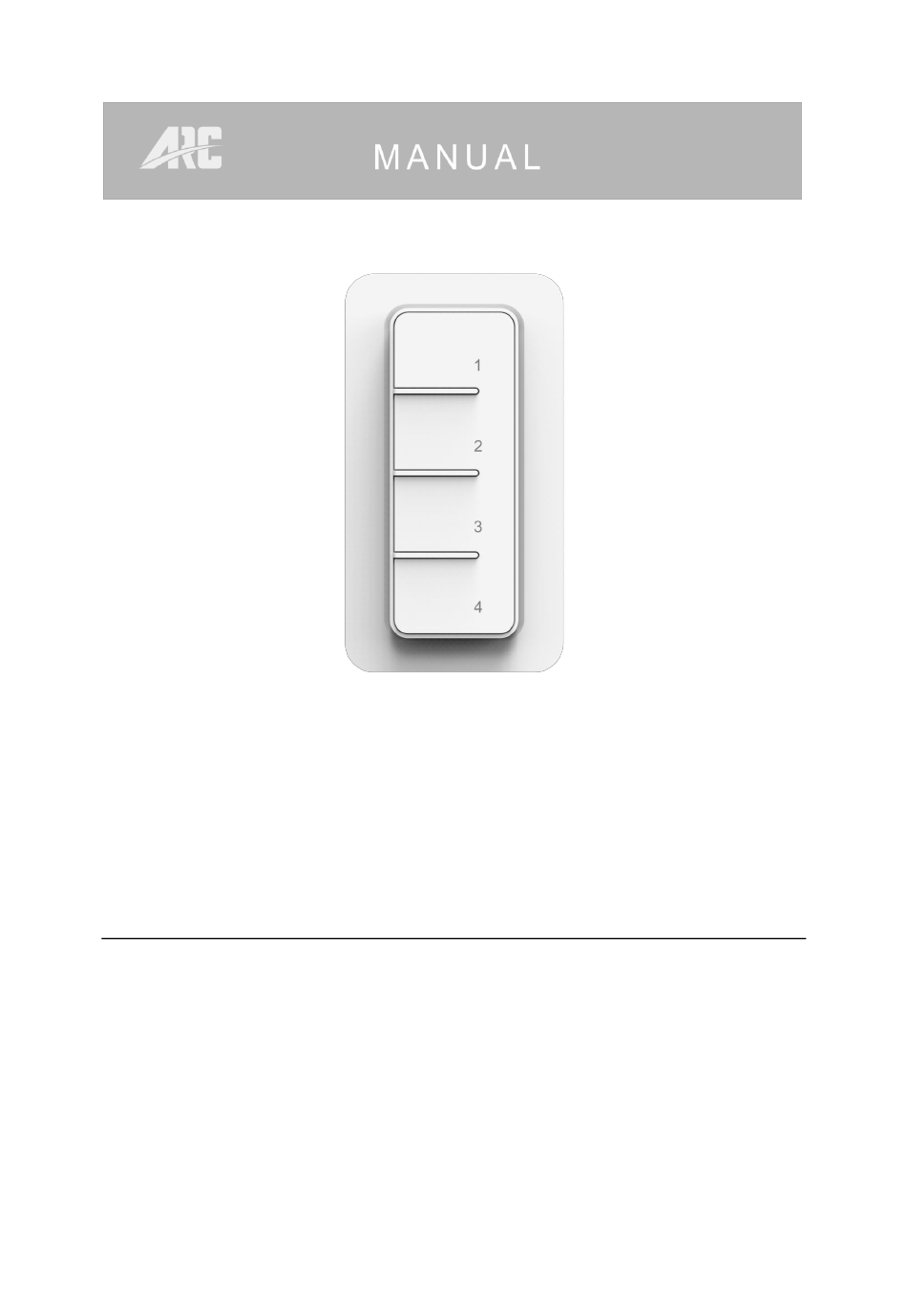

Issue date: 28/09/2020
2-IN-1 WALL MOUNT /HANDY
REMOTE CONTROL
CONTENTS
MYCT-2003
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MYCT-2003 and is the answer not in the manual?

Questions and answers

Related Manuals for ARC MYCT-2003

Summary of Contents for ARC MYCT-2003

  • Page 1: Table Of Contents

    Issue date: 28/09/2020 2-IN-1 WALL MOUNT /HANDY REMOTE CONTROL MYCT-2003 CONTENTS 1. Overview and features Page 2. 2. Diagrams Page 3. 3. Battery Page 4. 4. Mounting on surface Page 6. 5. Pairing / Un-pairing device Page 7. 6. Operation Page 8.

  • Page 2: Overview And Features

    Issue date: 28/09/2020 1. Overview and features 2-in-1 remote / wall switch control can easily be wall mounted and or affix on any magnetic base. Use as a wall switch or as a handy remote control. Main features; • Compatible to L and M series. •...

  • Page 3: Diagrams

    Issue date: 28/09/2020 2. Diagrams. Main Handy Remote Red LED On / Off Button All On / All Off Magnetic Back Holder Front Back Fixing Screws DIAGRAMS...

  • Page 4: Battery

    Issue date: 28/09/2020 3. Battery 1. With a Φ3mm flat headed screwdriver, insert into the allocated slot and with a little force push open the battery cover then remove battery insulation stirp. (First time use only) 2. Insert flat headed screwdriver and slightly lift up to remove battery. BATTERY...

  • Page 5: Lithium Battery Caution

    Issue date: 28/09/2020 3. Insert new 3V CR2032 battery making sure the positive symbol is facing upwards and slide back the battery cover. LITHIUM BATTERY CAUTION: Risk of Explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the environment protection rules.

  • Page 6: Mounting On Surface

    Issue date: 28/09/2020 4. Mounting On Surface 1. Insert flat headed screwdriver into the button slot and lift open the front magnetic holder. 2. Position the back magnetic holder onto surface making sure the arrow is facing up then affix tightly with 2 screws. 3.

  • Page 7: Pairing / Un-Pairing Device

    Issue date: 28/09/2020 5. Pairing / Un-pairing Device To Pair: with socket switch 1. On the remote control, select the desired channel (1 / 2 / 3) to pair. 2. Plug the socket switch into an electrical outlet. 3. Within 6 seconds press button once to pair, red LED will flash once and load will flash twice to confirm that pairing is successful and complete.

  • Page 8: On / Off Operation

    Issue date: 28/09/2020 6. Operation ON / OFF O PERATION Turn the load ON: 1. Press button once. Red LED will flash once. Turn the load OFF: 1. Press button twice. Red LED will flash twice. IMMING PERATION ！After setting brightness level, the next time switching ON the load will return to the previous stipulated brightness.

  • Page 9: Specifications

    Issue date: 28/09/2020 7. Specifications Battery: 3V CR2032 Lithium Cell Battery Radio Frequency: 433.92MHz 1W Power consumption: ºC Environment Temperature: 0-40 Range: Up to 50 M (Depends on building materials) In accordance with: Low Voltage Directive 2014/35/EU RED Directive 2014/53/EU CE Certification: The CE marked affixed to this product confirms Its complaisance with the European Directives...
