ARC MKFT-1704 Manual

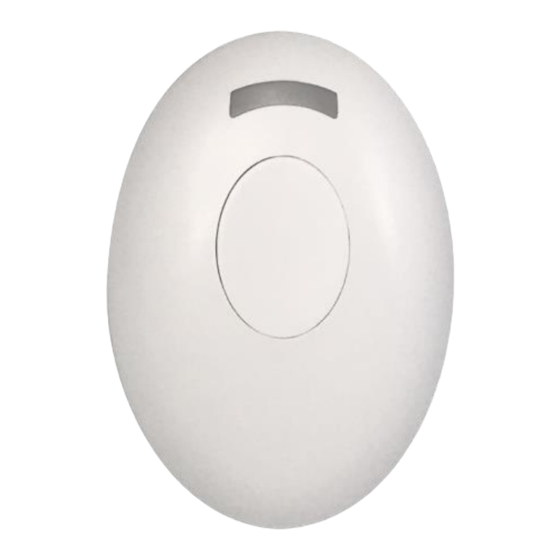

Mini key fob remote control
Hide thumbs

Advertisement

Quick Links

Download this manual
Issue Date: 12/4/2018

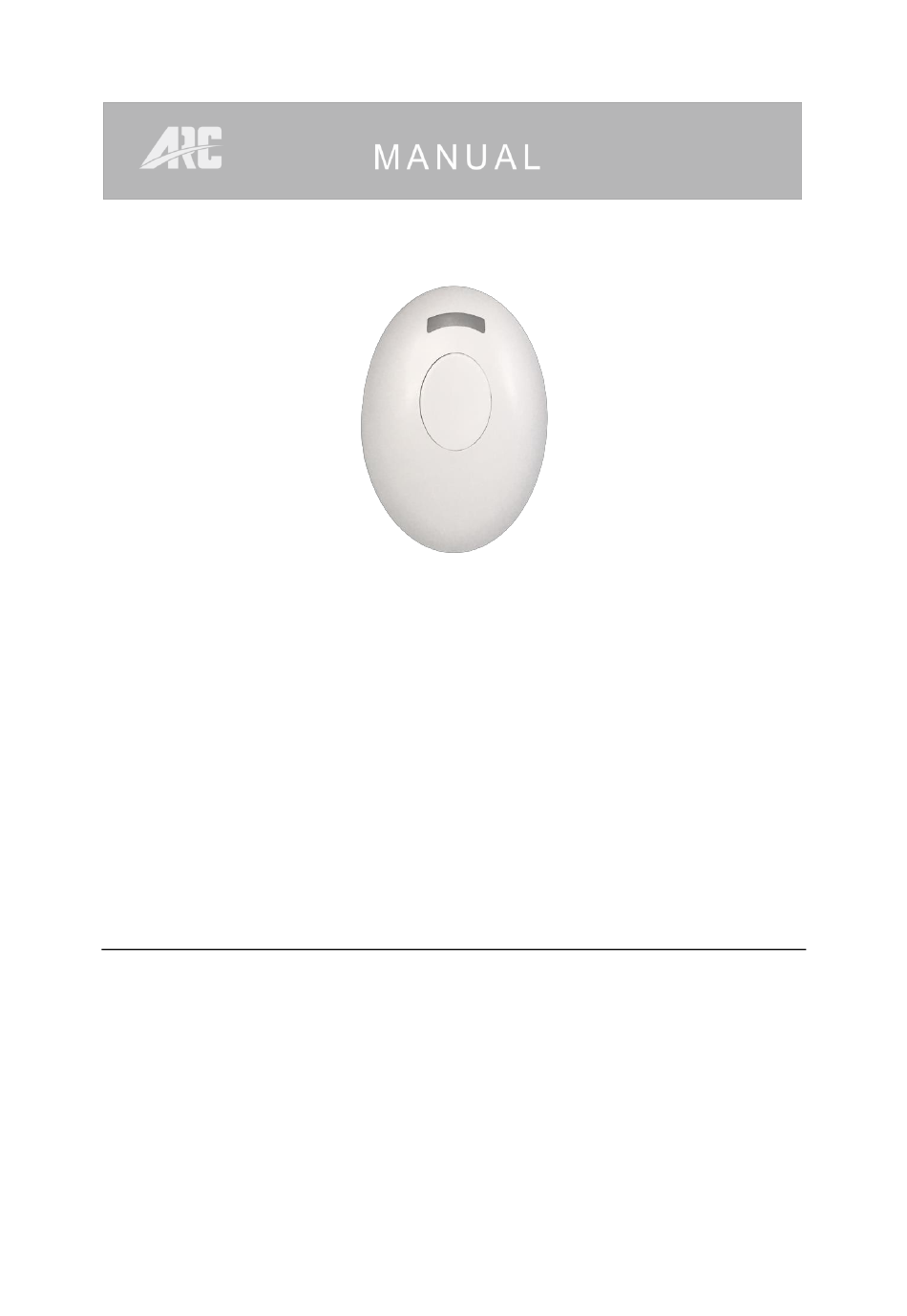

MINI KEY FOB REMOTE CONTROL
CONTENTS
MKFT-1704
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MKFT-1704 and is the answer not in the manual?

Questions and answers

Related Manuals for ARC MKFT-1704

Summary of Contents for ARC MKFT-1704

  • Page 1: Table Of Contents

    Issue Date: 12/4/2018 MINI KEY FOB REMOTE CONTROL MKFT-1704 CONTENTS 1. Overview and features Page 2. 2. Diagrams Page 3. 3. Battery Page 4. 4. Pairing / Un-pairing device Page 6. 5. Scene setup / Scene control Page 7. 6. Operation Page 16.

  • Page 2: Overview And Features

    Issue Date: 12/4/2018 1. Overview and features Mini one button key fob remote control with 3 LED colour indication. (Red / Green / Amber). Equipped with 3 scene control and 1 ALL OFF control. New dimming method by holding down the button to take control of the load level.

  • Page 3: Diagrams

    Issue Date: 12/4/2018 2. Diagrams Notes for the diagrams: Function Switch 1. Load Control 2. Scene Control 3. Scene Setup DIAGRAMS...

  • Page 4: Battery

    Issue Date: 12/4/2018 3. Battery Red LED will flash once every 4 seconds to indicate the battery is low. 1. With the mini key fob remote control bottom facing up, use a slot screwdriver and gently lift open the battery compartment. 2.
  • Page 5 Issue Date: 12/4/2018 3. Or replacing a new battery. Remove 3V CR2450 battery from battery compartment. 4. Replace with a new 3V CR2450 battery and carefully align the 2 side hooks into the slot and push back the battery compartment. LITHIUM BATTERY CAUTION: Risk of Explosion if battery is replaced by an incorrect type.

  • Page 6: Pairing / Un-Pairing Device

    Issue Date: 12/4/2018 4. Pairing / Un-pairing Device AIRING AIRING Refer to the relevant receiver operation manual that you wish to control for detailed pairing / un-pairing procedure. With the receiver that you intent to use, enter into “Learning Mode” Function switch at position 1.

  • Page 7: Scene Setup / Scene Control

    Issue Date: 12/4/2018 5. Scene Setup / Scene Control CENE ETUP Mini key fob remote control has built in 3 scene control which sends the unique special command to the M series receiver to call already stored scene memory from the receiver. In another word, scene setup memory is stored in the M series receiver side so each time a command is received from either mini key fob, mini one button remote or handy scene remote the M series receiver will know to activate...
  • Page 8 Issue Date: 12/4/2018 3. Slide function switch to position 3. 4. Press button once to store Scene Status 1. 5. Green LED flash 3 times → Amber LED flash 1 time to confirm Scene 1 is stored. LED 3 Times LED 1 Time Scene 2 1.
  • Page 9 Issue Date: 12/4/2018 2. Set the desired load level status. 3. Slide function switch to position 3. 4. Press button twice to store Scene Status 2. 5. Green LED flash 3 times → Amber LED flash 2 times to confirm Scene 2 is stored.
  • Page 10 Issue Date: 12/4/2018 Scene 3 1. Function switch at position 1. 2. Set the desired load level status. 3. Slide function switch to position 3. 4. Press button 3 times to store Scene Status 3. 5. Green LED flash 3 times → Amber LED flash 3 times to confirm Scene 3 is stored.
  • Page 11 Issue Date: 12/4/2018 Multiple receiver device setup with 2 remote control: If you intend to set up multiple receiver device at the same time then you will need to use a 2 remote control such as LYCT-505 or MYCT-1702 to set the load level.
  • Page 12 Issue Date: 12/4/2018 Scene 2 1. With the 2 remote control, set the desired load level status. 2. On the mini key fob remote control slide function switch to position 3. 3. Press button twice to store Scene Status 2. 4.
  • Page 13 Issue Date: 12/4/2018 Scene 3 1. With the 2 remote control, set the desired load level status. 2. On the mini key fob remote control slide function switch to position 3. 3. Press button 3 times to store Scene Status 3. 4.
  • Page 14 Issue Date: 12/4/2018 CENE ONTROL Function switch at position 2. Activate Scene 1: Press button once, Amber LED will flash 1 time to confirm. LED 1 Time Activate Scene 2: Press button twice. Amber LED will flash 2 times to confirm. LED 2 Times SCENE SETUP / SCENE CONTROL...
  • Page 15 Issue Date: 12/4/2018 Activate Scene 3: Press button 3 times. Amber LED will flash 3 times to confirm. LED 3 Times Deactivate Scene (ALL OFF): Long press button for 2 seconds. Red LED flash 2 times. LED 2 Times SCENE SETUP / SCENE CONTROL...

  • Page 16: Operation

    Issue Date: 12/4/2018 6. Operation Mini key fob remote control is compatible to M series receiver device and can control “Self Learning” system receivers as ON/OFF/Dimmer function however, scene control is not available. Please refer to the relevant user guide for detailed operation. INGLE ONTROL Function switch at position 1.
  • Page 17 Issue Date: 12/4/2018 Dim the load: 1. Press button once to turn ON load. 2. Press and hold down button again to start dimming, load will start to adjust. 3. Green LED will quick flash until button is released. LED Quick flash 4.

  • Page 18: Specifications

    Issue Date: 12/4/2018 7. Specifications Battery: 3V CR2450 Lithium Cell Battery Radio Frequency: 433.92MHz 1W Power consumption: ºC Environment Temperature: 0-40 Range: up to 50 m indoors (Depends on building materials) In accordance with: Low Voltage Directive 2014/35/EU RED Directive 2014/53/EU CE Certification: The CE marked affixed to this product confirms Its complaisance with the European Directives...
