Wireless Remote Control

pecification:

Function:

3 sets On / Off / Dimmer

1 set of Group On/Off

Frequency:

433.92MHz

Battery:

3V CR2032 lithium cell battery

verview:

Control your lighting with a single touch and take control under your own hands.

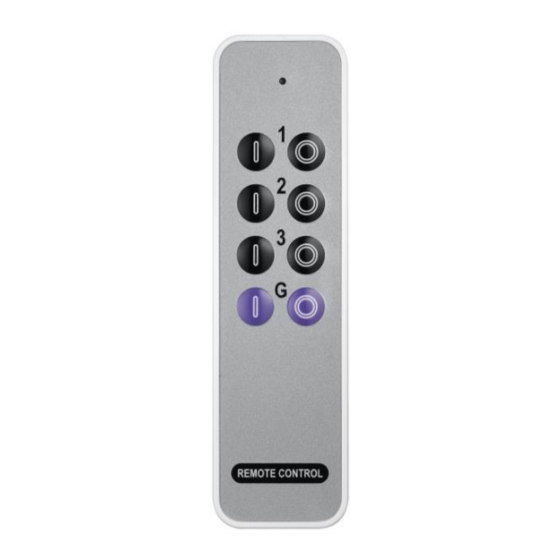

Slim 8 button remote control with 3 sets of ON/OFF button and 1 set of group ON/OFF function.

airing:

1. First choose the desired receiver(s) that you wish to control.

2. Press the 'Learn' button once (LED will flash), this will now enter learning mode.

3. On the remote control press the 'ON' button intended to be paired; the load will flash twice to

confirm that the remote control is now paired.

※ Once pairing is complete, the receiver device(s) will automatically store under the Group

PBT-707

Version 2.

Table of Contents

Need help?

Do you have a question about the PBT-707 and is the answer not in the manual?

Page 1 Wireless Remote Control PBT-707 pecification: Function: 3 sets On / Off / Dimmer 1 set of Group On/Off Frequency: 433.92MHz Battery: 3V CR2032 lithium cell battery verview: Control your lighting with a single touch and take control under your own hands.
Page 2 ON/OFF function. NOTE: Learning mode lasts for 12 seconds; if no signal is given to the receiver then it will automatically exit learning mode without pairing the device. To exit learning mode manually, simply press the ‘Learn’ button again. ！If, during learning mode the load does not flash to confirm, this means that the receiver’s memory is FULL and no further remote control may be paired unless one of the existing remote control is first unpaired (see below).
Page 3 peration: ON/OFF Function: Press ‘On’ button to turn On the load. Press ‘Off’ button to turn Off the load. Group ON/OFF Function: Press the ‘Group ON’ button on remote control, the group of lights you first set up will gradually illuminate.
Page 4 Replace with a new battery then slide up the battery cover. roubleshoot: Problem: The LED on remote control does not light up. Solution: Please check if the battery is inserted correctly or replace a new battery. Problem: I cannot pair my remote control with the receiver. Solution: The memory on receiver is full, please delete one or more memory and try pairing again.
