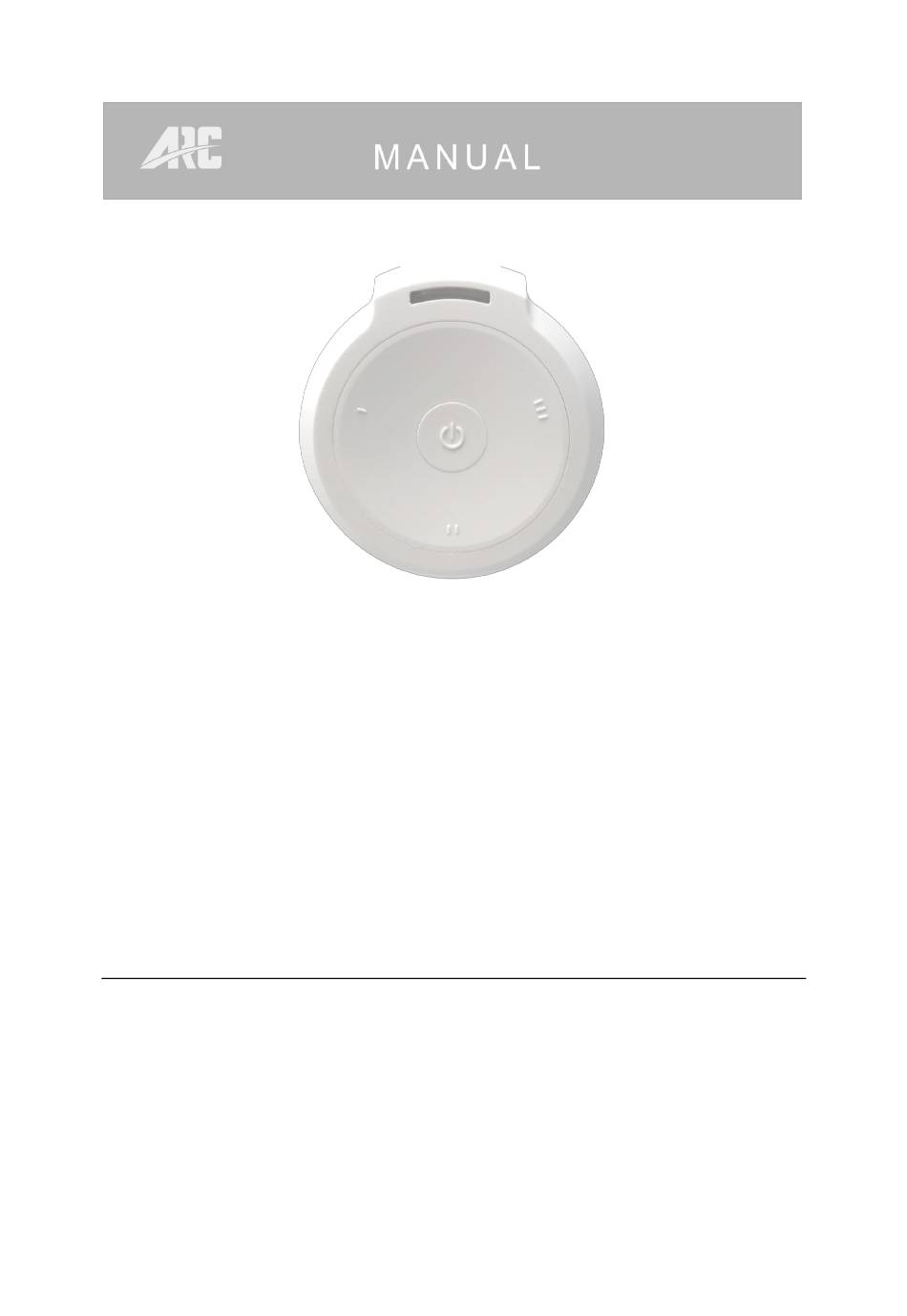

Page 1: Table Of Contents
Issue Date: 7/4/2020 MINI REMOTE CONTROL MYCT-1702 CONTENTS 1. Overview and features Page.2. 2. Diagrams Page 3. 3. Battery Page 4. 4. Pairing / Un-pairing device Page 7. 5. Operation Page 8. 6. Specifications Page 10. -
Page 2: Overview And Features Page.2
Issue Date: 7/4/2020 1. Overview and features Wireless remote control with 3 channel and ‘All On-Off’ function. New dimming method by holding down the button to take control of the load level. 3V CR2032 battery operated capable for up to 3 years battery life. Main features of remote control;... -
Page 3: Diagrams
Issue Date: 7/4/2020 2. Diagrams. Notes for the diagrams: DIAGRAMS... -
Page 4: Battery
Issue Date: 7/4/2020 3. Battery 1. With a slot screwdriver carefully slide down the battery compartment. 2. Remove battery compartment. BATTERY... - Page 5 Issue Date: 7/4/2020 3. Pull out battery insulation strip. (First time use only) 4. Remove 3V CR2032 battery and replace a new one making the positive symbol is facing upwards. BATTERY...
- Page 6 Issue Date: 7/4/2020 5. Slide back battery compartment to complete the battery installation LITHIUM BATTERY CAUTION: Risk of Explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the environment protection rules. BATTERY...
-
Page 7: Pairing / Un-Pairing Device
Issue Date: 7/4/2020 4. Pairing / Un-pairing Device AIRING AIRING Enter “Learning Mode” To Pair: Press button once (Red LED quick flash once) To Un-Pair: Press button twice (Red LED quick flash twice) “M series” system If you are controlling the “M series” system receiver, the ‘All On-Off’ function will be automatically stored upon pairing each individual receiver. -
Page 8: Operation
Issue Date: 7/4/2020 5. Operation Mini remote control is compatible to S and M series receivers. Please refer to the relevant user guide for detailed operation. Channel I operation example. Turn the load ON: Press channel I button once. Red LED quick flash once. Turn the load OFF: Press channel I button twice. - Page 9 Issue Date: 7/4/2020 All On / All Off: All ON: Press button once. Red LED quick flash once. All OFF: Press button twice. Red LED quick flash twice. OPERATION...
-
Page 10: Specifications
Issue Date: 7/4/2020 6. Specifications Battery : 3V CR2032 Lithium Cell Battery Radio Frequency: 433.92MHz 1W Power consumption: ºC Environment Temperature: 0-40 Range: up to 50 m indoors (Depends on building materials) In accordance with: Low Voltage Directive 2014/35/EU RED Directive 2014/53/EU CE Certification: The CE marked affixed to this product confirms Its complaisance with the European Directives...
