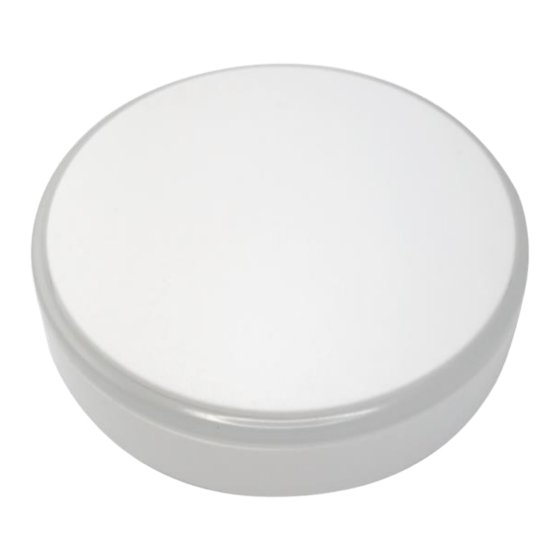

Mini easy one button remote control
Hide thumbs

Advertisement

Quick Links

Download this manual
Issue date: 21/01/2020
MINI EASY ONE BUTTON
REMOTE CONTROL
CONTENTS
MEBT-1706
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEBT-1706 and is the answer not in the manual?

Questions and answers

Related Manuals for ARC MEBT-1706

Summary of Contents for ARC MEBT-1706

  • Page 1: Table Of Contents

    Issue date: 21/01/2020 MINI EASY ONE BUTTON REMOTE CONTROL MEBT-1706 CONTENTS 1. Overview and features Page 2. 2. Diagrams Page 3. 3. Battery Page 4. 4. Mounting on surface Page 4. 5. Pairing / Un-pairing device Page 8. 6. Scene setup / Scene control Page 9.

  • Page 2: Overview And Features

    Issue date: 21/01/2020 1. Overview and features Easy one button remote control with 3 LED colour indication. (Red / Green / Amber). Equipped with 3 scene control and 1 ALL OFF control. New dimming method by holding down the button to take control of the load level.

  • Page 3: Diagrams

    Issue date: 21/01/2020 2. Diagrams. Notes for the diagrams: Function Switch 1. Load Control 2. Scene Control 3. Scene Setup DIAGRAMS...

  • Page 4: Battery

    Issue date: 21/01/2020 3. Battery Red LED will flash once every 4 seconds to indicate the battery is low. 1. With the one button remote control bottom facing up gently slide down the back cabinet. 2. Remove battery insulation strip. (First time use only) BATTERY...
  • Page 5 Issue date: 21/01/2020 3. Or replacing a new battery use a slot screwdriver and push down the small metal spring then push out the battery. 4. Replace with a new 3V CR2450 battery making the positive symbol is facing upwards. BATTERY...
  • Page 6 Issue date: 21/01/2020 5. Slide battery compartment upwards to complete the battery replacement. LITHIUM BATTERY CAUTION: Risk of Explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the environment protection rules. BATTERY...

  • Page 7: Mounting On Surface

    Issue date: 21/01/2020 4. Mounting On Surface Easy one button remote control has 2 ways of mounting on flat surface. 1. With 3M double sided adhesive tape enclosed in the accessory pack. 2. Mounting with 2 screws enclosed in the accessory pack: •...

  • Page 8: Pairing / Un-Pairing Device

    Issue date: 21/01/2020 5. Pairing / Un-pairing Device AIRING AIRING Refer to the relevant receiver operation manual that you wish to control for detailed pairing / un-pairing procedure. With the receiver that you intent to use, enter into “Learning Mode” Function switch at position 1.

  • Page 9: Scene Setup / Scene Control

    Issue date: 21/01/2020 6. Scene Setup / Scene Control CENE ETUP Mini one button remote control has built in 3 scene control which sends the unique special command to the M series receiver to call already stored scene memory from the receiver. In another word, scene setup memory is stored in the M series receiver side so each time a command is received from either mini key fob, mini one button remote or handy scene remote the M series receiver will know to activate...
  • Page 10 Issue date: 21/01/2020 3. Slide function switch to position 3. 4. Press button once to store Scene Status 1. 5. Green LED flash 3 times → Amber LED flash 1 time to confirm Scene 1 is stored. LED 3 Times LED 1 Time Scene 2 1.
  • Page 11 Issue date: 21/01/2020 3. Slide function switch to position 3. 4. Press button twice to store Scene Status 2. 5. Green LED flash 3 times → Amber LED flash 2 times to confirm Scene 2 is stored. LED 3 Times LED 2 Times Scene 3 1.
  • Page 12 Issue date: 21/01/2020 3. Slide function switch to position 3. 4. Press button 3 times to store Scene Status 3. 5. Green LED flash 3 times → Amber LED flash 3 times to confirm Scene 3 is stored. LED 3 Times LED 3 Times SCENE SETUP / SCENE CONTROL...
  • Page 13 Issue date: 21/01/2020 Multiple receiver device setup with 2 remote control: If you intend to set up multiple receiver device at the same time then you will need to use a 2 remote control such as LYCT-505 or MYCT-1702 to set the load level.
  • Page 14 Issue date: 21/01/2020 Scene 2 1. With the 2 remote control, set the desired load level status. 2. On the one button remote control slide function switch to position 3. 3. Press button twice to store Scene Status 2. 4. Green LED flash 3 times → Amber LED flash 2 times to confirm Scene 2 is stored.
  • Page 15 Issue date: 21/01/2020 CENE ONTROL Function switch at position 2. Activate Scene 1: Press button once, Amber LED will flash 1 time to confirm. LED 1 Time Activate Scene 2: Press button twice. Amber LED will flash 2 times to confirm. LED 2 Times SCENE SETUP / SCENE CONTROL...
  • Page 16 Issue date: 21/01/2020 Activate Scene 3: Press button 3 times. Amber LED will flash 3 times to confirm. LED 3 Times Deactivate Scene (ALL OFF): Long press button for 2 seconds. Red LED flash 2 times. LED 2 Times SCENE SETUP / SCENE CONTROL...

  • Page 17: Operation

    Issue date: 21/01/2020 7. Operation Mini one button remote control is compatible to M series receiver device and can control “Self Learning” system receivers as ON/OFF/Dimmer function however, scene control is not available. Please refer to the relevant user guide for detailed operation. INGLE ONTROL Function switch at position 1.
  • Page 18 Issue date: 21/01/2020 Dim the load: 1. Press button once to turn ON load. 2. Press and hold down button again to start dimming, load will start to adjust. 3. Green LED will quick flash until button is released. LED Quick flash 4.

  • Page 19: Specifications

    Issue date: 21/01/2020 8. Specifications Battery: 3V CR2450 Lithium Cell Battery Radio Frequency: 433.92MHz 1W Power consumption: ºC Environment Temperature: -10 ~ 35 Range: up to 50 m indoors (Depends on building materials) In accordance with: Low Voltage Directive 2014/35/EU RED Directive 2014/53/EU CE Certification: The CE marked affixed to this product confirms...
