SMART-AVI DVNET-16Pro User Manual

TECHNICAL SPECIFICATIONS
VIDEO
Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (16) DVI-D 29-pin (female)
Output Interface (1) DVI-D 29-pin (female)
Resolution Up to 1920 x 1200
@60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Input Interface (16) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
USB
Signal Type USB 2.0, 1.1, and 1.0 w/
internal hub
Input Interface (16) USB Type B (female)
Output Interface (2) USB Type A (female)
for keyboard and mouse
emulation;
(2) for USB 2.0 Transpar-
ent
CONTROL
Front Panel Tactile Switch
RS-232 Via Control @ 115200 bps
Hotkeys Via Keyboard
IR Optional
TECHNICAL SPECIFICATIONS
OTHER
Power External 100-240 VAC/
5VDC4A @20W
Dimensions 17" W x 3.5" H x 6.75" D
Weight 10 lbs.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131 °F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
Emulation Keyboard and Mouse
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
DVN-16PROS 1 DVNET-16Pro, 16x1 DVI-D, USB
2.0, Audio Switch
Power Supply 1 PS5VDC4A
User Manual 1
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

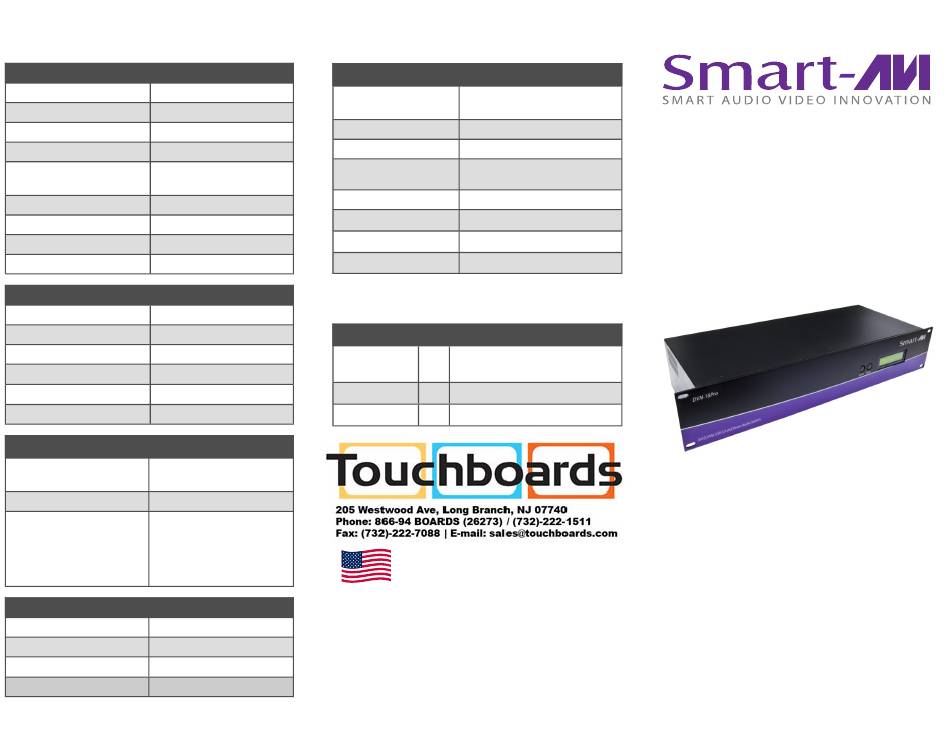

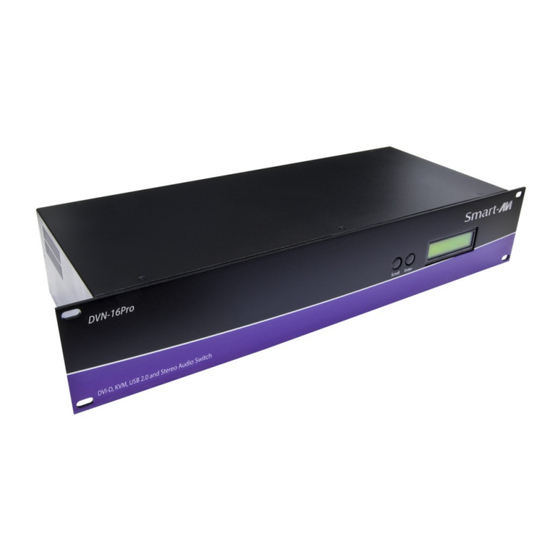

DVNET-16Pro
16-PORT DVI-D, USB AND
KVM SWITCH WITH KEY-
BOARD/MOUSE EMULATION
Control 16 Computers (PC, Mac, or
Linux) on one Display Up To 20 Feet
Away with Keyboard/Mouse Emulation,
Stereo Audio and USB 2.0
USER MANUAL
