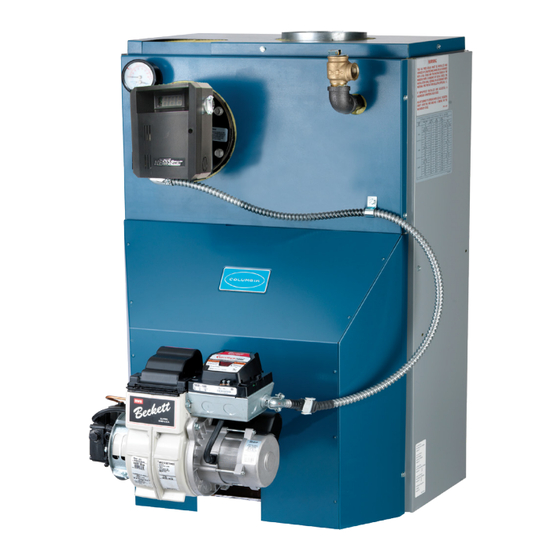

ECR International Columbia CSFH-3085 Installation, Operation & Maintenance Manual
Water oil fired cast iron boiler
Hide thumbs
Also See for Columbia CSFH-3085:
- Installation, operation & maintenance manual (28 pages)
Table of Contents
Advertisement
Quick Links

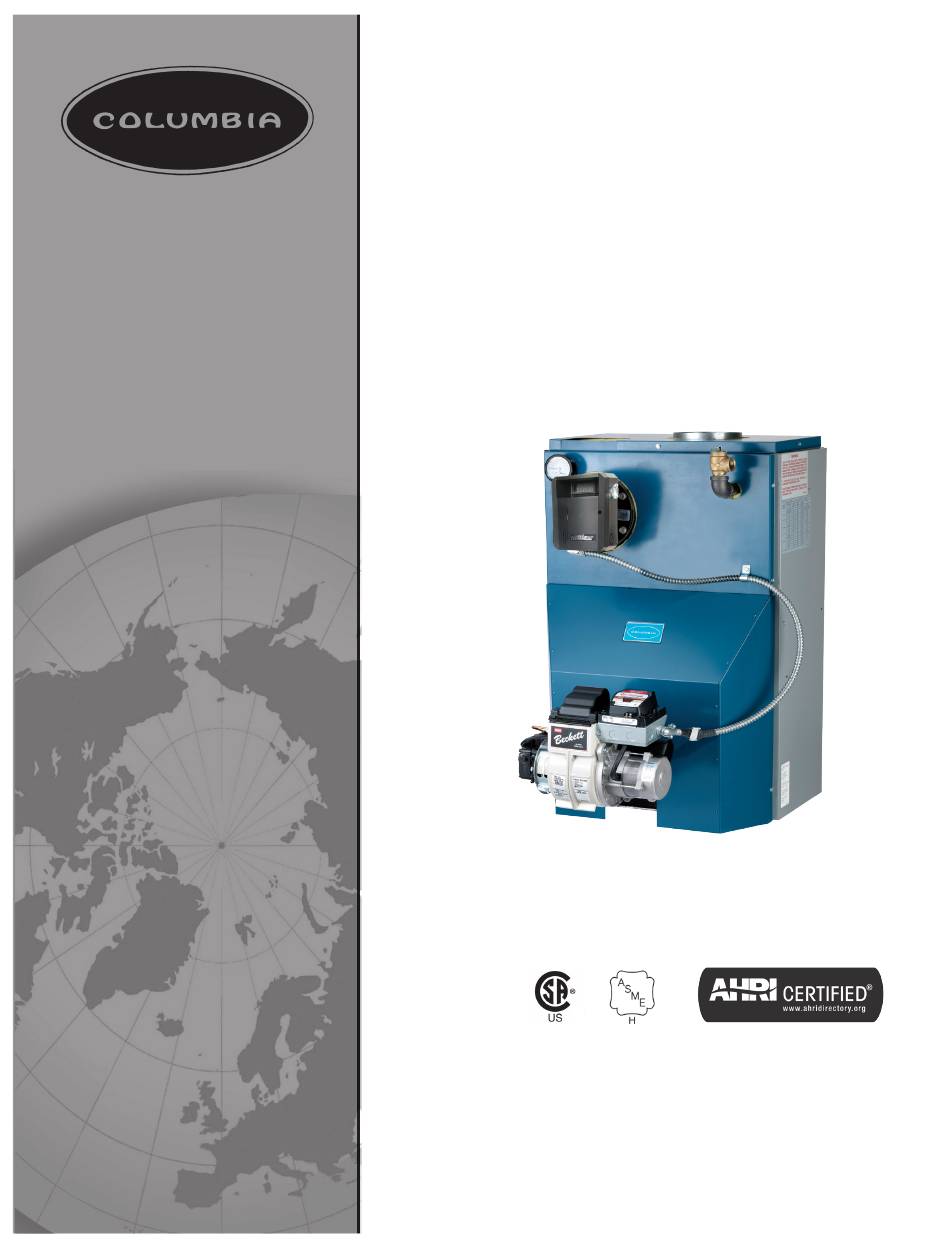

C
olumbia
P.O. Box 24202,
Baltimore, Maryland 21227
Models
CSFH-3085
CSFH-3100
CSFH-4100
CSFH-4125
CSFH-4145
CSFH-5160
CSFH-5185
CSFH-6175
CSFH-6210
CSFH
OIL FIRED CAST IRON BOILER
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
Tested For 75 psi
ASME
Working Pressure
Manufactured by:
ECR International, Inc.
2201 Dwyer Avenue, Utica NY 13501
web site: www.ecrinternational.com
IV
SERIES 4
WATER
P/N 240010897, Rev. A [11/2014]
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ECR International Columbia CSFH-3085
Summary of Contents for ECR International Columbia CSFH-3085
- Page 1 MAINTENANCE MANUAL Baltimore, Maryland 21227 Models CSFH-3085 CSFH-3100 CSFH-4100 CSFH-4125 CSFH-4145 CSFH-5160 CSFH-5185 CSFH-6175 CSFH-6210 Tested For 75 psi ASME Working Pressure Manufactured by: ECR International, Inc. 2201 Dwyer Avenue, Utica NY 13501 web site: www.ecrinternational.com P/N 240010897, Rev. A [11/2014]...
-
Page 2: Table Of Contents
1 - TABLE OF CONTENTS 2 - Dimensions ��������������������������������������������������������������������������������������������������������������� 3 3 - Safety Information����������������������������������������������������������������������������������������������������� 4 4 - Before You Start �������������������������������������������������������������������������������������������������������� 5 5 - Locating The Boiler ���������������������������������������������������������������������������������������������������� 6 6 - Ventilation & Combustion Air ��������������������������������������������������������������������������������������� 7 7 - Connecting Supply And Return Piping ������������������������������������������������������������������������� 10 8 - System Piping ���������������������������������������������������������������������������������������������������������... -
Page 3: Dimensions
2 - DIMENSIONS Figure #1 - Dimensional Data 2” NPT Supply Tapping 35” 4” ” NPT Table - 1 FRONT OF DEPTH DIAMETER BOILER CASING SECTION TO CENTER LINE FLUSH FLUE JACKET OUTLET FLUE OUTLET 17 ⅞" 11 ¼" 6" 21 ½"... -
Page 4: Safety Information
3 - SAFETY INFORMATION 3.1 - General WARNING Boiler installation shall be completed by qualified agency. Construction materials of appliance and products of combustion and fuel contain alumina, silica, WARNING heavy metals, carbon monoxide, nitrogen Fire, explosion, asphyxiation and electrical shock oxides, aldehydes and /or other toxic or harmful hazard�... -
Page 5: Before You Start
4 - BEFORE YOU START 4.2 Prior To Installing The Boiler 4.1 Installation and Operation Do not operate unit if any control, switch, components • Verify you have selected right size boiler with proper or devices have been underwater or subject to water capacity�... -
Page 6: Locating The Boiler
5 - LOCATING THE BOILER WARNING NOTICE Clearance for access should exceed fire protection Fire hazard� Do not install on carpeting, or vinyl clearance� flooring. Failure to follow these instructions could result in death or serious injury� Boiler shall not be installed on carpeting or vinyl flooring. -
Page 7: Ventilation & Combustion Air
6 - VENTILATION & COMBUSTION AIR WARNING Asphyxiation, fire hazard. Do not obstruct air openings to combustion area� Follow instructions below, to maintain adequate combustion air� Table 2 - COMBUSTION AIR REQUIREMENTS (MINIMUM OPENING IN SQUARE INCHES) *UNCONFINED AREA **CONFINED AREA OUTSIDE INSIDE OUTSIDE... - Page 8 6 - VENTILATION & COMBUSTION AIR B� When communicating with the outdoors by means When air for combustion and room ventilation is from of vertical ducts, each opening shall have a inside buildings, confined space shall be provided with minimum free area 1 square inch per 4,000 Btu per two permanent openings, one starting 12 inches from hour of total input rating of all appliances in the the top and one 12 inches from the bottom of the...
- Page 9 6 - VENTILATION & COMBUSTION AIR Figure #3 Figure #4 Figure #5...
-
Page 10: Connecting Supply And Return Piping
7 - CONNECTING SUPPLY AND RETURN PIPING Connect supply and return piping� See Figure #6� When Hot water boilers installed above radiation level must boiler is used in connection with refrigerated systems: be provided with low water device either as part of boiler or at time of boiler installation�... - Page 11 7 - CONNECTING SUPPLY AND RETURN PIPING A� This method is used to protect boilers from Note: When using bypass piping, adjust valves A and B condensate forming due to low temperature return until desired system temperature is obtained� water� Generally noticed in large converted gravity systems or other large water volume systems�...
- Page 12 7 - CONNECTING SUPPLY AND RETURN PIPING Figure #8 - Mixing Valve Piping Figure #9 - Primary Secondary Piping With Bypass...
- Page 13 7 - CONNECTING SUPPLY AND RETURN PIPING Figure #10 - Indirect Water Heater Piping with Circulator DRAIN VALVE Figure #11 - Indirect Water Heater Piping with Zone Valve DRAIN VALVE...
- Page 14 7 - CONNECTING SUPPLY AND RETURN PIPING Figure #12 - Recommended Piping For Boilers Equipped With T3 Or T4 Tankless Heater DANGER Water temperatures exceeding 125°F will cause severe burns instantly or death by scalding� Typical indirect water heater installation using circulators is shown in Figure #10�...
- Page 15 7 - CONNECTING SUPPLY AND RETURN PIPING OPTIONS UTILIZING 3/4” TAPPING Figure #13 - Optional Location For Air Vent Figure #14 - Optional Location For Expansion Tank (Non-Diaphragm Type)
-
Page 16: System Piping
8 - SYSTEM PIPING Figure #15 - Discharge Piping From Safety WARNING Relief Valve Burn and scald hazard� Safety relief valve could discharge steam or hot water during operation� Install discharge piping per these instructions� Install safety relief valve using pipe fittings provided with boiler�... -
Page 17: Venting System Inspection & Installation
9 - VENTING SYSTEM INSPECTION & INSTALLATION INSPECT CHIMNEY - verify chimney construction Figure #16 conforms with requirements of authority having jurisdiction or in absence of such requirements ANSI Z211�1, NFPA 211� • Boiler must be installed into chimney which has masonry or metallic chimney liner�... -
Page 18: Oil Tank And Piping
10 - OIL TANK AND PIPING Installation of oil tank and piping shall conform to • Do not run overhead fuel lines from tank to oil burner� requirements of authority having jurisdiction or in • Follow instructions, attached to fuel pump, for fuel absence of such requirements National Board of Fire pump and by-pass connections�... -
Page 19: Field Assembly
11 - FIELD ASSEMBLY Install oil burner� Follow burner manufacturer specific instructions for installation. • Check oil nozzle in burner for size, angle and type, inspect electrode settings, check head setting, check air band and air shutter settings� See “Oil Burner, Nozzle, &... -
Page 20: Electrical Wiring
12 - ELECTRICAL WIRING WARNING Figure #19 - Hydrostat 3250 Hi-Limit/Low Water Cutoff Control Electrical shock hazard� Turn OFF electrical power supply INDICATOR at service panel before making electrical connections� LIGHTS Failure to do so could result in death or serious injury� DIGITAL DISPLAY THERMAL/ LWCO... -
Page 21: Electrical Wiring - Diagrams
13 - ELECTRICAL WIRING Figure #20 - Wiring Diagram Beckett AFG and Carlin 40F10 with or without Tankless Heater Note: Limit control program based on use with or without tankless heater� Refer to Hydrostat 3250 provided with boiler for additional information�... - Page 22 13 - ELECTRICAL WIRING Figure #21 - Wiring Diagram Carlin EZ-1/2 and Carlin 410F5 with or without Tankless Heater Note: Limit control program based on use with or without tankless heater� Refer to Hydrostat 3250 provided with boiler for additional information�...
- Page 23 14 - OPERATING INSTRUCTIONS 14.1 Operating Instructions 14.4 Instructions For Proper Operation Of Boiler Burner Unit Inspect venting system at start of each heating season� Check vent pipe from boiler to chimney for signs A ¼” diameter slot is provided in inspection cover plate to of deterioration by rust or sagging joints�...
-
Page 24: Operating Instructions
14 - OPERATING INSTRUCTIONS B. Ignition failure - with burner off, close oil supply 14.9 Start of Heating System valve and run through start-up procedure, The safety • Using flue brush, brush soot and scale into combustion switch should lock out as in flame failure. space where it can be removed through swing door C. - Page 25 15 - BURNER SETTINGS TABLE 3 -BECKETT AFG SETTINGS PUMP BOILER HEAD HEAD STATIC NOZZLE PRESSURE TYPE SETTING PLATE BAND SHUTTER [PSI] CSFH-3085W(T) 3⅜ 0�75-60°B CSFH-3100W(T) 3⅜ 0�85-60°B CSFH-4100W(T) 2¾ 0�85-60°B CSFH-4125W(T) 2¾ 1�10-60°B CSFH-4145W(T) 2¾ 1�25-60°B CSFH-5160W(T) 2¾ 1�35-70°B CSFH-5185W(T) 2¾...
-
Page 26: Burner Settings
15 - BURNER SETTINGS TABLE 5 - CARLIN EZ-1/2 SETTINGS BOILER BURNER FIRING NOZZLE NOZZLE PUMP HEAD AIR BAND MODEL MODEL RATE MFR. TYPE PRESSURE SETTING SHUTTER [PSI] CSFH-3085W(T) EZ-1HP 0�85 DELAVAN 0�75 x 70 B 0�75 BLANK CSFH-3100W(T) EZ-1HP 1�00 DELAVAN 0�85 x 70 B... -
Page 27: Boiler Ratings & Capacities
16 - BOILER RATINGS & CAPACITIES Table 6 - BOILER RATINGS OIL BURNER HEATING CHIMNEY BOILER RATINGS A.F.U.E. INPUT CAPACITY MODEL WATER NUMBER *Mbh *Mbh *Mbh CSFH-3085W CSFH-3085WT 0�85 85�0% 8X8X15 CSFH-3100W CSFH-3100WT 1�00 84�0% 8X8X15 CSFH-4100W CSFH-4100WT 1�00 86�0% 8X8X15 CSFH-4125W CSFH-4125WT... - Page 28 16 - BOILER RATINGS & CAPACITIES Table 7 - TANKLESS WATER HEATER CAPACITIES TANKLESS BOILER INPUT TANKLESS BOILER HEATER CAPACITY MODEL RATE HEATER WATER CONTENT INTERMITTENT DRAW NUMBER G.P.H. NUMBER GALS. G.P.M. CSFH-3085WT 0�85 10�5 CSFH-3100WT 1�00 3¼ 10�5 CSFH-4100WT 1�00 3¼...
- Page 29 NOTES...
-
Page 30: Service Record
SERVICE RECORD... -
Page 31: Warranty
Columbia Limited Lifetime Warranty for Residential Cast Iron Water Boilers First Year-Limited Warranty for Residential Water Boilers: This warranty will not be applicable if the boiler has been damaged (Includes Heat Exchanger and Component Parts): as a result of being improperly serviced or operated, including but Columbia warrants that its residential water boilers are free from defects not limited to the following: operated with insufficient water;... - Page 32 I M P O R T A N T In accordance with Section 325 (f) (3) of the Energy Policy and Conservation Act, this boiler is equipped with a feature that saves energy by reducing the boiler water temperature as the heating load decreases. This feature is equipped with an override which is provided primarily to permit the use of an external energy management system that serves the same function.
