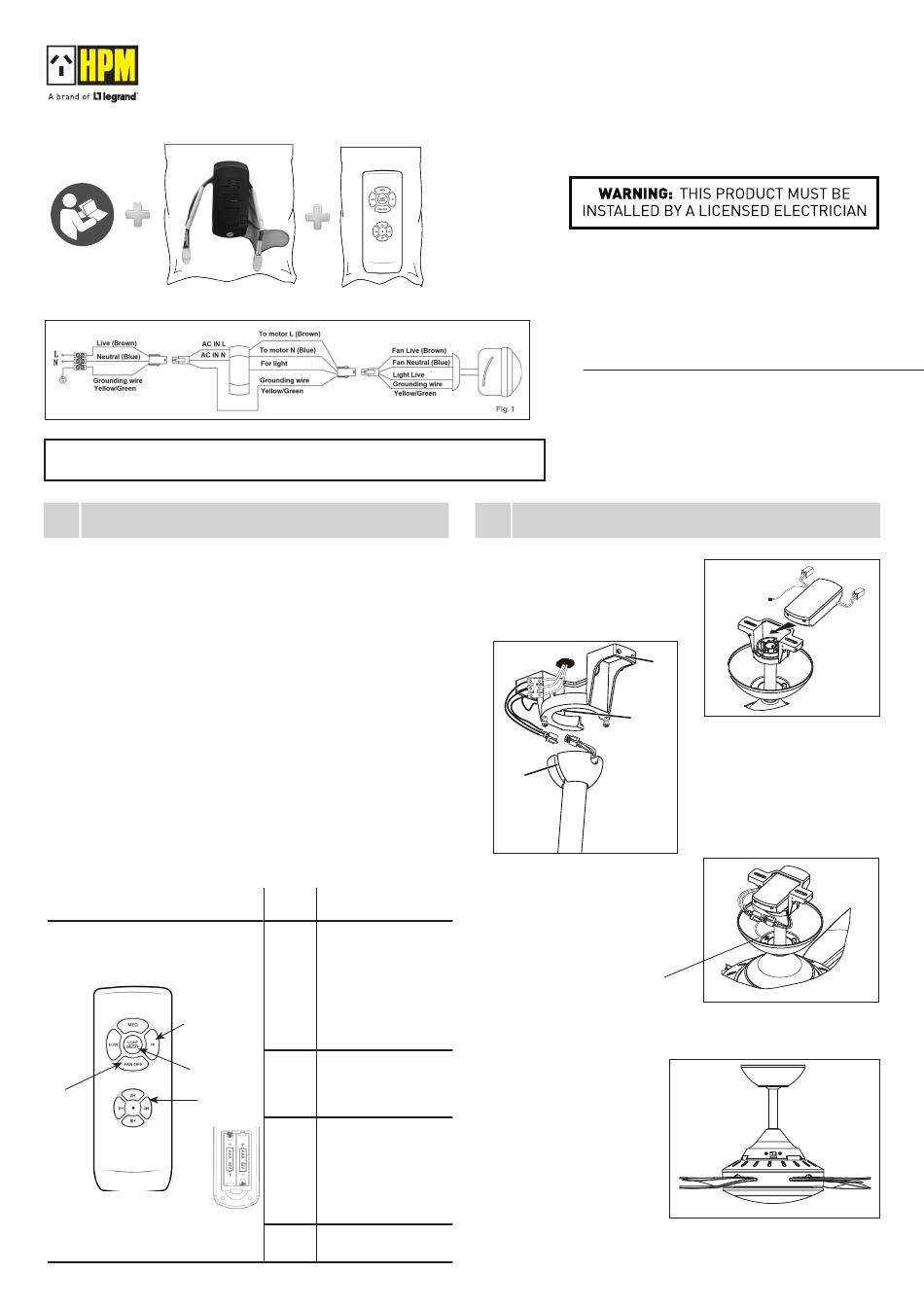

LEGRAND HPM CFSERACREMOTE Instruction Manual

PLEASE READ ALL INSTRUCTIONS CAREFULLY. RETAIN FOR FUTURE REFERENCE.
1 IMPORTANT CONSIDERATIONS
1. The Serene ceiling fan Remote control kit range is compatible
with Serene AC ceiling fans only.
2. Remote control kit is adaptable with hangsure brackets for
ceiling fans.
3. The remote control cannot be used in combination with a wall
mounted fan controller.
4. The same remote control can be used to control several Serene
ceiling fans fitted with the receiver module.
5. Fan can be directly connected using the compatible cable
connectors on the remote control kit.
6. It is not recommended to use the wall control and remote control
together.
7. If the fan model has lights, you can use both the remote and wall
control to switch ON/OFF the lights, unless the wall control is
equipped with a dimmer.
8. The remote and the receiver have already been paired during
manufacturing. If the remote and receiver lose their pairing after
installation or during use, they must be repaired. See the pairing
section.

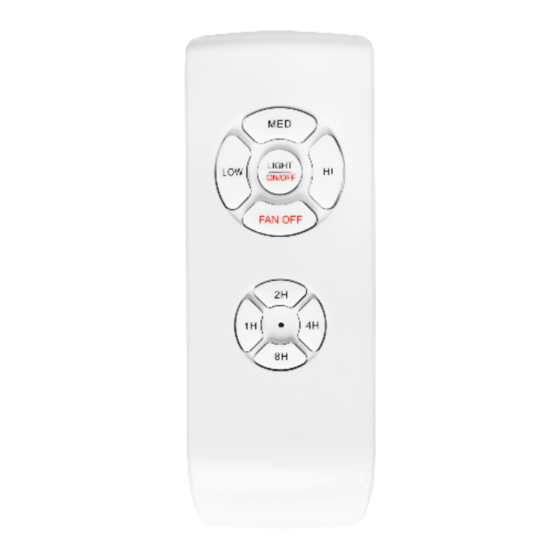

Remote Control
Wall-mount bracket included
Fan Speed
Low, Med & High
Light ON/OFF
Fan OFF
Timer
1, 2, 4 & 8 hrs
(Red)
(Red)
Mode Operation
Allows the fan to run
for a further 1/2/4/8
hours of operation
before switching off
Timer
automatically.
Does not affect the
light output.
Press any speed
Fan
control button (Low,
ON
Med or High)
3 fan speeds can be
selected.
Fan
Fan OFF will switch
Speed
OFF fan when in
Timer mode.
ON /OFF
Light
Serene Ceiling AC Fan Remote Control Kit
Product Specifications
Input Voltage:
Standby:
Output Rating Fan Motor: 100 W max.
Output Rating LED Light: 20 W max.
Light Dimmer:
Box contents
Remote control (2 x AAA 1.5 V DC battery included)
•
• Receiver
• Remote control holder
• Screws
• Wall plugs
2 MOUNTING
Hang the fan on the bracket.
Ensure bracket guide pin is fitted
into slot on ball joint and that all
wires are clear of the ball joint.
A
B
fig.2
RF antenna
Cat. No: CFSERACREMOTE
Instruction Manual
230-240V ~ 50 Hz
< 0.5 W
Non dimmable
C
Insert the receiver into the
bracket and connect the
corresponding connectors
to mains terminal blocks & to
the fan as per fig.1&2.
Fix the canopy to the bracket
by tightening the screw.
SUMMER WINTER
fig.1
