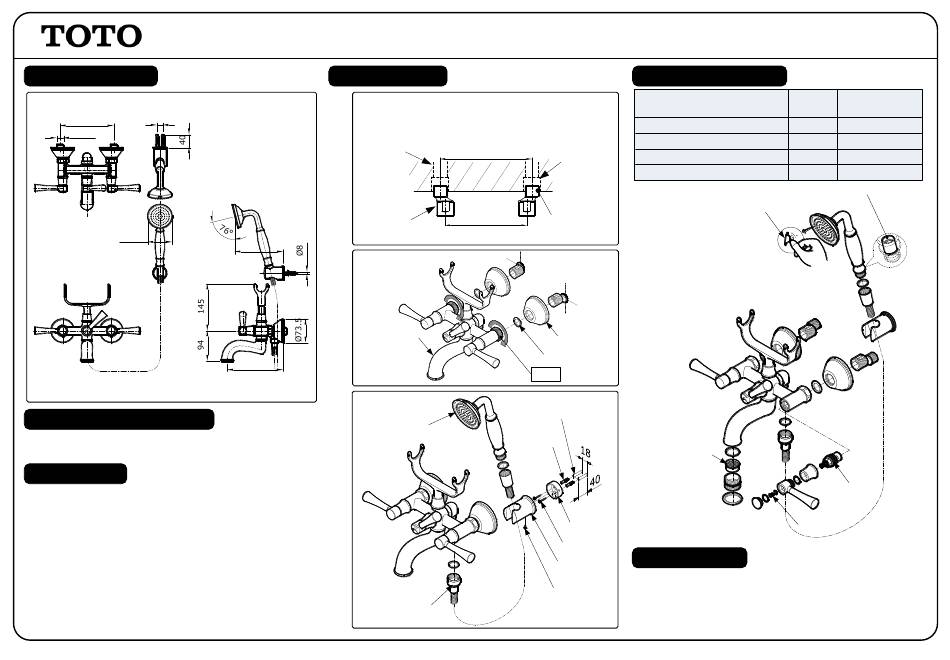

"GLORIA" LEVER HANDLE COMBINATION BATH & SHOWER SET TX411SGZ
SPECIFICATIONS
150±10 18
G½
Ø76
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
Don t use abrasive cleaners or solvents on faucets and
1.
fittings.
Flow Regulator should not be remove because it could
2.
damage the system
3. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
4. The hot water supply side of the faucets is in a condition of
high temperature. Do not allow skin to contact with the
hardware surface directly. Otherwise, scalding may occur.
S06519RR
INSTALLATION
1
MOUNT CONNECTORS PARALLEL WITH THE
Hot
Water
Supply
Leg
149
2
*Tigthen the nut
Body
172
3
Shower
Flexible Hose
w/ Packing
TROUBLESHOOTING
Unsatisfactory spray
WALL
Flow rate unsatisfactory
Cold
Water leaks around the handle
150±10
Water
Handle is loose
Supply
Use Seal tape
(Not Include)
150
Cover
Packing
Nut *
2 X Ø8
Holes
Sleeve
Anchor
Bracket
Screw
MAINTENANCE
Hanger
All Finishes : Clean the finish with mild soap and warm water. Wipe
Bolt entire surface completely dry with clean soft cloth. Many cleaners
may contain chemicals, such as ammonia, chlorine, toilet cleaner
etc. which could adversely affect the finish and are not
recommended for cleaning
CHECK
PROBLEM
POINT
1
2
3
4
Flow Regulator Inside
(Don t remove)
1. NOZZLES
2. STRAINER
4. BOLT
SOLUTION
Clean
Remove and clean
Tighten
Tighten
3. CERAMIC
HEAD WORK
R8
