Toto GLORIA TX411SGC Manual

SPECIFICATIONS
150±10 18
G½
Ø76
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
Flow Regulator should not be remove because it could
2.
damage the system
As the product model is constantly updated, the actual
3.
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
The hot water supply side of the faucets is in a condition of
4.
high temperature. Do not allow skin to contact with the
hardware surface directly. Otherwise, scalding may occur.
S06810Z

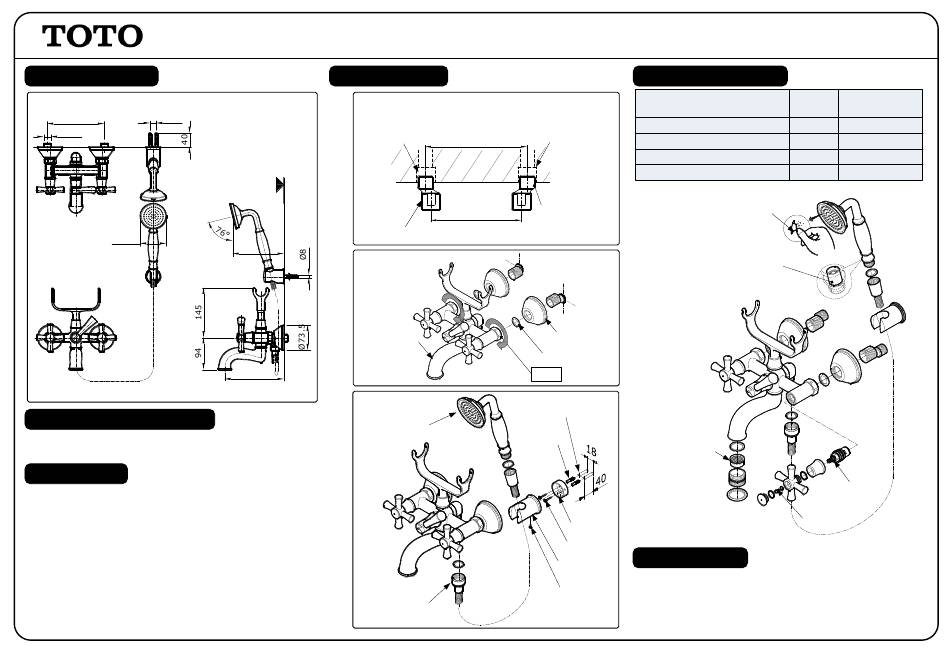

"GLORIA" CROSS HANDLE COMBINATION BATH & SHOWER SET TX411SGC
INSTALLATION
1
MOUNT CONNECTORS PARALLEL WITH
Hot
Water
Supply
WALL
Leg
149
2
*Tigthen the nut
Body
172
3
Shower
Flexible Hose
w/ Packing
THE WALL
Cold
150±10 Water
Supply
Use Seal Tape
(Not Include)
150
Cover
Packing
Nut *
2 X Ø8
Holes
Sleeve
Anchor
Bracket
Screw
Hanger
Bolt
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory spray 1
Flow rate unsatisfactory 2
Water leaks around the handle
3
Handle is loose 4
1. NOZZLES
Flow Regulator Inside
(Don t remove)
2. STRAINER
4. BOLT
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water. Wipe
entire surface completely dry with clean soft cloth. Many cleaners
may contain chemicals, such as ammonia, chlorine, toilet cleaner
etc. which could adversely affect the finish and are not
recommended for cleaning
SOLUTION
Clean
Remove and clean
Tighten
Tighten
3. CERAMIC
HEAD WORK
R6
