ｓｈａｍｐｏｏ ｊｏｙ FERIO　
　Shampoo Chair
●
Product Code
●Open Armrest Type
・Legrest Type
　AY-FROL
　AY-FROLB(Rotatable) AY-FROSB(Rotatable)
●Style Sofa Type
・Legrest Type
　AY-FRSL
　AY-FRSLB(Rotatable) AY-FRSSB(Rotatable)
Operating Manual

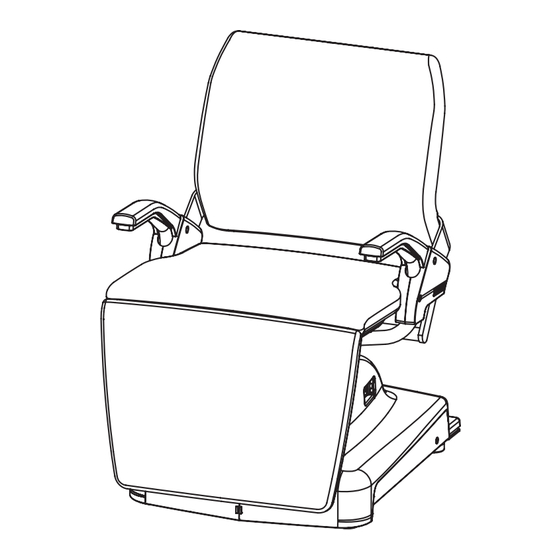

(Image is of AY-FROL)
Thank you for purchasing this Takara Belmont product.
The instructions contained in this
booklet should be thoroughly read and
understood before use.
Using this product before reading this operating manual may result in an
accident. This product is an industrial shampoo unit designed for barbers and
hair salons. Only use this product for its intended purpose and
do not use it for non-hairdressing work.
Keep this manual and refer back to them when required.
1E04TQA0
2024.05
・Step Type
　AY-FROS
・Step Type
AY-FRSS
(Image is of AY-FRSL)
Ver.3

Table of Contents

2
3
6
7
7
8
9
9
10
10
13
14
15
16
16
16
18
19
19
19
20
20
20
21
24
24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the shampoo joy FERIO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Takara Belmont shampoo joy FERIO

Summary of Contents for Takara Belmont shampoo joy FERIO

  • Page 1: Table Of Contents

    3 Return To The Initial Position Maintenance Daily Inspections Before Requesting Repairs Standard Duration of Use Thank you for purchasing this Takara Belmont product. Consumable Supplies The instructions contained in this Disposing of This Product booklet should be thoroughly read and Specifications understood before use.

  • Page 2: Description Of Warning Symbols

    These precautions are important for ensuring safety. Adhere to these precautions at all times. Takara Belmont is not responsible for any damage or risk to the person using this product or those around them due to accidents if this product is used without adhering to the "Safety Precautions", "Precautions for Use"...

  • Page 3: Safety Precautions

    Safety Precautions (Adhere to these precautions at all times) Warning Ground items properly. Adhere to the following when handling power plugs. Click ● E n s u r e t h a t t h i s p r o d u c t i s t h e o n l y a p p l i a n c e Ground c o n n e c t e d t o t h e p o w e r o u t l e t .
  • Page 4 Safety Precautions (Adhere to these precautions at all times) Warning Take care when operating this product. W h e n o p e r a t i n g t h i s p r o d u c t , e n s u r e t h a t t h e c u s t o m e r i s s e a t e d d e e p l y i n t h e s e a t a n d t h a t t h e i r f e e t a r e o n t h e l e g r e s t , a n d k e e p a n e y e o n t h e m d u r i n g o p e r a t i o n .
  • Page 5 Safety Precautions (Adhere to these precautions at all times) Warning Turn the power off after use of the product. Stop using this product if it does not move, or if it feels like there is a problem present. Tu r n t h e p o w e r o ff w h e n t h e p r o d u c t S t o p u s i n g t h i s p r o d u c t a n d c o n t a c t y o u r i s n o t i n u s e t o p r e v e n t f r o m m a l f u n c t i o n .

  • Page 6: Precautions For Use

    Precautions for Use Take care that customers or other people do not Do not lean on the chair (Rotatable type) touch the foot switch or power switch. Do not lean on the chair without care. (AY-FROLB, ●Take care that customers or other people do not touch AY-FROSB, AY-FRSLB, AY-FRSSB）...

  • Page 7: Precautions For Handling Synthetic Leather

    Precautions for Handling Synthetic Leather Handling precautions ●Stains caused by clothing dyes The synthetic leather of this product may become stained by direct contact with clothes or belts. If there is stains, wipe clean as quickly as possible with a 10% detergent solution diluted using water to prevent permanent staining. ●Take care of deformation or stains due to direct contact ・Direct contact with other objects such as plastic products, painted items, solvents or adhesive tape may cause changes to the surface luster, cracking, deformation or peeling.

  • Page 8: Name Of Parts

    Name of Parts Main body Backrest Armrest (AY-FROL) (AY-FRSL) Seat Legrest Adjuster (4 pcs.) Armrest cover Chair upper Blade cover Chair base Power switch Adjuster cover Power plug Foot switch Base cover Power code Control switch Foot switch Preset button Power switch Auto-return button * The preset button and auto-return button...

  • Page 9: Accessories

    Accessories For Legrest type / Step type ・Installation instructions....1 ・Operating manual (this manual)..1 F o r S t e p t y p e Adjuster (38L) x 1 Adjuster holder (47L) x 1 with nut Adjuster (56L) x 1 Adjuster holder (77L) x 1 with nut Before Using This Product This product is a chair designed for using with a shampoo bowl used in hairdressing salon for...

  • Page 10: Preparations

    Preparations Adjust The Height This product is designed for using with shampoo bowl with a neck height of 750 - 800mm. At delivery, the product is set to match a neck height of 775mm. When using this product at different height, adjust the height as per the followings.
  • Page 11 Preparations Only for rotatable type (AY-FROLB, AY-FROSB, AY-FRSLB, AY-FRSSB) (1) Install the chair at the position where the power cord comes out from the back side of the chair. (2) If the chair rattles, adjust it by the base adjuster at 4 places. Base adjusters can be seen when rotating the chair.
  • Page 12 Preparations As a guide, adjust the height from the floor to base of the product as shown in the below illustrations. For a shampoo bowl with neck height of 775 mm. 13mm 40mm For a shampoo bowl with neck height of 800 mm. 38mm 40mm...

  • Page 13: Installation

    Preparations Installation As per the following illustrations, install the chair. (1) Majolica Porto (2) MINON (3) Shampoo Station (4) AQUAFORTE Name of From top of the backrest to Difference in height of backrest and neck From center of back side shampoo basin front end of the bowl adjuster to front end of the base...

  • Page 14: Attach Step Adjuster Of Step Type

    Preparations Attach Step Adjuster of Step Type (Step type: AY-FROS, AY-FR0SB, AY-FRSS, AY-FRSSB) Adjuster holder Adjuster Attach adjuster of step as shown above. The Y distance which is from floor to base of adjuster should be 6 mm to 10 mm. Adjuster holder（77L）...

  • Page 15: Power

    Preparations Power Insert the power plug into Power plug a power outlet. ●Ensure that this product is the only appliance connected to the power outlet. ●Insert the power plug into the power outlet all the way to the base. When removing the power plug, hold the power plug, instead of the cable itself, and pull to remove.

  • Page 16: How To Use

    How to Use Guiding Customers Guide the customer to sit in the seat from the side. Check that the seat is in its initial position. • Holding down (pressing for one second or longer) the DN (DOWN) switch will make the unit "beep", then automatic mode will begin and the seat will return to the initial position.

  • Page 17: Return To The Initial Position

    How to Use Set To Shampooing Position Adjust the shampooing position manually. When minor adjustment of the seat height is required (manual operation) To slightly lower the seat, press the DN (DOWN) switch briefly (pressing for one second or less). To slightly raise the seat, press the UP switch briefly (pressing for one second or less).
  • Page 18 How to Use Rotate the chair (AY-FROLB, AY-FROSB, AY-FRSLB, AY-FRSSB)   Rotate the chair. Hold backrest or armrest, and push the chair lightly, then the chair rotates freely. Rotation range is 215 degrees to clockwise and 130 degrees to anti-clockwise.  ...

  • Page 19: Maintenance

    ■ This is caused by the grease inside the product cooling down, ■ Abnormal sound appears and it is not a mechanical fault.. It will disappear after a while. at the start of the day. ● To request after-sales service, contact your closest dealer or Takara Belmont directly.

  • Page 20: Standard Duration Of Use

    Standard Duration of Use ●The standard period of use of this product is seven years. ●The standard period of use is "a guide for the standard period that this product can be used properly from a safety perspective, when conducting appropriate maintenance and inspections (including replacement of parts) for the standard usage conditions for each product.

  • Page 21: Specifications

    Specifications ●Open Armrest Type ・Legrest Type ・Step Type 　AY-FROL (55kg) 　AY-FROS (55kg) 　AY-FROLB (80kg) 　AY-FROSB (80kg) ●Style Sofa Type Product Code (Weight) ・Legrest Type ・Step Type *The last “B” stands for rotatable type. 　AY-FRSL (57kg) 　AY-FRSS (57kg) 　AY-FRSLB (82kg) 　AY-FRSSB (82kg) Rated voltage AC 220 V Rated frequency...
  • Page 22 Specifications Tolerance of upholstered part is ±15mm, angle is ±2°.
  • Page 23 Specifications Tolerance of upholstered part is ±15mm, angle is ±2°.

  • Page 24: Procedures For Daily Inspections

    Contact your closest dealer. (If holding armrests or backrest when carrying the chair, air may enter into the mechanism.). TAKARA BELMONT CORPORATION 1-1, 2-Chome, Higashi-shinsaibashi,Chuo-ku,Osaka,Japan TEL : (06) 6212-3523 FAX : (06) 6211-5745 Printed in Japan...
