Emerson SolaHD SCM-E-EIP User Manual

Emerson SolaHD SCM-E-EIP User Manual

Ethernet/ip communications module for use with solahd sdn-d power supplies
Hide thumbs Also See for SolaHD SCM-E-EIP:

Advertisement

Quick Links

Download this manual

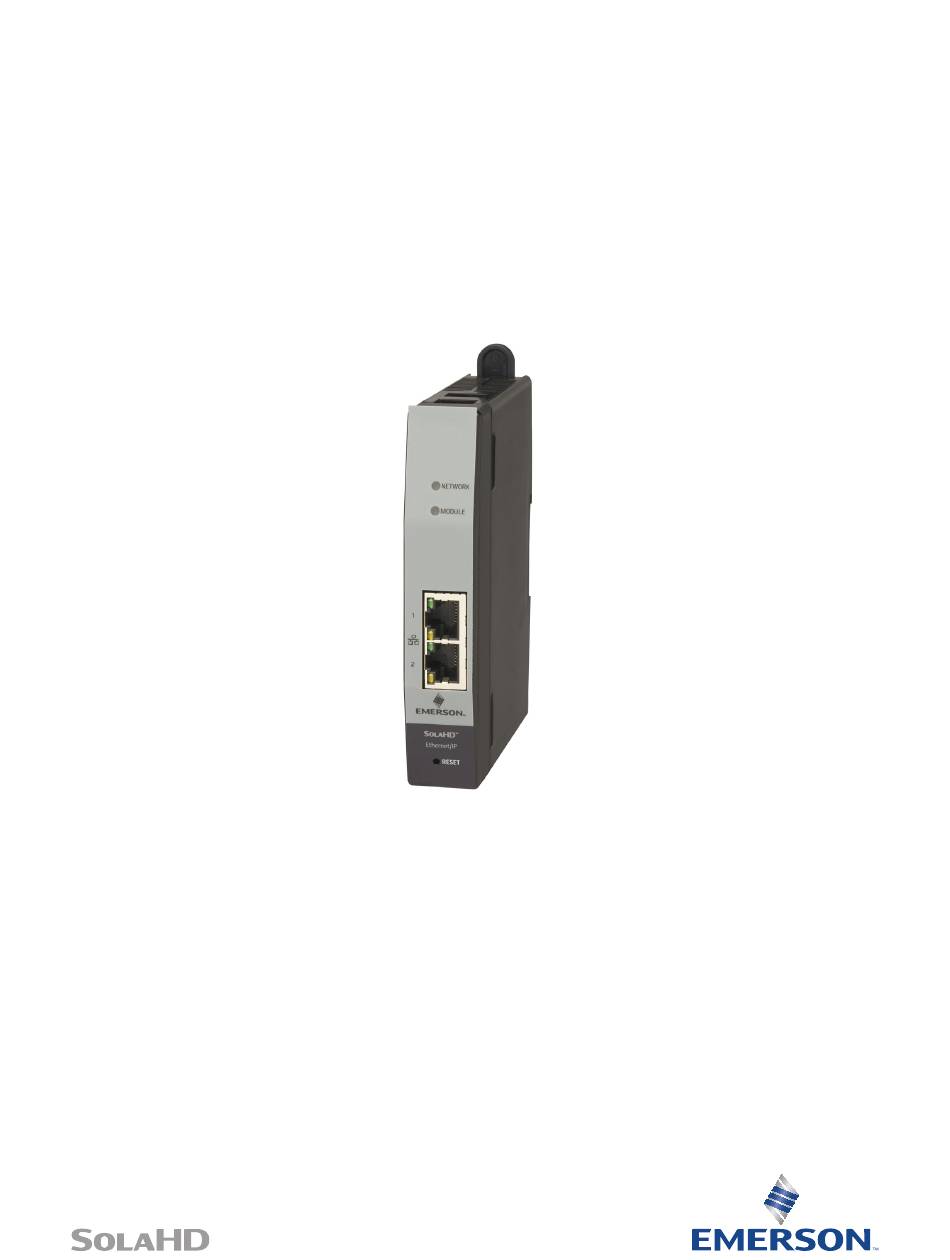

Ethernet/IP Communications Module
(SCM-E-EIP)
SCM SolaHD Communication Module
For use with SolaHD™ SDN-D Power Supplies
User Guide
A272-365 Rev. 1.3
11/2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the SolaHD SCM-E-EIP and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson SolaHD SCM-E-EIP

Summary of Contents for Emerson SolaHD SCM-E-EIP

  • Page 1 User Guide A272-365 Rev. 1.3 11/2024 Ethernet/IP Communications Module (SCM-E-EIP) SCM SolaHD Communication Module For use with SolaHD™ SDN-D Power Supplies...

  • Page 2: Table Of Contents

    2.1.2 STATIC IP ..........................23 2.1.2.1 DIRECT CONNECTION CONFIGURATION ............... 23 2.1.2.2 NETWORK CONNECTION CONFIGURATION ..............23 2.1.3 HMS IP CONFIG TOOL ......................24 2.1.4 STATIC IP CONFIGURATION USING HMS IPCONFIG TOOL............25 3. MONITORING ..........................27 3.1 WEBSERVER MONITORING ......................27 Page: 2 Emerson.com/SolaHD...
  • Page 3 5.6 AVERAGE SCM TEMPERATURE AND OUTPUT CURRENT TREND ............. 63 5.7 LOAD SHARING ALARM ......................... 65 5.8 LOSS OF REDUNDANCY ALARM ..................... 65 5.9 TOTAL USE TIME MONITORING ...................... 66 6. TROUBLESHOOTING ........................67 6.1 TROUBLESHOOTING ........................67 TECHNICAL SUPPORT ........................69 WARRANTY .............................69 Emerson.com/SolaHD Page: 3...

  • Page 4: Revision History

    Rev. 1 8/2022 Final Miscellaneous text and illustration additions Rev. 1.1 3/2023 and changes. Minor instruction clarifications. Illustration Rev. 1.2 11/2023 updates. Corrected Input Voltage Type values. Rev. 1.3 11/2024 Added updates for SCM-E-EIP Phase 2 (2.01) Page: 4 Emerson.com/SolaHD...

  • Page 5: Preface

    A272-365 11/2024 PREFACE Thank you for purchasing SolaHD SCM-E-EIP! This user manual defines how to use the communication functions of SCM-E-EIP. It also contains important safety instructions that must be followed during the installation and operation of the communication module. Before attempting to install the product, please read all safety, installation, operational warnings and instructions thoroughly.

  • Page 6: Introduction

    As an ODVA-conformant Ethernet/IP adapter, the SCM-E-EIP should function properly with any other Ethernet/ IP device meeting ODVA certifications. The web server embedded in the SCM-E-EIP should be compatible with any MS Windows-based Internet browser, including Google Chrome, Microsoft Edge, and Mozilla Firefox. Page: 6 Emerson.com/SolaHD...

  • Page 7: Safety Instructions

    Risk of personal injury and explosion hazard when used in a Class I, Division 2/Class I, Zone 2 environment. Refer to the "Safety Instruction Sheet - SCM Communications Modules" provided with the product or located on our website at www.SolaHD.com. Be sure to adhere to all safety procedures provided in the sheet. Emerson.com/SolaHD Page: 7...

  • Page 8: Product Overview

    -40°C to 85°C Relative Humidity 5-95% RH Altitude 0 to 3,000m Weight/Dimensions 140 x 25.5 x 106.9 mm, with sliding arm H x W x D 123.3 x 25.5 x 106.9 mm, without sliding arm Net Weight 161g Page: 8 Emerson.com/SolaHD...

  • Page 9: Communication Specifications

    100 ms maximum Connection type Exclusive-Owner Connection Number of clients that can communicate Class 3 at one time: 6 Explicit message Number of clients that can communicate UCMM at one time: 6 Default IP Address DCHP enabled Emerson.com/SolaHD Page: 9...

  • Page 10: Construction

    This LED indicator is used to indicate the status of the module. For full details on the status LEDs, refer to the Network and Module Status Indicators section. ETHERNET PORT This dual Ethernet port is used to connect the SCM-E-EIP to the network. Page: 10 Emerson.com/SolaHD...

  • Page 11: Network And Module Status Indicators

    Connection timeout which this device is the target has timed out. The SCM has detected that its IP Steady Red Duplicate IP address is already in use. Flashing Green / Red Self-test SCM is performing a self-test. Emerson.com/SolaHD Page: 11...

  • Page 12: Indicators At Power Up

    These cables are inserted into one of the I2C ports of the SCM-E-EIP. For the location of the I2C port, refer to Section 1.3. For the Ethernet port connectors, use a standard RJ45 cable (shielded Cat6 or higher). Page: 12 Emerson.com/SolaHD...

  • Page 13: Wiring: Scm-E-Eip And Sdn-D 1:1 Connection

    A272-365 11/2024 The sections below show the wiring of the SCM-E-EIP to the SDN-D power supply. 1.5.3.1 WIRING: SCM-E-EIP AND SDN-D 1:1 CONNECTION The set-up below shows typical connections of one SCM-E-EIP to one SDN-D Power Supply. Emerson.com/SolaHD Page: 13...

  • Page 14: Wiring: Scm-E-Eip And Sdn-D 1:2 Connection

    1. PRODUCT OVERVIEW User Guide 11/2024 A272-365 1.5.3.2 WIRING: SCM-E-EIP AND SDN-D 1:2 CONNECTION The set-up below shows typical connections of one SCM-E-EIP to two SDN-D Power Supplies. Page: 14 Emerson.com/SolaHD...

  • Page 15: Wiring: Scm-E-Eip And Sdn-D Device Level Ring (Dlr) Connection

    DLR topology. In this example, each SCM-E-EIP is connected to a single SDN-D Power Supply. This setup also makes use of a ring supervisor, a device that verifies the integrity of the ring, reconfigures the ring to recover from a single fault, and collects diagnostic information for the ring. Emerson.com/SolaHD Page: 15...

  • Page 16: Plc Connection

    Section 4 EDS File and Class 1, Class 3 data. 1.5.4.1 WIRING: STAR TOPOLOGY The set-up below shows the wiring of a SCM-E-EIP - SDN-D Power Supply to a Rockwell Allen Bradley Logix Processor in star topology. Page: 16 Emerson.com/SolaHD...

  • Page 17: Wiring: Device Level Ring (Dlr) Topology

    User Guide 1. PRODUCT OVERVIEW A272-365 11/2024 1.5.4.2 WIRING: DEVICE LEVEL RING (DLR) TOPOLOGY The set-up below shows the wiring of a SCM-E-EIP - SDN-D Power Supply to a Rockwell Allen Bradley Logix Processor in ring topology. Emerson.com/SolaHD Page: 17...

  • Page 18: Spacing

    1. PRODUCT OVERVIEW User Guide 11/2024 A272-365 1.5.5 SPACING The setup below shows the spacing of the SCM-E-EIP to the SDN-D Power Supplies. Please note that all devices are mounted on a standard DIN-rail. Page: 18 Emerson.com/SolaHD...

  • Page 19: Accuracy Parameters

    125°C. DC Status DC OK DC OK flag becomes active when output voltage > 22, and < 28.5 Vdc. DC Not OK flag becomes active when output voltage < 21.5 or DC NOT OK > 29 Vdc. Emerson.com/SolaHD Page: 19...

  • Page 20: Psu Stress Level Indicator

    None Read Serial Number None Read Manufacturing Info None Read Manufacturer Name SolaHD None Read Model Revision None Read Primary Revision None Read Secondary Revision None Read MAC Address 00:00:00:00:00:00 None Read Factory dependent, no fixed value Page: 20 Emerson.com/SolaHD...
  • Page 21 0.0.0.0 None Read/Write Subnet Mask 0.0.0.0 None Read/Write Gateway Address 0.0.0.0 None Read/Write Host Name Read/Write Domain name Read/Write DNS Server #1 0.0.0.0 None Read/Write DNS Server #2 0.0.0.0 None Read/Write Port 1 Read/Write Port 2 Read/Write Emerson.com/SolaHD Page: 21...

  • Page 22: Network Configuration/ Ip Settings

    SCM-E-EIP will request an IP address from the DHCP server or DHCP server application upon boot up and initialization. Note: The configuration of the DHCP server application is not mentioned in this user guide. Please see the specific user manual of the DHCP server application. Page: 22 Emerson.com/SolaHD...

  • Page 23: Static Ip

    PC and the SCM-E-EIP as shown in Section 2.1.2.1, or by connecting the SCM-E-EIP to a network where the computer used to configure the SCM-E-EIP is a part of, as shown in Section 2.1.2.2. 2.1.2.1 DIRECT CONNECTION CONFIGURATION 2.1.2.2 NETWORK CONNECTION CONFIGURATION Emerson.com/SolaHD Page: 23...

  • Page 24: Hms Ip Config Tool

    1. Click this link to download HMS IPConfig Tool from the Emerson website. 2. After the download is finished, unpack the items on the zip file and run the installer. 3. Connect the SCM-E-EIP to the PC where you installed the HMS IP Config tool, preferably via a direct connection.

  • Page 25: Static Ip Configuration Using Hms Ipconfig Tool

    2. Uncheck the DHCP Configuration to Disable dynamic IP setting from a DHCP server. 3. Type the IP Address, Subnet mask, Default Gateway (if applicable) in the IP Configuration section. 4. Type the Primary DNS, Secondary DNS, Host Name in the DNS Configuration (if applicable). Emerson.com/SolaHD Page: 25...
  • Page 26 Command Prompt or PowerShell (ping 192.168.1.21) or by pressing the Open web page icon. Pressing the Open web page icon will open the overview page of the SCM-E-EIP’s web graphical user interface using the PC’s default web browser. Page: 26 Emerson.com/SolaHD...

  • Page 27: Monitoring

    (This step can be skipped.) 4. Once the connection is established, open the desired browser and type the IP address (192.168.1.5) on the address bar. 5. The webserver should be loaded with the default tab opened (Overview tab). Emerson.com/SolaHD Page: 27...

  • Page 28: Menu Hierarchy

    Under Parameters tab, the Live Parameters tab shows all the measurement data, event flags, user alarms and redundancy alarms of all devices (SDN-D Power supplies, etc.) connected to the communications module. Page: 28 Emerson.com/SolaHD...
  • Page 29 Once the PS1 or PS2 | Enable Alarm value is set to Enabled, the firmware will start evaluating the live parameter periodically and check if the parameter exceeds the threshold limit. Emerson.com/SolaHD Page: 29...
  • Page 30 < Threshold < Threshold 0x00000002 < Threshold < Threshold < Threshold < Threshold > Threshold 0x00000003 < Threshold < Threshold > Threshold > Threshold < Threshold 0x00000004 < Threshold < Threshold > Threshold > Threshold > Threshold 0x00000005 Page: 30 Emerson.com/SolaHD...
  • Page 31 > Threshold < Threshold 0x0000001C > Threshold > Threshold > Threshold > Threshold > Threshold 0x0000001D > Threshold > Threshold > Threshold < Threshold < Threshold 0x0000001E > Threshold > Threshold > Threshold < Threshold > Threshold 0x0000001F Emerson.com/SolaHD Page: 31...
  • Page 32 The Events tab shows all the flagged alarms, their corresponding code, and description. It also contains a download button to save the flagged events in a csv file. The Trends tab shows last hour and 24 hours averaging calculation data of SCM temperature and SDN-D power supplies output current. Page: 32 Emerson.com/SolaHD...

  • Page 33: System Tab

    Data Instance and Web GUI structure) of the SCM. Gen 2 (2.01) refers to the dataset for Phase 2 SCM as specified in this document. In case of Gen 1 (1.12) dataset, please refer to User Guide Rev 1.2 for the complete Process Data, Application Data and Web GUI structure. Emerson.com/SolaHD Page: 33...

  • Page 34: Network Tab

    DNS servers. By changing this configuration, the SCM Module will lose the existing connection. The status of the DHCP can also be changed in this tab. Note: A power cycle or Type 0 Reset is required for the changes in IP configuration to take effect. Page: 34 Emerson.com/SolaHD...

  • Page 35: Eds File And Class 1, Class 3 Data

    EDS repository in order to be accessed by the Logix Designer. The EDS file for the SCM-E-EIP can be downloaded from the following location: https://www.appleton.emerson.com/catalog/en-us/shop/appleton/solahd-sdn-d at the DOCUMENTS & DRAWINGS tab under SOFTWARE DOWNLOADS & DRIVERS. The procedure below is the Class 1 IO connection set-up of the SCM Module to the Allen Bradley CompactLogix using the EDS file method: 1 To import the EDS file, select EDS Hardware Installation Tool under Tools.
  • Page 36 4. EDS FILE AND CLASS 1, CLASS 3 DATA User Guide 11/2024 A272-365 2 Click Next until you reach the Registration process. Page: 36 Emerson.com/SolaHD...
  • Page 37 User Guide 4. EDS FILE AND CLASS 1, CLASS 3 DATA A272-365 11/2024 Emerson.com/SolaHD Page: 37...
  • Page 38 4. EDS FILE AND CLASS 1, CLASS 3 DATA User Guide 11/2024 A272-365 3 Tick 'Register a single file' and click the Browse button to select the EDS file on the host PC. Page: 38 Emerson.com/SolaHD...
  • Page 39 User Guide 4. EDS FILE AND CLASS 1, CLASS 3 DATA A272-365 11/2024 4 Click Next until the prompt ends. Emerson.com/SolaHD Page: 39...
  • Page 40 4. EDS FILE AND CLASS 1, CLASS 3 DATA User Guide 11/2024 A272-365 Page: 40 Emerson.com/SolaHD...
  • Page 41 “SCM” or “SOLAHD”. Select "SCM-E-EIP" and click the Create button. 6 Enter the desired name that will be shown in the controller tags, description, and IP address of the module. Emerson.com/SolaHD Page: 41...

  • Page 42: Rockwell Allen-Bradley Logix Processor Monitoring

    PC to locate the PLC. Ensure the PLC is set to PROG or REM before going online to download the program. 2 To download the program to the PLC, click on the Go Online button in the Select Recent Communications Path window. Page: 42 Emerson.com/SolaHD...
  • Page 43 User Guide 4. EDS FILE AND CLASS 1, CLASS 3 DATA A272-365 11/2024 3 Click ‘Download’ on the next prompt. 4 After downloading the program to the PLC, data can now be accessed through the controller tags. Emerson.com/SolaHD Page: 43...

  • Page 44: I/O Data And Explicit Messaging Connections

    REAL 0.1 A +-2.5 % (Note 3) P1|Max Vin UINT +-5 % P1|Max Temp SINT 1 °C (Note 2) P1|Max Vout Timestamp UDINT 1 sec P1|Max Iout Timestamp UDINT 1 sec P1|Max Vin Timestamp UDINT 1 sec Page: 44 Emerson.com/SolaHD...
  • Page 45 UDINT 1 sec P2|Max Iout Timestamp UDINT 1 sec P2|Max Vin Timestamp UDINT 1 sec P2|Max Temp Timestamp UDINT 1 sec P2|Alarm Flag WORD P2|Stress Level WORD P2|DC OK WORD Reserved Bytes BYTE [20] RED|Alarm Flag DWORD Emerson.com/SolaHD Page: 45...

  • Page 46: Class 3 Application Data Interface

    UINT16 Get Access only P1|Vout FLOAT Volts Get Access only P1|Iout FLOAT Amps Get Access only P1|Vin UINT16 Volts Get Access only P1|Temperature SINT16 °C Get Access only P1|LED Status UINT16 See Section 4.3.4 Get Access only Page: 46 Emerson.com/SolaHD...
  • Page 47 Get Access only P2|Event Flags BITS16 See Section 4.3.5 Get Access only P2|Time On Now UINT32 seconds Get Access only P2|Lifetime On UINT32 seconds Get Access only P2|Vin Type UINT16 1 - AC; 0 - DC Get Access only Emerson.com/SolaHD Page: 47...
  • Page 48 Get Access only 0 - Disable; P1|Enable Alarm UINT16 Set / Get Access 1 - Enable 0 - Disable; P2|Enable Alarm UINT16 Set / Get Access 1 - Enable See Section SCM|Alarm Flag BITS32 Get Access only 4.3.6.2 Page: 48 Emerson.com/SolaHD...
  • Page 49 Get Access only 4.3.7 Refer to Section P1|Event Data 12 STRUCT Get Access only 4.3.7 Refer to Section P1|Event Data 13 STRUCT Get Access only 4.3.7 Refer to Section P1|Event Data 14 STRUCT Get Access only 4.3.7 Emerson.com/SolaHD Page: 49...
  • Page 50 Get Access only Section 4.3.7 Refer to P1|Event Data 33 STRUCT Get Access only Section 4.3.7 Refer to P1|Event Data 34 STRUCT Get Access only Section 4.3.7 Refer to P1|Event Data 35 STRUCT Get Access only Section 4.3.7 Page: 50 Emerson.com/SolaHD...
  • Page 51 Get Access only Section 4.3.7 Refer to P1|Event Data 54 STRUCT Get Access only Section 4.3.7 Refer to P1|Event Data 55 STRUCT Get Access only Section 4.3.7 Refer to P1|Event Data 56 STRUCT Get Access only Section 4.3.7 Emerson.com/SolaHD Page: 51...
  • Page 52 Get Access only Section 4.3.7 Refer to P2|Event Data 10 STRUCT Get Access only Section 4.3.7 Refer to P2|Event Data 11 STRUCT Get Access only Section 4.3.7 Refer to P2|Event Data 12 STRUCT Get Access only Section 4.3.7 Page: 52 Emerson.com/SolaHD...
  • Page 53 Get Access only Section 4.3.7 Refer to P2|Event Data 31 STRUCT Get Access only Section 4.3.7 Refer to P2|Event Data 32 STRUCT Get Access only Section 4.3.7 Refer to P2|Event Data 33 STRUCT Get Access only Section 4.3.7 Emerson.com/SolaHD Page: 53...
  • Page 54 Get Access only Section 4.3.7 Refer to P2|Event Data 52 STRUCT Get Access only Section 4.3.7 Refer to P2|Event Data 53 STRUCT Get Access only Section 4.3.7 Refer to P2|Event Data 54 STRUCT Get Access only Section 4.3.7 Page: 54 Emerson.com/SolaHD...

  • Page 55: Scm Led Status Detail

    Decimal Value Hex Value No Power No IP Address Standby No IP Address Standby No Connection Standby Connection Timeout Device Operational Connected Device Operational Connection Timeout Major Recoverable Fault No IP Address Major Recoverable Fault No Connection Emerson.com/SolaHD Page: 55...

  • Page 56: Power Supply Led Status Detail

    Green Blinking Heavy Load Operation Green Blinking, Red Blinking Abnormal Power Boost (alternating) Operation Abnormal Red Blinking Short Circuit Operation Over Temperature Abnormal Red Steady Protection Operation Abnormal Red Steady Overvoltage Protection Operation Abnormal No DC Output Operation Page: 56 Emerson.com/SolaHD...

  • Page 57: Power Supply Event Flags Detail

    Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Value Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Power Supply Output Input Input Average Current Value Reserved Reserved Reserved Temperature Current Voltage Voltage Trend High High Hight High Emerson.com/SolaHD Page: 57...

  • Page 58: Scm Alarm Flag

    Reserved Reserved Reserved Reserved Reserved Value Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Value Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Loss of Load Value Reserved Reserved Reserved Reserved Reserved Reserved Redundancy Sharing Alarm Alarm Page: 58 Emerson.com/SolaHD...

  • Page 59: Event Data Structure Detail

    Byte [2] Byte[1] Event Start Start No Event (also refer to Event Code) 4.3.7.3 EVENT TIMESTAMP DEFINITION Timestamp Definition Conversion (Little Endian format) Byte [4] Byte [5] Byte [6] Byte [7] Dec (seconds) 0xC8 0x89 0x00 0x00 0x000089C8 35,272 Emerson.com/SolaHD Page: 59...

  • Page 60: 24-Hour Average Definition

    Byte Byte Byte Byte Byte Byte Byte Byte Byte Byte Byte Byte [97] [98] [99] Average lout [0] lout [1] lout[24] lout P2 Current Hour Average P2 Previous Hour Average P2 Previous 24-Hour Average lout Iout lout Page: 60 Emerson.com/SolaHD...

  • Page 61: User Alarms And Diagnostics

    When the real time sensed PSU mains voltage goes below input voltage low threshold, an alarm is generated. The threshold is user configurable via the Alarms Page. This alert can be useful to indicate a low mains voltage condition. Emerson.com/SolaHD Page: 61...

  • Page 62: Input Voltage High

    1 when the load current is equal to or greater than 21A. The alarm bit will be set to 0 when the temperature is less than or equal to 19A. Page: 62 Emerson.com/SolaHD...

  • Page 63: Psu Temperature

    The SCM temperature trend can be useful to indicate increased cabinet temperature or ambient around the SCM/power supplies over longer periods. Due to low self-rise of SCM, the SCM temperature sensor mimics the SCM surrounding temperature. See App note Temperature Sensing Using the SolaHD (SCM-E-EIP) Communication Module Emerson.com/SolaHD Page: 63...
  • Page 64 On the next hour (hour 27), after shifting and recording a new average, compute percent difference of AA to C (array element 0 to array element 24) and compare to user configurable threshold. And so on. NOTES: SCM On time is used for Tscm, Iout average calculation. • Page: 64 Emerson.com/SolaHD...

  • Page 65: Load Sharing Alarm

    The loss of redundancy alarm is also valid for different rated power supplies • Loss of redundancy alert will also be triggered if one of the two redundant power supplies • becomes non-performing (DC OK status = NOT OK). Emerson.com/SolaHD Page: 65...

  • Page 66: Total Use Time Monitoring

    Early Alert = Total On time > early threshold in hours of operation Critical Alert = Total ON time > critical threshold in hours of operation This can help manage power supply assets by automatically scheduling replacement based on actual on time/ usage and recommended replacement schedule. Page: 66 Emerson.com/SolaHD...

  • Page 67: Troubleshooting

    One of the PSUs connected to the Check the status of the SDN-D Module LED indicator is SCM-E-EIP encountered a major power supplies connected to the blinking red. recoverable fault. SCM and correct any issues. Emerson.com/SolaHD Page: 67...
  • Page 68 The GUI logo and format is The SCM-E-EIP internal filesystem Contact technical support. not Emerson. has been damaged or corrupted Restart the affected SDN-D Power supply. The SDN-D Power Supply data SDN-D Power Supply and/or...

  • Page 69: Technical Support

    Note that unit specifications are subject to change without notice. TECHNICAL SUPPORT Website: www.solahd.com Technical Support E-Mail: solahd.technicalservices@emerson.com Toll-Free: (800) 377-4384 USA: (847) 268-6651 WARRANTY Please see the “Terms & Conditions of Sale” document within the UPS packaging. While every precaution has been taken to ensure accuracy and completeness in this manual, Appleton Grp LLC d/b/a Appleton Group assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions.
