Summary of Contents for Pfeiffer Vacuum TCM 1601

  • Page 1: Manufacturer's Declaration

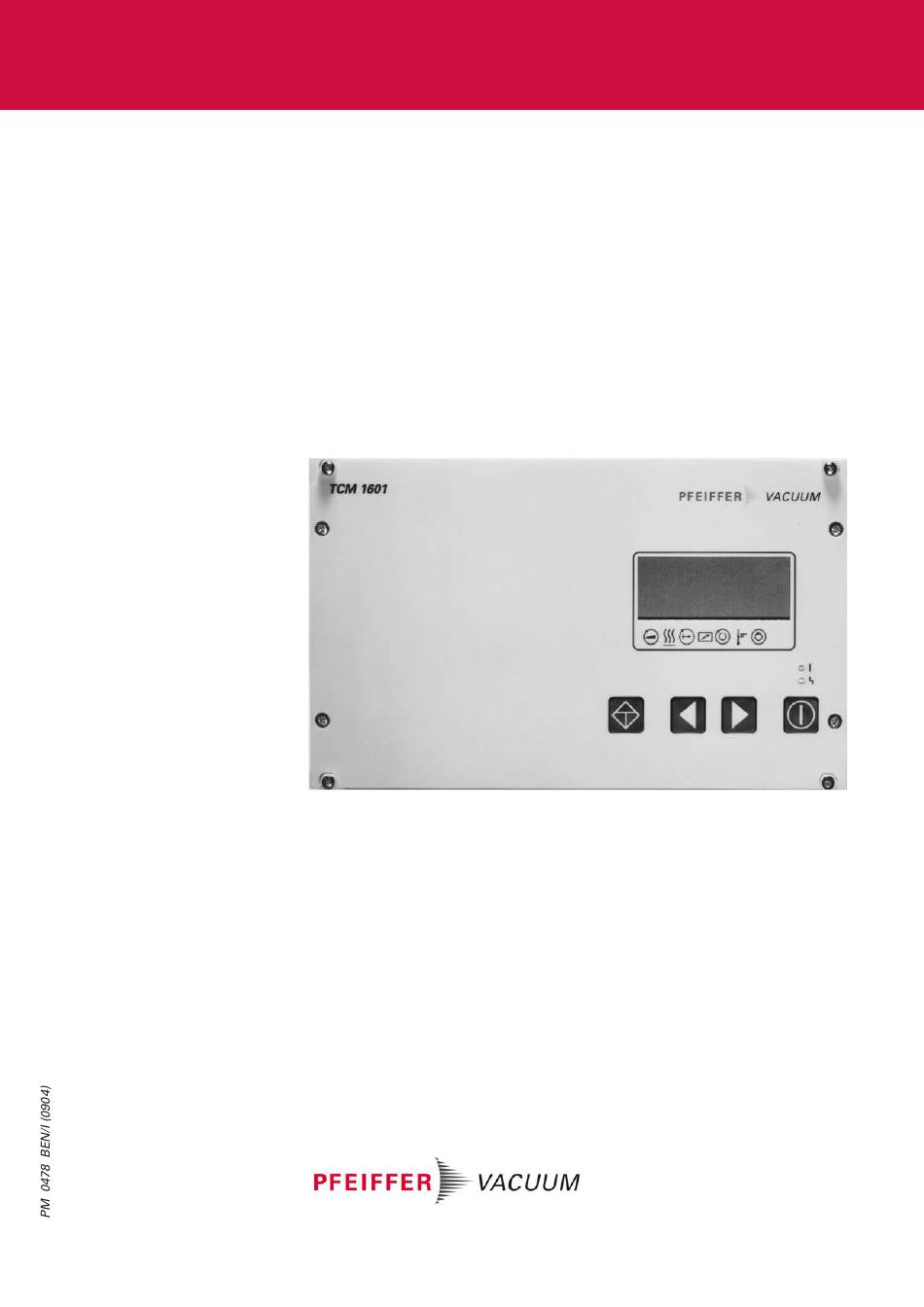

    Betriebsanleitung • Operating Instructions Magnetic Bearing Controller TCM 1601...
  • Page 2: Table Of Contents

    9. Maintenance, Service ......23 LC Display................11 10. Technical Data ........24 4.3. Abbreviated Overview Operating........12 10.1. Data List, Magnetic Bearing Electronic TCM 1601..24 4.4. Operating Examples............12 10.2. Dimensions Diagram ............24 Illuminated Displays ............13 Operations Messages (Line 3) ........
  • Page 3: Safety Precautions

    ☞ Take account of the ambient conditions when installing the Danger of personal injury. TCM 1601. The protection type is IP20. WARNING The unit is protected against the ingress of foreign bodies ≥ ø 12 mm. Because water protection is not provided the unit must be fitted into a suitable housing (please see Section 3.
  • Page 4: Understanding The Tcm 1601

    Parameter description SPC = Stored Program Control Proper Use – The Magnetic Bearing Controller TCM 1601 may only be 2.2. Product Description used to drive and monitor PFEIFFER magnetic bearing turbomolecular pumps. The Magnetic Bearing Controller TCM 1601 serves to drive –...
  • Page 5: Description Of The Front Panel

    2.5. General Description Of The Unit 2.3. Description Of The Front Panel The Magnetic Bearing Electronic Unit TCM 1601 contains a number of monitoring and control options for your vacuum pump and for the pumping process. It can be operated via the keypad, serial interface or remote control.
  • Page 6: Installation

    Heating Connection S1 10A S2 2A The mains voltage on X4.2 can be in the range 90-132/190 - Fore Vacuum Safety Valve 265 V. Mains voltage commutation for the TCM 1601 is not Power Supply Operation necessary. Connection Backing Pump RS 485 ➡...
  • Page 7: Connecting The Pump And The Venting Valve

    WARNING accordance with connections diagram section 3.2. open connection of a running down pump. ➡ Use the mains cable from the TCM 1601 for the TCS 180 mains connection. There is a danger of an electric shock by ➡ Connect cable connection X4.1/TCS 180 with X4/TCM 1601.
  • Page 8: Connecting The Remote Control Unit

    Pin Arrangement X20 3.9. Connecting The Remote Control Unit The TCM 1601 or the complete pumping station can be remote Description Function controlled via plug X16. Before connecting the remote X20.1 Closer control, the remote mode should be selected (please refer to X20.2...
  • Page 9: Connecting The Pressure Gauges

    P P I I N N A A r r r r a a n n g g e e m m e e n n t t ➡ Connect the level converter to X17/TCM 1601 by an equiva- not connected lent cable.
  • Page 10: Operating And Display Elements

    4. Operating And Display Elements 4.1. Operating Elements The four push-buttons on the front panel have the following functions: Push-Button Application/Example Explanation Reset (malfunction acknowledgement) acknowledges malfunctions (red LED illuminates) 309: Act rotspd Scroll Parameters Backwards 310: TMP I-Mot scrolls a parameter backwards 50% ...
  • Page 11: Display Elements

    Symbol Definitions 4.2. Display Elements LC Display Symbol Meaning Display Explanation 721: Vent time Line 1 120 s Pump – Line 2 data not changed Line 3  accelerates Line 4 Pre-selection – Symbols housing-/ TMS- Pre-selection heating ON heating The display of the functions is shown via a four line LC ...
  • Page 12: Abbreviated Overview Operating

    4.3. Abbreviated Overview, Operating Operating Examples Switching on the magnetic bearing controller ➡ Switch on the unit on the rear side with switch S1. Switching on the pumping station ➡ Select [ [ P P : : 7 7 9 9 4 4 ] ] «Param. Set» and set to «1 1 » ➡...
  • Page 13: Illuminated Displays

    Set values numerical modifying of a value The total of the available parameters represents a parameter user the TCM 1601 provides three parameter sets which set. differ from each other in the number of parameters and their sorting. The respective parameter set can be selected via the To adapt this parameter to the individual requirements of the parameter [ [ P P : : 7 7 9 9 4 4 ] ] «P P a a r r a a m m .
  • Page 14: Parameter Overview, Numerical

    5.2. Parameter Overview, numerical Setting Commands (readable and writable) RS 485 1) Data typ 2) Display Name, Description fact. set.  OFF 3) Heating Pre-selection, heating. 0=OFF; 1=ON  OFF 3) Standby Standby 0=off; 1=on  RUTime ctr Run-up time monitoring, 0=OFF; 1=ON 008* Keyboard interlock –...
  • Page 15: Parameter Overview, Operational

    5.3. Parameter overview, operation oriented Display Name, Description fact. set. RS 485 Sect. Run up time and switch point • RUTime ctr Run-up time monitoring ON/OFF • TMP RUTime Maximum run-up time in mins 6.2.,6.4. • Switch pnt Switchpoint in % 6.4.,6.11.
  • Page 16: Operations

    The standby rotation speed is changeable. The TCM 1601 carries out a self test. This is identifiable on the LC display with «S S E E L L F F ».After the end of the self test the unit is ➡...
  • Page 17: Air Cooling On/Off

    Activating the TMS heating Select gas mode ➡ Select [ [ P P : : 7 7 9 9 4 4 ] ] «Param. Set» and set to «1 1 ». ➡ Select [ [ P P : : 7 7 9 9 4 4 ] ] «Param. Set» and set to «1 1 ». ➡...
  • Page 18: Rotation Speed Setting Via Inlet Pwm

    Section 3.11.) the pressure in the vacuum chamber is display- The operation of the HV valve in conjunction with the ed on the TCM 1601. pumping station status and the valve status is described in Operating Instructions PM 800 384 BN for the TCS 180.
  • Page 19: Operation Backing Pump

    Operation Backing Pump 6.11. Switching Off The Pumping Station ➡ Press key-button Depending on the selected backing pump and the vacuum on the front panel. As an alternative, application the operations mode “non-stop operations” or the pumping station is switched off via the remote control “intermittent operations”...
  • Page 20: Venting The Turbopump

    Remote Control Priority "ON" Venting release ➡ Select [ [ P P : : 0 0 1 1 2 2 ] ] «Vent enab», set to «O O N N ». Where certain application situations are involved, for example SPC control, the remote control functions can be assigned prioritized switching.
  • Page 21: Serial Interface Rs 485 Operations

    6.17. Emergency Current Operations With Battery Box TBB 001 The group adress of the TCM 1601 is 988. All units connected to the bus must have differing serial interface adresses The battery box TBB 001, connected to X29, takes over the [ [ P P : : 7 7 9 9 7 7 ] ] .
  • Page 22: Error Messages And Warnings

    7. Errors And Warnings M M e e a a n n i i n n g g a a r r i i s s e e s s w w h h e e n n w w h h e e n n r r e e s s e e t t t t a a b b l l e e T T r r o o u u b b l l e e s s h h o o o o t t i i n n g g «Error Exxx»...
  • Page 23: What To Do In The Case Of Breakdowns

    8. What To Do In Case Of Breakdowns? Check The Fuses During operations, the last ten errors and warnings are saved In case of defects: in error storage [ [ P:360-369] ] . ➡ Remove F1 and F2 using a screwdriver and check fuses. Replace if defective.
  • Page 24: Technical Data

    T T e e m m p p e e r r a a t t u u r r e e M M a a n n a a g g e e m m e e n n t t S S y y s s t t e e m m (TMS) / pump temperature: °C 60-90 Serial interface: RS 485 Low rotation speed mode, adjustable: 20-100 Weight: *non condensing safety low voltage (26-42 VDC) 10.2. Dimensions Maßbild TCM 1601 128,5 mm 213 mm 120 mm 452 mm...
  • Page 25: Connections Diagram

    11. Connections Diagram PM 041 892 -S...
  • Page 26: Accessories

    12. Accessories D D e e s s c c r r i i p p t t i i o o n n S S i i z z e e N N u u m m b b e e r r O O p p e e r r a a t t i i n n g g O O r r d d e e r r Q Q u u a a n n t t i i t t y y / / I I n n s s t t r r u u c c t t i i o o n n s s...
  • Page 27 Konformitätserklärung Declaration of Conformity im Sinne folgender EU-Richtlinien: pursuant to the following EU directives: - - E E l l e e k k t t r r o o m m a a g g n n e e t t i i s s c c h h e e V V e e r r t t r r ä ä g g l l i i c c h h k k e e i i t t / / E E l l e e c c t t r r o o m m a a g g n n e e t t i i c c C C o o m m p p a a t t i i b b i i l l i i t t y y 8 8 9 9 / / 3 3 3 3 6 6 / / E E W W G G - - N N i i e e d d e e r r s s p p a a n n n n u u n n g g / / L L o o w w V V o o l l t t a a g g e e 7 7 3 3 / / 2 2 3 3 / / E E W W G G Hiermit erklären wir, daß...
