- Page 1 Tele TC cable 110 Operating Instructions...
- Page 2 Table of contents Table of contents About this manual..........3 Validity.

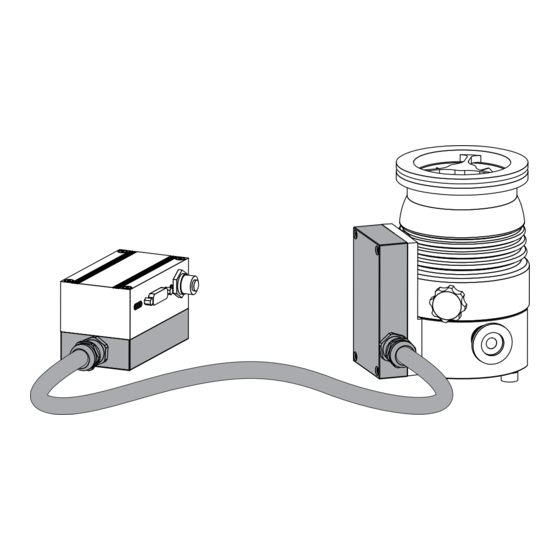

- Page 3 EU directives and reassess it accordingly. The Tele TC cable 110 serves to the connection between the turbopump HiPace and the respective electronic drive unit TC 110 for separate operation. Installation location...
- Page 4 Tele TC cable 110 connection with standard cable departure on HiPace pumps 3.1 Scope of delivery • Tele TC cable 110, length and cable departure according to the ordering • Allen head screws M3x25 (4x) • Hexagon screws M4x6 (2x) •...
- Page 5 Installation 4 Installation 4.1 Preparatory work CAUTION Damages to the pump and drive Even after the mains power is switched off, the subsequently running pump delivers electric power to the electronic drive unit. There is a danger of electric body contact by premature separating the pump from the electronic drive unit.
- Page 6 5 Accessories NOTE Installation and operation of accessories Pfeiffer Vacuum pumps can be equipped with a series of adapted accessories. The in- stallation, operation and maintenance of connected devices are described in detail in the operating instructions of the individual components.
- Page 7 Dimensions Fig. 6: Connection example of Pfeiffer Vacuum accessories to a turbopump with Tele TC cable 6 Dimensions 60.5 14.96 M4 - 8/9 deep 125.5 Fig. 7: Tele TC cable 110...
- Page 8 Leading. Dependable. Pfeiffer Vacuum stands for innovative and custom Customer Friendly vacuum solutions worldwide. For German engineering art, competent advice and reliable services. Ever since the invention of the turbopump, we´ve been setting standards in our industry. And this claim to leadership will continue to drive us in the future.
