HAKO Scrubmaster B5 Operation

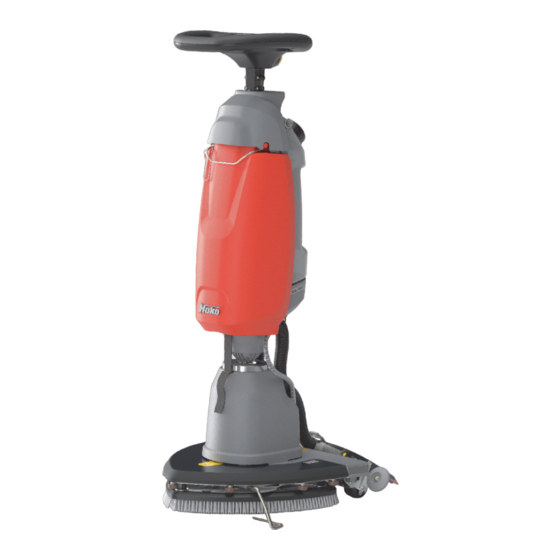

Hako Scrubmaster B5
1. Turn off the battery charger, disconnect the chargers plug from the battery
and attach the battery to the machine
2. Pull out the locking bolt
bolt. Remove the fresh water tank
water tank is inserted in the reverse order.
3. Fold up the stand for the park position 5. Lower the squeegee
footrest 7.
4. Press the ON/OFF button
Press the ON/OFF button again, suction function
5. Hold the handle and release the rotary lock 10, brush motor and water
switches on.
6. Push the machine in the desired direction. Adjust the fresh water with the
button 11 (if necessary).
7. For more cleaning performance, switch off the ECO mode with button 12.
Qualified persons only are authorised to operate the machine!
The machine is not designed for coarse material, sweep the floor first!
Use only cleaning agents suitable for automatic machines! (low foaming)
10
1
5
OPERATION
2 and lift the tank cap
8
Note! Make sure that pad/brush is installed!
2
9
7
6
12
1.
4 and fill the tank (max 50°C). The fresh
for approx.3 sec. The machine is ready to use.
3
3 up and release the locking
9 is switched on.
4
11
8
6 with the
