SAESHIN E-CUBE Instruction Manual

Hide thumbs

Advertisement

Table of Contents

INSTRUCTION MANUAL
www.saeshin.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-CUBE and is the answer not in the manual?

Questions and answers

Related Manuals for SAESHIN E-CUBE

Summary of Contents for SAESHIN E-CUBE

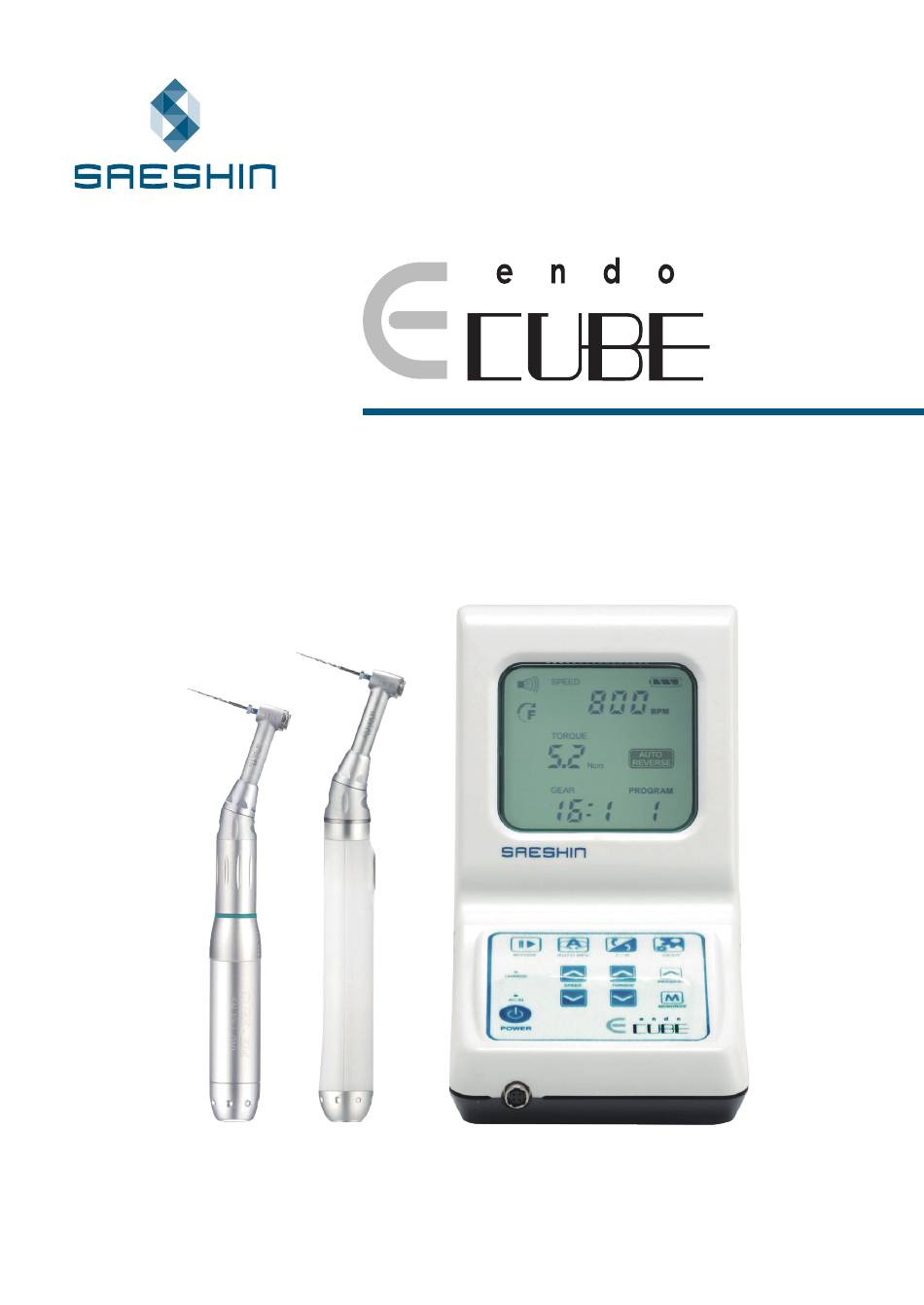

  • Page 1 INSTRUCTION MANUAL www.saeshin.com...
  • Page 2 INTRODUCTION USER GUIDELINES PRODUCT FEATURES & ADVANTAGES PRODUCT COMPONENTS PART NAME OF CONTROL BOX BUTTONS ON OPERATION PANEL LCD WINDOW CONNECTION OF EACH PART OPERATION PROCESS MAINTENANCE OF THE PRODUCT ATTENTION PRODUCT SPECIFICATION ELECTROMAGNETIC COMPATIBILITY INFORMATION WARRANTY SYMBOL...
  • Page 3 • Qualified Professional <Intended purpose> • Engine that power the implant handpiece in dental implant procedure. • The E-CUBE is indicated for use by dentists in standard endodontic procedures using rotary endodontic files and rotary endodontic drills. <Classification of equipment>...
  • Page 4 USER GUIDELINES CAUTION · Please pay attention to the use considering the patient’s safety first of all. · Check condition of the product before use. · Stop to use and inspect the product when an abnormal sign such as calescence, vibration or noise occurs before or during operation.
  • Page 5 WARNING · Please watch old person, children, or disabled person near the place that the product is installed. If so, do not let them alone. · Do not drop or damage the handpiece. In case of malfunction, dropping, or dropping in water, do not use it and contact the manufacturer.
  • Page 6 PRODUCT FEATURES & ADVANTAGES <Endo Mode> - Max. RPM : 10:1 16:1 20:1 13,000 RPM 3,250 RPM 1,300 RPM 800 RPM 650 RPM - The free-running speed of the handpiece shall be in accordance with the manufacturer’s instructions at a tolerance of ±10 % as specified. (Refer to ISO 14457) - Max.

  • Page 7: Product Components

    PRODUCT COMPONENTS * Please check all components are included. Component Control Box Adaptor Angle Handpiece (Option) Motor Handpiece (Option) Motor Stand Foot Controller Battery (Including in the control box)
  • Page 8 PART NAME OF CONTROL BOX Foot Controller Connector Motor Connector...
  • Page 9 BUTTONS ON THE OPERATION PANEL Power Button : Push the power button over the 1 second, power is turned on/off. Motor Button : Push the motor button, Motor runs or stops. Auto Reverse Button : Use for setting the automatic reverse mode. Three modes can be selected. Operation Direction Button : Use for selecting the rotary direction.

  • Page 10: Lcd Window

    LCD WINDOW 1. Beep Sound Display : It shows the beep sound. 2. Battery Display : There are three bars which indicate battery power and each bar display about 30-35% of power condition. If there's no battery bars, the battery must be discharged or has very low voltage condition so battery have to be recharged.
  • Page 11 CONNECTION OF EACH PART 1. Motor Connection : Please insert the pins of motor cord to the holes position of control box carefully. - To remove the motor, hold the plug ring and pull it out. 2. Adaptor Connection : Please insert the adaptor plug into the adaptor connector exactly. (When charging the battery.) - Please use the designated adaptor only.

  • Page 12: Operation Process

    OPERATION PROCESS 1. Turn on the control box by pressing the power button over the 1 second. 2. Select the program number by pressing the program button. 3. Save the program by pressing the memory button over the 1 second after setting the auto reverse mode, gear ratio, speed(RPM), torque.

  • Page 13: Maintenance Of The Product

    MAINTENANCE OF THE PRODUCT 1. Cleaning ■ Angle Handpiece ① Rotate the head in a tap water about 10 seconds with maximum speed to remove the remains (blood, physiologic saline solution, etc.) and rinse. ※ Do not put tap water in the motor. ②...

  • Page 14: Troubleshooting

    4. Battery Replacement E-CUBE uses rechargeable battery. Battery is reused about 300 ~ 500 cycles, the span life may be different according to handpieces. Replace the battery when it shows shorter operation and recharging time and weak torque than set up.
  • Page 15 Problem Cause Remedy The adaptor is not connected to Check the connection. the control box. The adaptor plug is not inserted into the Check the connection. adaptor connector exactly, or there is no electricity in the outlet. The adaptor-LED is not operated.
  • Page 16 ATTENTION 1. Please read the notice below before operating the product. 1) Check the connection of every cords and correct operation when power-on. 2) Check the earth connection is safe. 3) Make sure to check the contact part to patient. 4) If not use the adaptor, check the charging volume of battery.

  • Page 17: Product Specification

    PRODUCT SPECIFICATION 1. Control Box E-CUBE Model Name Input DC 20 V, 1.5 A Output DC 6 V (Max) Charging Time Approx. 5 hours 2. Motor Model Name CUBE EP Rated Input DC 6 V (0~6 V) Max. RPM 13,000rpm...

  • Page 18: Electromagnetic Compatibility Information

    EN 55011 not likely to cause any interference in nearby equipment. RF emission – CISPR 11 Class A EN 55011 E-CUBE is suitable to use in all establishments, Harmonic emission – including domestic establishments and those directly IEC 61000-3-2 Class A...
  • Page 19 IEC 60601 test level Compliance level Electromagnetic environment – guidance Portable and mobile RF communications equipment should be used no closer to any Conducted RF part of the E-CUBE including cables, 3Vrms IEC 61000-4-6 3Vrms than the recommended separation distance 150kHz to 80Mhz...

  • Page 20: Warranty

    WARRANTY SAESHIN guarantees out product for 1 year from invoice date, and product warranty means that SAESHIN has responsibility of defective material or operation failure. The product warranty does not cover user’s misuse, wrong installation, inappropriate maintenance and repair, and normal wear of consumables such as bearings, spindle, gear, and rotator.
  • Page 21 SYMBOL Power Button Motor Button Auto Reverse Button Operation Direction Button Gear Ratio Button Charging-LED Adaptor-LED Speed Button Program Button Torque Button Consult Instruction for Use Memory Button Manufacturer General Caution Sign EC Representative General Warning Sign General Prohibition Sign Serial Number Autoclave Foot Controller...
  • Page 22 MEMO...
  • Page 23 MEMO...
  • Page 24 This product is the medical device. 1639 MERIDIUS MEDICAL EUROPE LIMITED Unit 3D, North Point House North point Business Park New Mallow Road CORK, T23AT2P, Ireland +353 212066448 Tel. 82-53-587-2341 / Fax. 82-53-580-0999 www.saeshin.com / traus@saeshin.com SOM-S006S-E Rev.1 2023-01-30...
