- Page 1 ENDO INSTRUCTION MANUAL www.saeshin.com...
-
Page 2: Table Of Contents

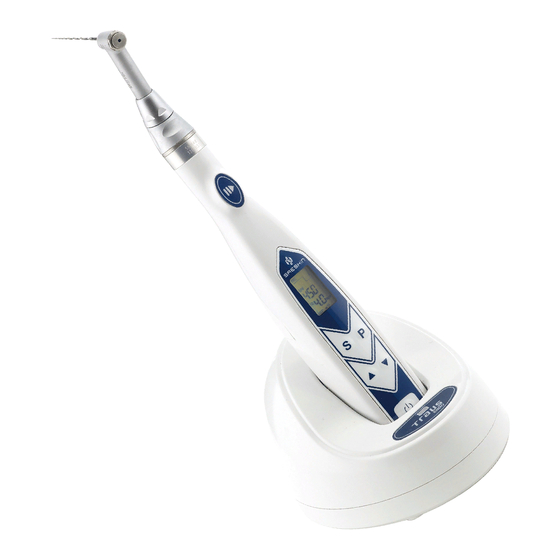

This product is cordless handpiece for root canal treatment. This motor has to be used only in hospital environment, clinics or dental offices by qualified dental personnel. Read this operation Manual carefully before use for operation instructions, care and maintenance. Keep this operation Manual for future reference. Table of contents INTRODUCTION USER GUIDELINES... -
Page 3: Introduction
INTRODUCTION This product is medical device. Make sure to read this user manual before using. This user manual is to assure proper installation and use. Pay attention to read this user manual in order to making the best use of this product and to assure the prolonged lifespan before using. -
Page 4: User Guidelines
USER GUIDELINES CAUTION · Please consider the safety of patient first and take care during the product operating. · Only qualified person in dental surgery can be allowed to use the product. · Please purchase the battery recommended by manufacturer and take care of the usage manual of battery manufacturer before use it for the product. - Page 5 Warning · The motor handpiece designed as Ni-MH battery(rechargeable). The Ni-Cd battery is possible to use but the charging time and usage period can be shorten because the charging current is different. · The motor handpiece spend even small electric power during power off. And genially, rechargeable battery is discharging little by little when the product is not in use after charged fully.
- Page 6 PRODUCT FEATURES & ADCANTAGES <Feature> - Simple interface design for easy control - Freedom of activity during operation by wireless handpiece - Ergonomic and compact body * rpm Gear Ratio 10:1 16:1 20:1 32:1 500 ~ 2,300 rpm 200 ~ 1,000 rpm 100 ~ 600 rpm 100 ~ 600 rpm 100 ~ 600 rpm...
-
Page 7: Product Components
•When the batteries go down (when the remaining amount of the batteries mark indicates), the actual load may not reach the setting torque limit value. In this case (in the case of operation by batteries), this auto reverse function will not be activated. When high torque is required, use the adaptor or use (when the mark of the remaining amount of the batteries indicates). -
Page 8: Buttons On The Operation Panel
BUTTON ON THE OPERATION PANEL Power Button : Push the power button until the power is on and the LCD panel lights. Push the power button until turn off over the 1 second. Select-S Button - The button is to select the setting for gear ratio, torque, auto reverse Program-P and Memory Button : Select a program from 1 to 5 and use this button to save the memory. -
Page 9: Connection Of Each Part
CONNECTION OF EACH PART 1. Connection of charger ① Connector the power cord to the power cord connection socket on the back of the charger. (Picture 1) ② Insert the power cord and plug in. ③ Plug the motor handpiece into the charger with it facing forward. (Picture 2) ( Picture 1) ( Picture 2) 2. -
Page 10: Operation Process
OPERATION PROCESS 1. Turn on the power by pressing down the Power button ( 2. Press the Program button ( ) to find the appropriate program for your file. 3. If no program has been set, set as below. ※ The program can be used from 1 to 5 and the user can set up to the desired value. 4. - Page 11 - The full charge time is about 2.5 hours, but it may be different depending on the battery usage, new and old batteries, and general operating environment (temperature and humidity). Older batteries may have a shorter charging life. - While charging, the battery part may get slightly heated, but this is not a malfunction. - Charging completion time may vary depending on the remaining battery charge.
-
Page 12: Maintenance Of The Product
MAINTENANCE OF THE PRODUCT 1. Cleaning ■ Angle handpiece ① Rotate the head in a tap water about 10 seconds with maximum speed to remove the remains (blood, physiologic saline solution, etc.) and rinse. ※ Do not put tap water in the motor handpiece. ②... - Page 13 * If the continuous operation, please put the oil every an hour. * When lubrication, please hold the angle handpiece firmly because the angle handpiece can go out by the spray pressure. * Do not insert the oil into the motor handpiece. It may cause failure. * When cleaning handpiece, do not use solvent systems such as benzene or thinner, but do not wash plastic products (charger, motor handpiece) with aldehyde.
-
Page 14: Product Specification
PRODUCT SPECIFICATION 1. Motor handpiece Model name TRAUS MCE10XX Input DC 4.5V Output DC 2.4V Battery charging time Approx. 2.5 hours Battery discharging time Approx. 9 hours (No load) 2. Angle handpiece/Prophy head Angle handpiece Prophy head Model name ACL(B)-41EP ACL(B)-42EP ACL(B)-45EP ACL(B)-46EP... -
Page 15: Electromagnetic Compatibility Information
- Consult the manufacturer or filed service technician for help. Electromagnetic Emissions The TRAUS ENDO is intended for use in the electromagnetic environment specified below. The customer or the user of the TRAUS ENDO should assure that is used in such an environment. Emission test Compliance Electromagnetic environment - guide TRAUS ENDO uses RF energy for internal operation. - Page 16 Electromagnetic Immunity The TRAUS ENDO is intended for use in the electromagnetic environment specified below. The customer or the user of the TRAUS ENDO should assure that is used in such an environment. IEC 60601 Emission test Compliance level Electromagnetic environment – guidance...
- Page 17 Electromagnetic Immunity The TRAUS ENDO is intended for use in the electromagnetic environment specified below. The customer or the user of the TRAUS ENDO should assure that is used in such an environment. IEC 60601 Immunity test Compliance level Electromagnetic environment – guidance...
- Page 18 TRAUS ENDO The TRAUS ENDO is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the TRAUS ENDO can help prevent electromagnetic interference by maintaining a minimum...
-
Page 19: Warranty
Normal wear of the consumables such as ball bearing, gear, chuck, spindle case ass’y, motor, etc. Faulty by Act of God Foreign language manual support This manual is offered in Korean and English. If other languages are needed, please contact Saeshin will offer a final version of the manual. SYMBOL... - Page 20 입니다. / This product is medical device. MERIDIUS MEDICAL EUROPE LIMITED Unit 3D, North Point House North point Business Park New Mallow Road CORK, T23AT2P , Ireland +353 212066448 Tel. 82-53-587-2341 / Fax. 82-53-580-0999 Tel. 053-587-2345 / Fax. 053-580-0918 www.saeshin.com / traus@saeshin.com SOM-S059S-E Rev.0 2020-03-01...
