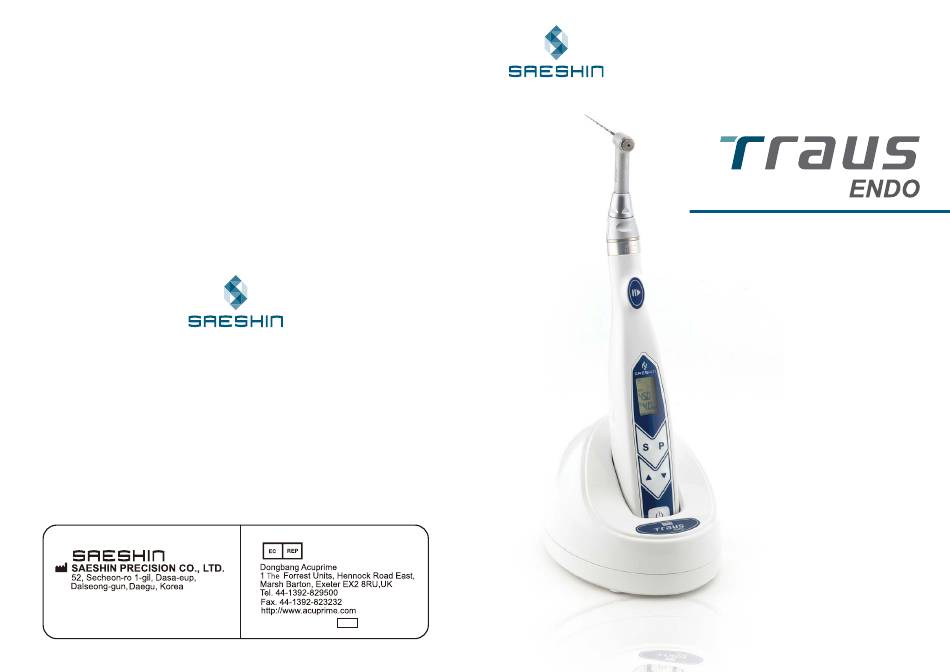

- Page 1 INSTRUCTION MANUAL Tel.82-53-587-2341 / Fax.82-53-580-0999 SOM-S056S-KE Rev.5 www.saeshin.com...

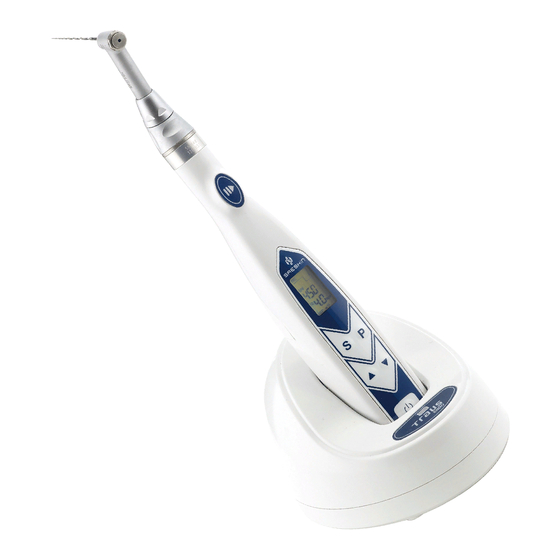

- Page 2 Traus ENDO is cordless handpiece for Root canal treatment. This motor has to be used only in hospital environment, WARNING clinics or dental offices by qualified dental personnel. Read this operation Manual carefully before use for operation instructions, care and maintenance. Keep this MACHINE CLASSIFICATION operation Manual for future reference.
- Page 3 WARNING Caution ◆Take care not to put needle, pin into the charging terminal of the ◆Please consider the safety of patient first and take care during Regarding to WARNINGS battery charger. the product operating. ◆Place the motor handpiece into the charger after clean the liquid or ◆Only qualified person in dental surgery can be allowed to ◆Please use the product properly after read the dust off.
-
Page 4: Product Features
PRODUCT FEATURES COMPONENTS ●Contra angle ●Motor Handpiece ● Simple interface design for easy control ● Freedom of activity during operation by wireless handpiece ● Ergonomic and compact body ●Charging Station ●Power cord <Endo mode> •RPM: (20:1) 100~600 RPM / (16:1) 100~600RPM •Torque: (20:1) 1~4N.cm / (16:1) 1~4N.cm •Gear Ratio: 16:1, 20:1 •Rotate Mode: Level 1, 2... -
Page 5: Lcd And Operation Panel
LCD AND OPERATION PANEL CONTROLLER LCD AND OPERATION PANEL Operation panel AUTO REVERSE: ---------------------------------------------------------------- If the load is removed after auto reverse rotation, it returns to the normal rotation again. No display AUTO REVERSE OFF: --------------------------------------------------------- Auto reverse rotation is not activated. BATTERY SYMBOL: ---------------------------------------------------------- shows 3 Steps for charging amount... - Page 6 OPERATIONS Changing File --------------------------------------------------------------------------- How to charge -------------------------------------------------------------------------------- Insert the File to the chuck Push it into until “Click” sound. Plug the Power cord jack into the inlet placed back side of Charging Station. ※ File removing: Press Push Button and pull the file out Insert the Power cord and plug in.
- Page 7 AUTO-REVERSE FUNCTION ------------------------------------------------- CLEANING •If load on the file is reach to preset torque, alarm sound changes. If load on the file is over than preset torque, three modes can be selected as below. •The three Auto-rotation mode is available to set by pressing down Select (S) button three times. WARNING Lubricating Contra Angle Then press down the Up/Down button to select the mode.
-
Page 8: Troubleshooting
TROUBLE SHOOTING GENERAL MANDATORY *When trouble is found, check the following before contacting dealer. If none of these are applicable or the trouble is not remedied even after action has been taken, contact dealer. *Clean inside of the product before sterilize to avoid dirt and blood stuck inside. *Do not use the product in wrong way and be careful for safety. -
Page 9: Warranty
Problem Cause Solution The motor handpiece Contra angle stuck Clean the head or change it. does not rotate WARRANTY * SERVICE CHARGE (Handpiece=1 year/Control Box=1 year) In case of the fault or malfunction from the misuse of the user -Using with wrong Input Voltage *The warranty does not cover the damages by -In case of user’s misuse or improper use user’s misuse and normal wear-out of spare parts.
