Summary of Contents for SAESHIN TRAUS SIP20

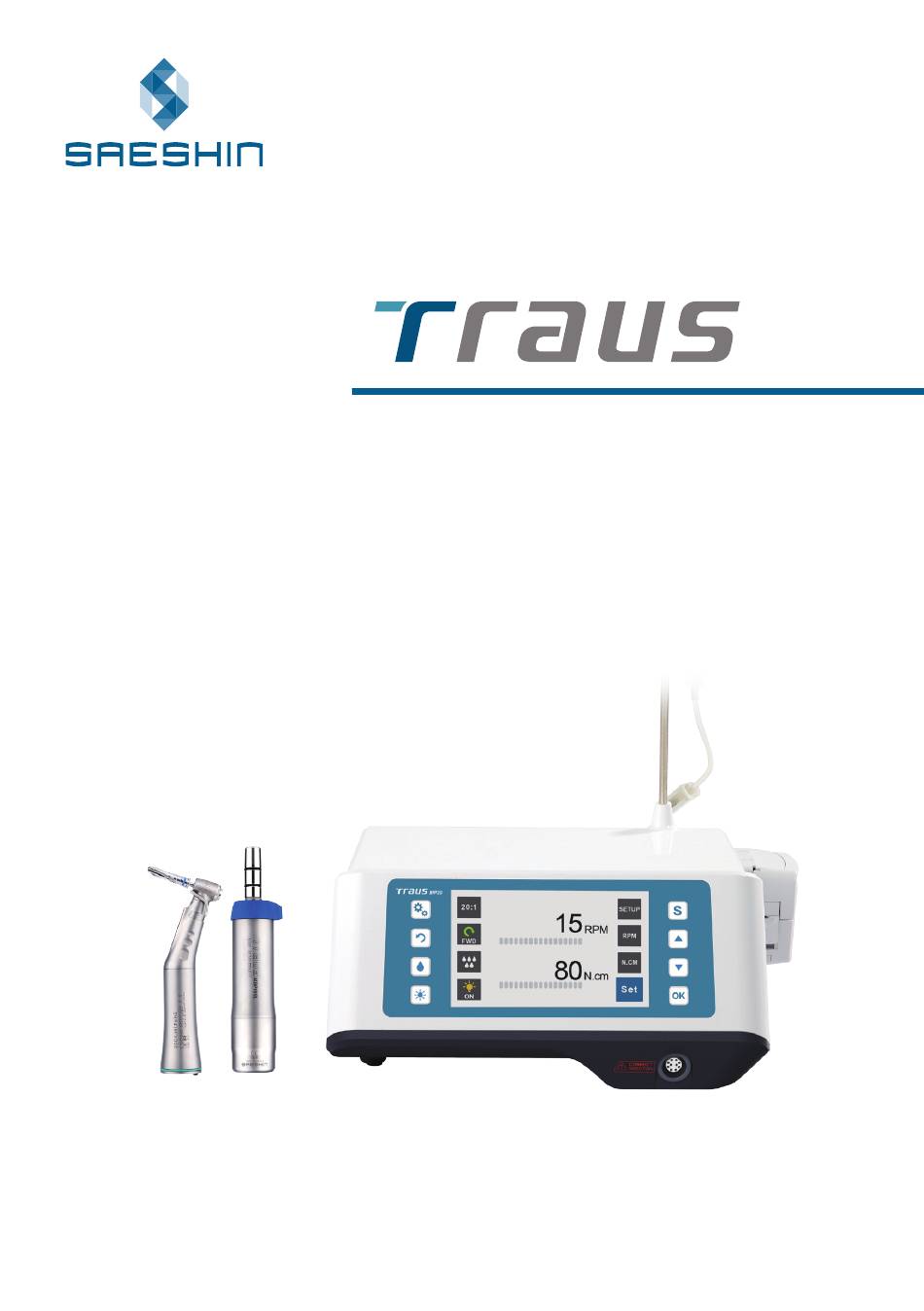

- Page 1 SIP20 USER MANUAL www.saeshin.com...
-
Page 2: Table Of Contents
SIP20 Table of contents INTRODUCTION USER GUIDELINES PRODUCT FEATURES & ADVANTAGE PRODUCT COMPONENTS PART NAME OF CONTROL BOX BUTTONS ON THE OPERATION PANEL LCD WINDOW BUTTONS ON THE FOOT CONTROLLER CONNECTION OF EACH PART OPERATION PROCESS MAINTENANCE OF THE PRODUCT ATTENTION PRODUCT SPECIFICATION ELECTROMAGNETIC COMPATIBILTY INFORMATION... -
Page 3: Introduction
<User> • Qualified Professional <Intended use> • TRAUS SIP20 is intended for use in dental surgery, implantology, maxilla-facial surgery and endodontics for treatment of dental hard tissue and mechanical rotating root canal preparation. <Classification of Equipment> • Type of protection against electric shock: ClassⅠ equipment •... -
Page 4: User Guidelines
USER GUIDELINES CAUTION · Please pay attention when using to consider the patient’s safety most importantly. · Check the condition of the product before use. · Stop using and inspect the product when an abnormal sign occurs such as calescence, vibration or noise before or during operation. - Page 5 WARNING · Please watch old person, children, or disabled person near the place that the product is installed. If so, do not let them alone. · Do not drop or damage the angle handpiece. In case of malfunction, dropping or falling in water, do not use it and contact the manufacturer.
-
Page 6: Product Features & Advantage
PRODUCT FEATURES & ADVANTAGES <BLDC motor designed by SAESHIN’s own technology and know-how> - Provide the optimized performance by BLDC motor and standard angle handpiece. - RPM : Gear Ratio 16:1 20:1 32:1 1,000 ~ 2,000 ~ 5,000 ~ 30 ~... -
Page 7: Product Components
PRODUCT COMPONENTS * Please check all components are included. (Some components may be changed by the manufacture.) ① ⑨ ② ⑩ ③ ⑪ ④ ⑫ ⑤ ⑬ ⑥ ⑭ ⑦ ⑮ ⑧ Component Component Control Box Internal Spray Nozzle (Optional) Motor Cap (For Sterilization of motor) Angle Handpiece Tube Holder... -
Page 8: Part Name Of Control Box
PART NAME OF CONTROL BOX LCD Display Main Power Socket Main Power Switch Fuse Box Foot Controller Connector Gear Ratio Button Menu Button Rotation Direction Button Control Button Irrigation Button Optic Button OK Button... -
Page 9: Buttons On The Operation Panel
BUTTONS ON THE OPERATION PANEL Gear Ratio Button : This is used for selecting the gear ratio of the handpiece used during the procedure. > 1:1 -> 1:2 -> 1:5 -> 16:1 -> 20:1 -> 32:1 Rotation Direction Select Button : This is used for selecting the direction of rotation (Forward, Reverse). -
Page 10: Lcd Window
LCD WINDOW 20:1 SETUP N.CM Torque N.cm Set up Set up 1. Gear Ratio Display : It shows current set of gear ratio. 2. Rotation Direction Display : It shows the selected direction. 3. Irrigation Volume Display : It shows selected irrigation stage. The stage is 0 to 5 (Stage 0 = No volume / stage 5 = Maximum volume). Number of Water drop shows the volume stage. -
Page 11: Buttons On The Foot Controller
BUTTONS ON THE FOOT CONTROLLER 1. Program Button : Use the button to select the program. 1 stage increases per each press. 1 stage decreases when press this button above 1 second. (Program decrease function is not operated continuously. If you want to decrease program over the 2 stage, press the button after releasing the button.) 2. -
Page 12: Connection Of Each Part
CONNECTION OF EACH PART ⑤ 20:1 SETUP N.CM Torque N.cm Set up Set up ① ④ ③ ② - When connecting the motor, foot controller and power cord, please make sure the power is off. (Otherwise, it might cause a malfunction.) 1. - Page 13 4. Irrigation Tube Connection handpiece connection Saline connection Insert the irrigation tube correctly. Open the pump roller cover. Locate the Irrigation tube correctly when insert Close the pump roller cover. the irrigation tube. Otherwise, (You must close the cover and use Irrigation cannot be smoothly.
- Page 14 5. Hanger Setting : Put the hanger into the hanger hole. 6. Irrigation Tube Insertion : Insert the irrigation tube needle into the bottle and place with the bottle downward. Lock the irrigation stopper and put it between the irrigation tube needle and bottle. Irrigation tube needle Breather needle lrrigation Stopper...
- Page 15 9. Angle Handpiece Connection Handpiece & Motor connection Handpiece & Motor disconnection connection disconnection Handpiece Motor Handpiece Motor 1) Connect : Insert the groove (non-optic) or key (optic) of the angle handpiece into the pin (non-optic) or groove (optic) position of the motor handpiece 2) Disconnect : Hold the motor handpiece and pull the angle handpiece.
-
Page 16: Operation Process
OPERATION PROCESS 1. Press the Gear Ratio Button ( ) to select the gear ratio to use. 2. Press the Rotation Direction Button ( ) on the control box or Rotation Direction Button ( on the foot controller to select the rotation direction. Rotation direction is forward and reverse. During the reverse operation, it beeps continuously. - Page 17 Other Function (SETUP) Press the Menu Button ( ) to go to SETUP Menu and press the OK Button. ( Press the Control Button ( ) to the desired item. Press the OK Button ( ) in SETUP to save and return to main. 1.
- Page 18 ■ Error and Remedy : In case of stopping handpiece by not working & using error, each error code may be shown below. Error code Cause & Remedy Cause : The foot controller connection is not proper or the foot controller is defective. Warning Remedy : Make sure that the foot controller is properly connected.
-
Page 19: Maintenance Of The Product
MAINTENANCE OF THE PRODUCT 1. Cleaning ■ Angle Handpeice ① Rotate the head in a tap water about 10 seconds with maximum speed to remove the remains (blood, physiologic saline solution, etc.) and rinse. ※ Do not put tap water in the motor. ②... -
Page 20: Attention
3. Lubrication Lubrication Product List Angle handpiece Lubrication method Insert the nozzle to motor assembly part(the end part of angle) and spray lubricant 2~3 seconds. Optic type Spray Nozzle Spray Non-optic type Spray Nozzle Spray - Do not insert the oil into the motor. It damages the bearing or causes fever. - If the continuous operation, please put the oil every an hour. -
Page 21: Product Specification
PRODUCT SPECIFICATION 1) Control Box Model Name TRAUS BIP20 Input AC 220-240V Fuse Frequency 50/60 Hz Output 48VA Irrigation Volume Max. 90 ㎖ / min ± 20% 2) Motor Optic Model Name TRAUS MBP10SL TRAUS MBP10SX 40,000 40,000 Optic/Non-optic Non-optic Optic Non-optic Motor Type... -
Page 22: Electromagnetic Compatibilty Information
- Consult the manufacturer or filed service technician for help. Electromagnetic Emissions The TRAUS SIP20 is intended for use in the electromagnetic environment specified below. The customer or the user of the TRAUS SIP20 should assure that is used in such an environment. Emission test Compliance Electromagnetic environment - guide TRAUS SIP20 uses RF energy for internal operation. - Page 23 Electromagnetic Immunity The TRAUS SIP20 is intended for use in the electromagnetic environment specified below. The customer or the user of the TRAUS SIP20 should assure that is used in such an environment. IEC 60601 Emission test Compliance level Electromagnetic environment – guidance...
- Page 24 Electromagnetic Immunity The TRAUS SIP20 is intended for use in the electromagnetic environment specified below. The customer or the user of the TRAUS SIP20 should assure that is used in such an environment. IEC 60601 Immunity test Compliance level Electromagnetic environment – guidance...
- Page 25 TRAUS SIP20 The TRAUS SIP20 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the TRAUS SIP20 can help prevent electromagnetic interference by maintaining a minimum...
-
Page 26: Warranty
WARRANTY SAESHIN guarantees out product for 1 year from invoice date, and product warranty means that SAESHIN has responsibility of defective material or operation failure. The product warranty does not cover user’s misuse, wrong installation, inappropriate maintenance and repair, and normal wear of consumables such as bearings, spindle, gear, and rotator. -
Page 27: Symbol
SYMBOL Menu Button Gear Ratio Button Rotation Direction Button Control Button Irrigation Button OK Button Optic Button Consult Instruction For Use Manufacturer General Caution Sign EC Representative General Warning Sign Serial Number General Prohibition Sign Autoclave Alternating Current Power On (Main power switch) Fuse Power Off... - Page 28 Unit 3D, North Point House North point Business Park New Mallow Road CORK, T23AT2P , Ireland +353 212066448 Tel. 82-53-587-2341 / Fax. 82-53-580-0999 대구광역시 달성군 다사읍 세천로 1길 52 (성서5차산업단지) Tel. 053-587-2345 / Fax. 053-580-0918 www.saeshin.com / traus@saeshin.com SOM-S048S-E Rev.3 2022-07-27...
