Summary of Contents for SAESHIN E-CUBE PLUS

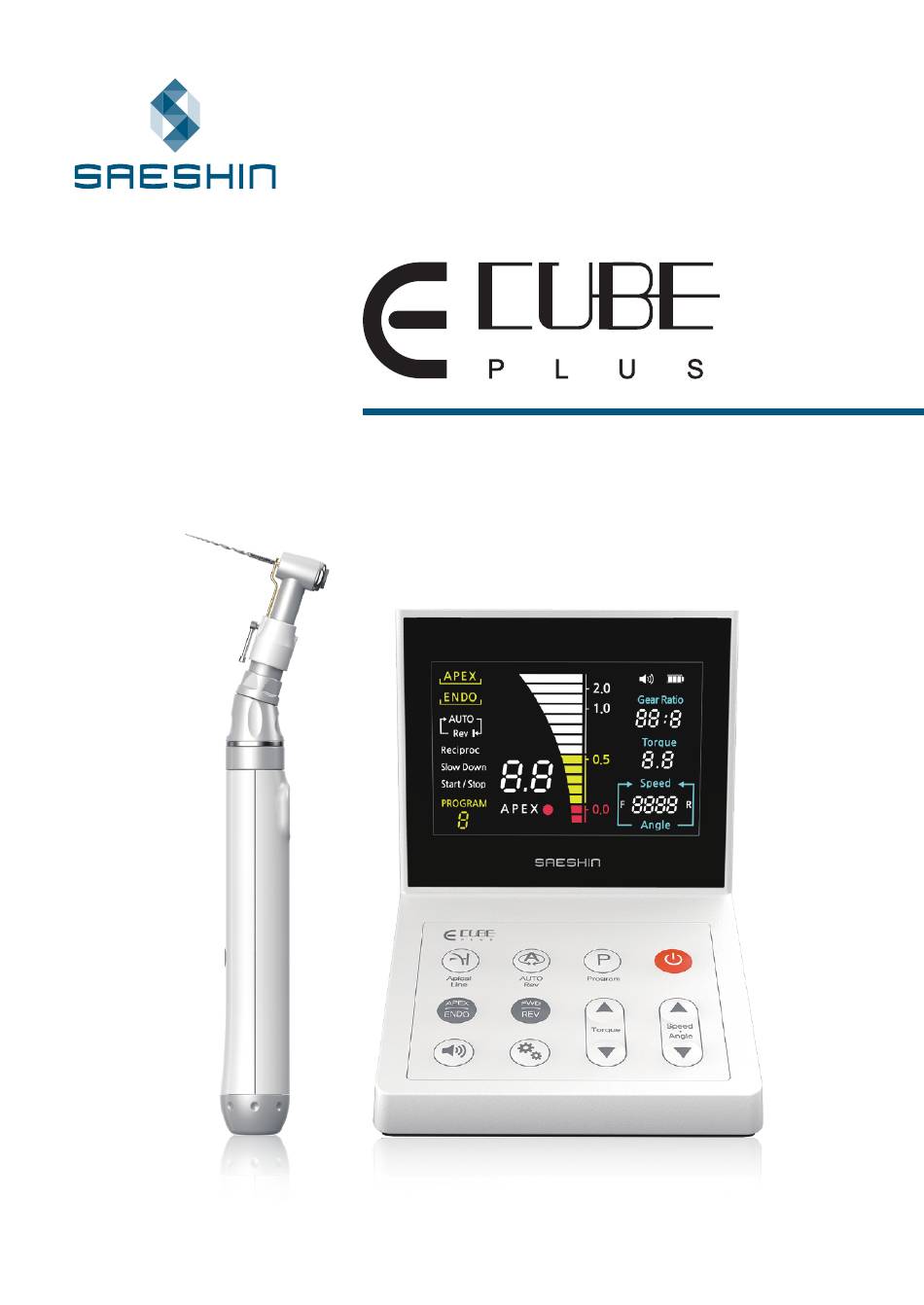

- Page 1 INSTRUCTION MANUAL www.saeshin.com...
- Page 2 INTRODUCTION USER GUIDELINES PRODUCT FEATURES PRODUCT COMPONENTS PART NAME OF CONTROL BOX BUTTONS ON OPERATION PANEL LCD WINDOW CONNECTION OF EACH PART OPERATION PROCESS MAINTENANCE OF THE PRODUCT ATTENTION PRODUCT SPECIFICATION ELECTROMAGNETIC COMPATIBILITY INFORMATION WARRANTY SYMBOL...
- Page 3 INTRODUCTION This product is medical device. Make sure to read this user manual before using. This user manual is to assure proper installation and use. Pay attention to read this user manual in order to making the best use of this product and to assure the prolonged lifespan before using.
- Page 4 USER GUIDELINES CAUTION • Please pay attention to the use considering the patient’s safety first of all. • Check condition of the product before use. • Stop to use and inspect the product when an abnormal sign such as calescence, vibration or noise occurs before or during operation.
- Page 5 PROHIBITION • Do not use damaged or broken power cord, plug, and outlet. It may cause fire and electric shock. • When unplug the power cord, hold the plug and do not touch with wet hand. Do not use loose power cord, it may cause electric shock and fire.
- Page 6 PRODUCT FEATURES < Endo Mode > - Max. RPM : 10:1 16:1 20:1 10,000 RPM 3,250 RPM 1,300 RPM 800 RPM 650 RPM - The free-running speed of the handpiece shall be in accordance with the manufacturer’s instructions at a tolerance of ±10 % as specified. (Refer to ISO 14457) - Max.
- Page 7 PRODUCT COMPONENTS * Please check all components are included. ① ⑧ ② ⑨ ③ ⑩ ④ ⑪ ⑤ ⑫ ⑥ ⑬ ⑦ ⑭ COMPONENTS COMPONENTS Control Box Probe Cord Adaptor and AC Power Cord Lip Hook Angle Handpiece (Option) File Clip Motor (Option) Connecting Cord Motor Stand...
- Page 8 BUTTONS ON THE OPERATION PANEL Power Button : Push the power button over the 3 seconds, power is turned on/off. Apex/Endo Button : Use for selecting the apex or the endo mode. Auto Reverse Button : Use for setting the automatic reverse mode. Three modes can be selected. Operation Direction Button : Use for selecting the rotary direction.
- Page 9 LCD WINDOW 1. Working Mode Display : It shows the currently selected working mode. There are three working modes: APEX, ENDO and APEX+ENDO (combination). 2. Automatic Reverse Display : It shows the selected automatic reverse direction mode. 3. Special function of Working Mode : When using the ENDO and APEX+ENDO mode, programs 8 and 9 are in reciprocating mode and “Reciproc”...
- Page 10 CONNECTION OF EACH PART...
- Page 11 1. Motor Connection : Please insert the pins of motor cord to the holes position of control box carefully. - To remove the motor, hold the plug ring and pull it out. 2. Probe Cord Connection : Connect the file clip and lip hook to the probe cord respectively. Connect the Micro USB terminal of the probe cord to the probe connector of the main controller.
- Page 12 < Handpiece Connection> ① Remove the rubber cap on the back of the motor handpiece and fit the cord clip. ② Mount the angle handpiece to the motor handpiece. ③ Connect the connecting cord to the file clip holder. At this time, insert the connecting cord into the file clip holder with 3 o'clock or 9 o'clock directions and rotate 90°...
- Page 13 5. Angle Handpiece Connection : Please insert the angle handpiece to motor until ‘click’ sound after arrange the angle handpiece positioning pin and motor positioning slot. To separate the angle handpiece and motor, pull out the angle handpiece to its axis side. 6.
- Page 14 OPERATION PROCESS (ENDO MODE) 1. Turn on the control box by pressing the power button over the 3 seconds. 2. Press the APEX/ENDO button to set to ENDO mode . 3. Select the program number by pressing the program button. 4.
- Page 15 <RECIPROCATING> - The motor reciprocates rotation in the forward and reverse directions according to each set angle ratio. ① Press to enter the Reciprocating Mode in program 8 and 9. ② Press to set the angle ratio (30°, 60°, 90°, 120°, 150°, 180°, 210°, 240°, 270°). ③...
- Page 16 OPERATION PROCESS (APEX MODE) 1. Turn on the control box by pressing the power button over the 3 seconds. Press APEX/ENDO button to set APEX mode 2. Press Apical Line button to change Apical Line value. 3. Hang the lip hook on the patient's lips. 4.
- Page 17 <AUTO START/STOP> - If you long press the Apical Line button once, is displayed and the AUTO START/STOP function is executed. - When the apex measurement starts, the motor starts to rotate automatically, and when the measurement is inished, the motor stops. (Available only in APEX+ENDO mode) <AUTO SLOW DOWN>...
- Page 18 2. Lubrication ■ Lubrication product list • Angle handpiece ① Insert the spray nozzle to motor assembly part (the end part of angle) and spray lubricant 2~3 seconds. ② Insert the nozzle tip to head part and spray lubricant 2~3 seconds. •...
- Page 19 Battery Replacement Method ① Remove the adaptor after turning off the control box. ② Open the rear battery cover. ③ Insert the replaceable battery to right direction. ④ Close the battery cover. ⑤ Charge the battery in order to use. ①...
- Page 20 2) Motor Problem Cause Remedy The motor cord is not connected Check the connection. to the control box. Use the foot controller without Check the connection. the connection. The handpiece does not rotate. The motor cord is broken or Contact the manufacturer. motor is malfunctioning.
- Page 21 PRODUCT SPECIFICATION 1. Control Box Model Name E-CUBE-Plus Input DC 20 V, 1.5A Output DC 6 V (Max) Charging Time Approx. 3 hours 30 minutes 2. Motor Model Name CUBE EP CUBE EP Plus Rated Input DC 6 V (0~6 V) Max.
- Page 22 ELECTROMAGNETIC COMPATIBILITY INFORMATION In IEC/EN 60601-1-2 4th edition. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation. This equipment generates, use and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to other devices in the vicinity.
- Page 23 Electromagnetic Immunity The E-CUBE-Plus is intended for use in the electromagnetic environment specified below. The customer or the user of the E-CUBE-Plus should assure that it is used in such an environment. IEC 60601 Emission test Compliance level Electromagnetic environment – guidance test level Electrostatic discharge (ESD) Floors should be wood, concrete or ceramic tile.
- Page 24 Electromagnetic Immunity The E-CUBE-Plus is intended for use in the electromagnetic environment specified below. The customer or the user of the E-CUBE-Plus should assure that is used in such an environment. IEC 60601 Immunity test Compliance level Electromagnetic environment – guidance test level 3 Vrms 3 Vrms...
- Page 25 Recommended separation distances between portable and mobile RF communications equipment and the E-CUBE-Plus The E-CUBE-Plus is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the E-CUBE-Plus can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the E-CUBE-Plus as recommended below, according to the maximum output power of the communications equipment Separation distance according to frequency of transmitter (m)
- Page 26 WARRANTY SAESHIN guarantees out product for 1 year from invoice date, and product warranty means that SAESHIN has responsibility of defective material or operation failure. The product warranty does not cover user’s misuse, wrong installation, inappropriate maintenance and repair, and normal wear of consumables such as bearings, spindle, gear, and rotator.
- Page 27 SYMBOL Power Button Speed/ Reciprocating Angle Ratio Button APEX/ENDO Button Auto Reverse Button Torque Button Operation Direction Button Program Button Gear Ration Button Apical Line Button Manufacturer Volume Button EC Representative Consult Instruction for Use. Serial Number General Caution Sign Autoclave General Warning Sign Type B...
- Page 28 Unit 3D, North Point House North point Business Park New Mallow Road CORK, T23AT2P , Ireland +353 212066448 Tel. 82-53-587-2341 / Fax. 82-53-580-0999 대구광역시 달성군 다사읍 세천로 1길 52 (성서5차산업단지) Tel. 053-587-2345 / Fax. 053-580-0918 www.saeshin.com / traus@saeshin.com SOM-S007S-E Rev.0 2022-01-27...
