aspenhome
ah
ITEM NO: ICF-371T
ICF-371B
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
ICF-371T
HARDWARE LIST: ICF-371B
Description
No.
A Bolt Ø1/4"*7/8"
Lock Washer Ø1/4"
B
Flat Washer Ø1/4" *5/8"
C
D Allen Wrench 4MM
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/3
R

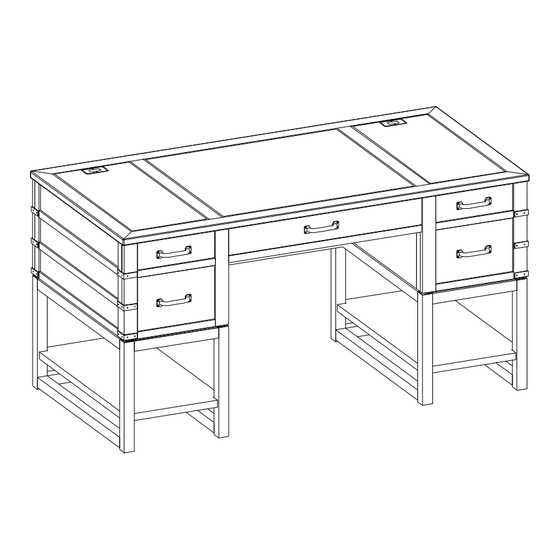

61" Half Ped Desk Top
61" Half Ped Metal feet
ICF-371B
Quantity
Sketch
12 PCS
12 PCS
12 PCS
1 PC
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
COMPONENTS LIST: ICF-371T
Description
No.
Desk Top
1
COMPONENTS LIST: ICF-371B
Description
No.
1
Left Pedestal
Right Pedestal
2
3
Metal Stretcher
Quantity
Sketch
1 PC
Quantity
Sketch
1 PC
1 PC
1 PC
06-30-2016
Advertisement
Related Manuals for aspenhome ICF-371T
Summary of Contents for aspenhome ICF-371T
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: ICF-371T 61" Half Ped Desk Top ICF-371B 61" Half Ped Metal feet Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment.
- Page 2 ASSEMBLY INSTRUCTIONS ITEM NO: ICF-371T 61" Half Ped Desk Top ICF-371B 61" Half Ped Metal feet STEP 1: Attach the metal stretcher to pedestals by using 2 bolts(A), lock washers(B) and flat washers(C). Do not completely tighten bolts to allow some leeway for adjustment in STEP 2.
- Page 3 ASSEMBLY INSTRUCTIONS ITEM NO: ICF-371T 61" Half Ped Desk Top ICF-371B 61" Half Ped Metal feet FUNCTIONALITY INSTRUCTION Flip down keyboard tray Locking file drawers hold letter or legal size files Adjust the leveler Leveler on feet when necessary...
