ITEM NO: I631-6030
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
FUNCTIONALITY INSTRUCTION
Leaf
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/3
R

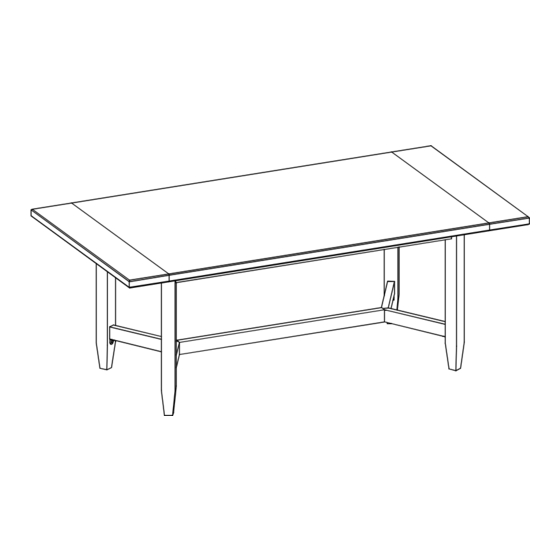

Ext Trestle Dining Table
Option 1
Option 2
Leveler on Legs
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
HARDWARE LIST:
Description
No.
Hex Bolt Ø5/16" x 2"
A
Lock Washer Ø5/16"
B
Flat Washer Ø5/16" x 3/4"
C
Hex Wrench 12mm
D
Bolt Ø1/4" x 3/4"
E
Lock Washer Ø1/4"
F
Flat Washer Ø1/4" x 3/4"
G
H
Allen Wrench 4mm
I
Metal Bracket
COMPONENTS LIST:
Description
No.
Table Top
1
Leg
2
3
Wood Stretcher
4
Leaf
Leaf
Adjust the leveler
when necessary
Quantity
Sketch
8 PCS
8 PCS
8 PCS
1 PC
8 PCS
8 PCS
8 PCS
1 PC
4 PCS
Quantity
Sketch
1 PC
4 PCS
1 PC
2 PCS
07-17-2023
