aspenhome ICB-492 Assembly Instructions

aspenhome
ITEM NO: ICB-492-BCH/BLK/EGG/GRY-KD-1
ICB-402L-BCH/BLK/EGG/GRY-1
ICB-403D-BCH/BLK/EGG/GRY-1
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
ICB-492
ICB-402L

HARDWARE LIST: ICB-492

Description
No.
A Bolt Ø5/16"*1-3/4"
B Lock Washer Ø5/16"
C Flat Washer Ø5/16"
D Allen Wrench 5mm

HARDWARE LIST: ICB-402L

Description
No.
E Wood Screw
F Allen Wrench 4mm

HARDWARE LIST: ICB-403D

Description
No.
G Bolt Ø1/4"*1-3/4"
H Bolt Ø1/4"*1-1/4"
I Lock Washer Ø1/4"
J Flat washer Ø1/4"
K Wood Screw #8*1"
L Wood Screw #8*1-1/2"
M Allen Wrench 4mm
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/5
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
ICB-403D
Sketch Quantity
8 PCS
8 PCS
8 PCS
1 PC
Sketch Quantity
8 PCS
1 PC
Sketch Quantity
6 PCS
4 PCS
10 PCS
10 PCS
8 PCS
5 PCS
1 PC
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R

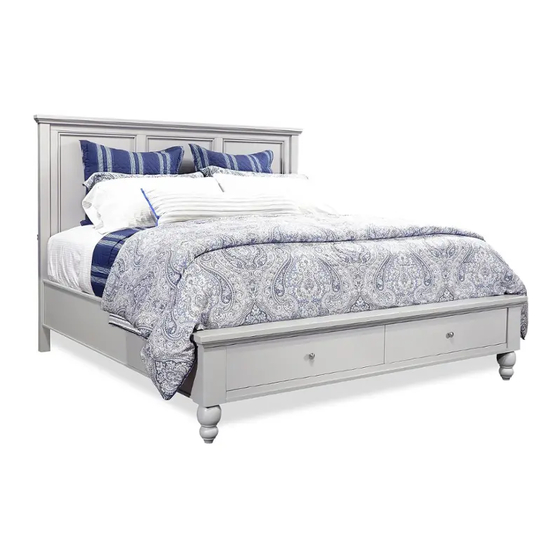

Queen Framed Panel HB
Queen Side Rails
Queen LP FB w/Drawers
All Beds need to be set up in the exact final
location so that after full assembly it will not
need to be moved. Moving the bed will cause
the support legs to move out of perpendicular
(90 degree), weaken the support system, and
may allow the bed to collapse.

TOOLS REQUIRED (NOT PROVIDED)

PHILLIPS SCREWDRIVER

COMPONENTS LIST: ICB-492

Description
No.
1 Headboard
2 Left Leg
3 Right Leg
4 Wood Stretcher

COMPONENTS LIST: ICB-402L

Description
No.
1 Bed rails
2 Slats

COMPONENTS LIST: ICB-403D

Description
No.
1 Footboard
2 Support Leg (for center rail)
3 Support Leg (for pedestal)
4 Decking
5 Center Rail
6 Bun Foot
7 Support Panel
Sketch Quantity
1 PC
1 PC
1 PC
1 PC
Sketch Quantity
2 PCS
4 PCS
Sketch Quantity
1 PC
1 PC
2 PCS
4 PCS
1 PC
2 PCS
2 PCS
10-26-2017
