I ACC set mode

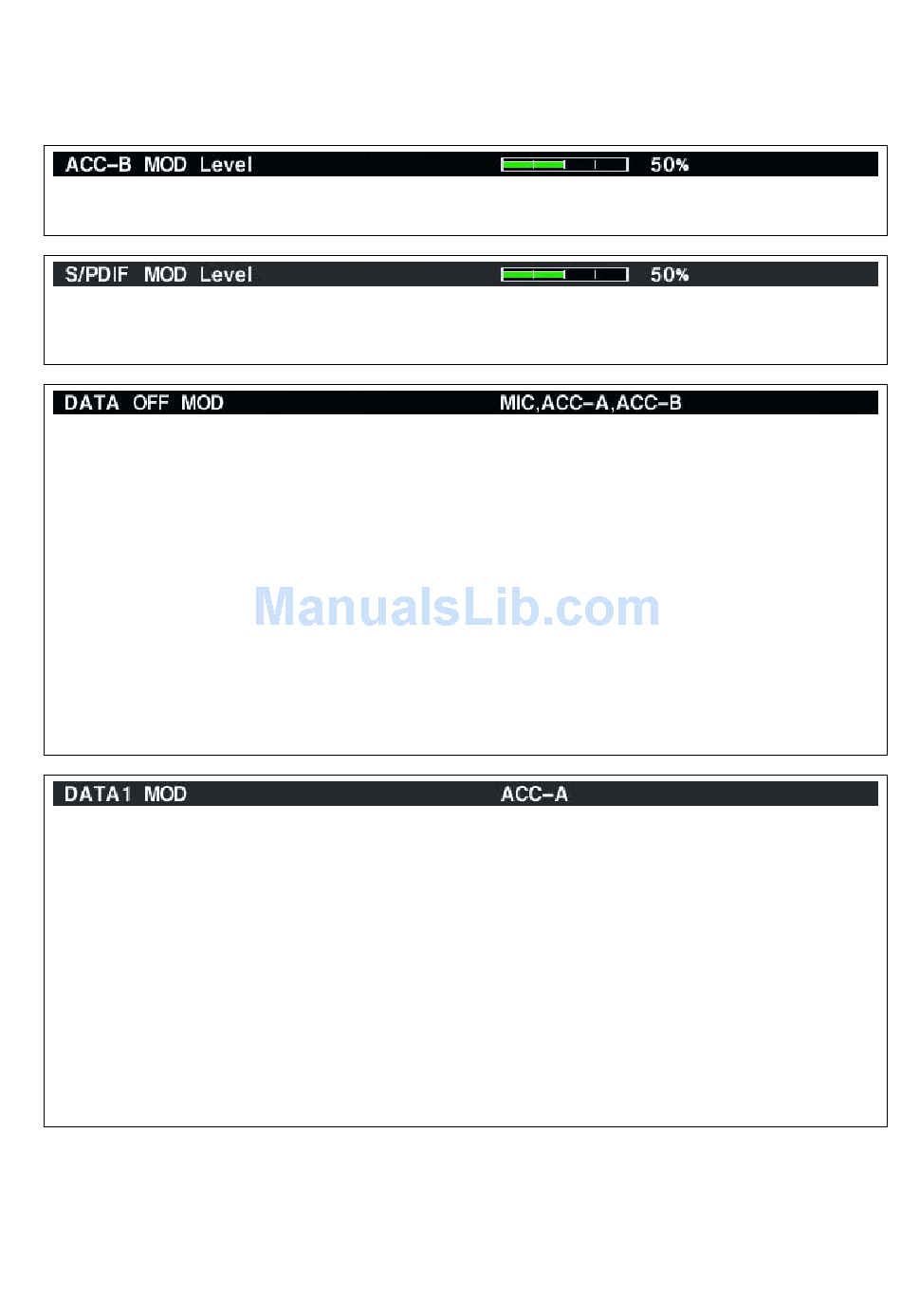

Sets the desired audio input level for modulation from
[ACC1–B].
Sets the desired input level for modulation from
[S/P DIF], within 0 to 100% in 1% steps.
(default: 50%)
Selects the desired connector(s) for modulation input
when data mode is not in use.
Selects the desired connector(s) for modulation input
when data 1 mode (D1) is in use.
(continued)
• Approx. 100 mV at 50% (default) setting.
• MIC : Use the signals from [MIC].
• ACC-A : Use the signals from [ACC1–A]
• ACC-B : Use the signals from [ACC1–B]
• MIC,ACC-A : Use the signals from [MIC] and
• MIC,ACC-B : Use the signals from [MIC] and
• ACC-A,ACC–B : Use the signals from [ACC1–A]
• MIC,ACC-A,ACC–B
: Use the signals from [MIC],
• S/P DIF : Use the signals from [S/P DIF].
• MIC : Use the signals from [MIC].
• ACC-A : Use the signals from [ACC1–A]
• ACC-B : Use the signals from [ACC1–B]
• MIC,ACC-A : Use the signals from [MIC] and
• MIC,ACC-B : Use the signals from [MIC] and
• ACC-A,ACC–B : Use the signals from [ACC1–A]
• MIC,ACC-A,ACC–B
: Use the signals from [MIC],
• S/P DIF : Use the signals from [S/P DIF].
12-7
SET MODE
(pin 4).
(pin 4).
[ACC1–A] (pin 4).
[ACC1–B] (pin 4).
and [ACC1–B] (pin 4).
[ACC1–A] and [ACC1–B] (pin 4).
(default)
(pin 4). (default)
(pin 4).
[ACC1–A] (pin 4).
[ACC1–B] (pin 4).
and [ACC1–B] (pin 4).
[ACC1–A] and [ACC1–B] (pin 4).
12
