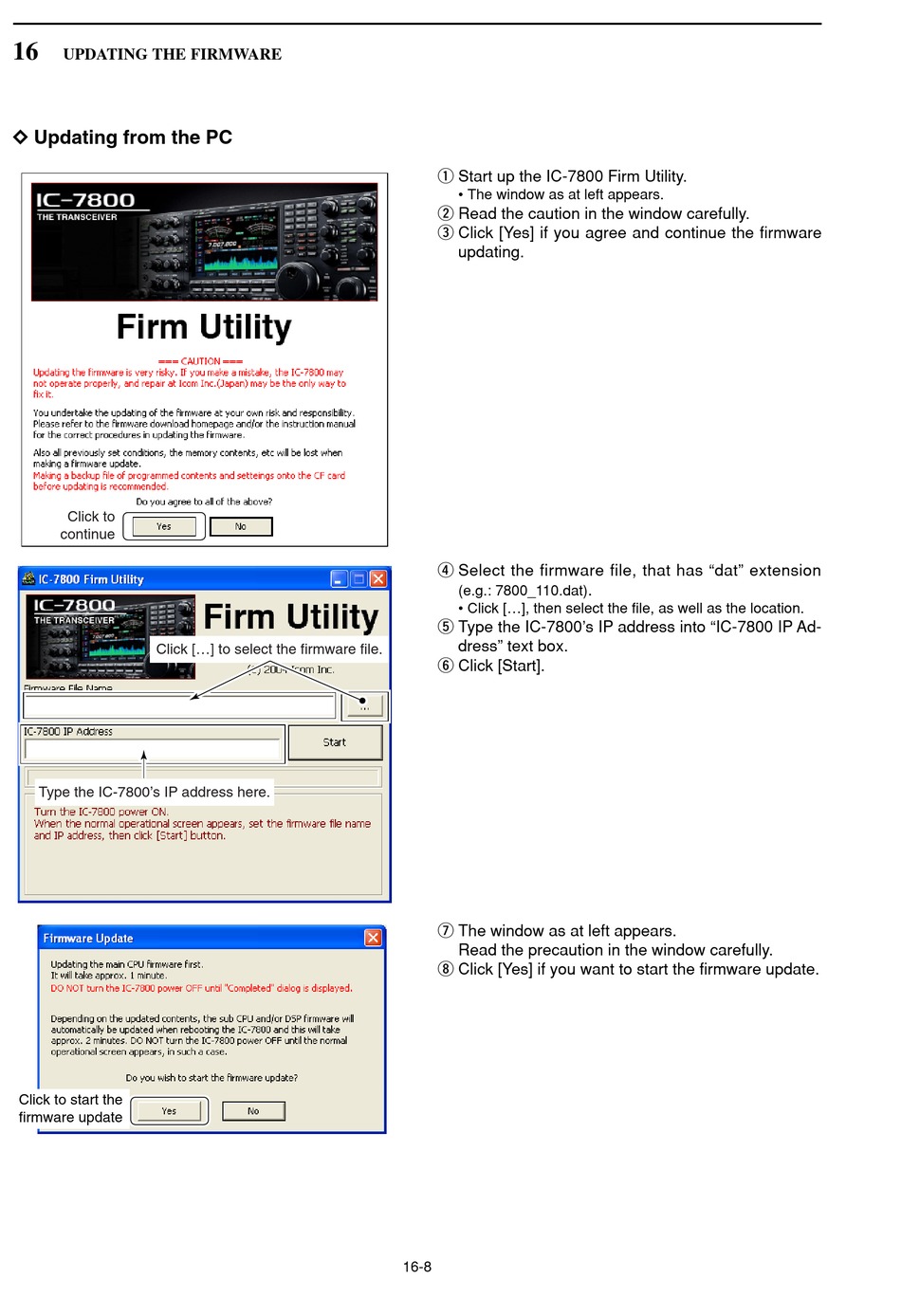

D Updating From The Pc - Icom IC-7800 Instruction Manual

16
UPDATING THE FIRMWARE
D D Updating from the PC
Click to
continue
Click [...] to select the firmware file.
Type the IC-7800's IP address here.
Click to start the
firmware update
q Start up the IC-7800 Firm Utility.
• The window as at left appears.
w Read the caution in the window carefully.
e Click [Yes] if you agree and continue the firmware
updating.
r Select the firmware file, that has "dat" extension
(e.g.: 7800_110.dat)
• Click [...], then select the file, as well as the location.
t Type the IC-7800's IP address into "IC-7800 IP Ad-
dress" text box.
y Click [Start].
u The window as at left appears.
Read the precaution in the window carefully.
i Click [Yes] if you want to start the firmware update.
16-8
.
